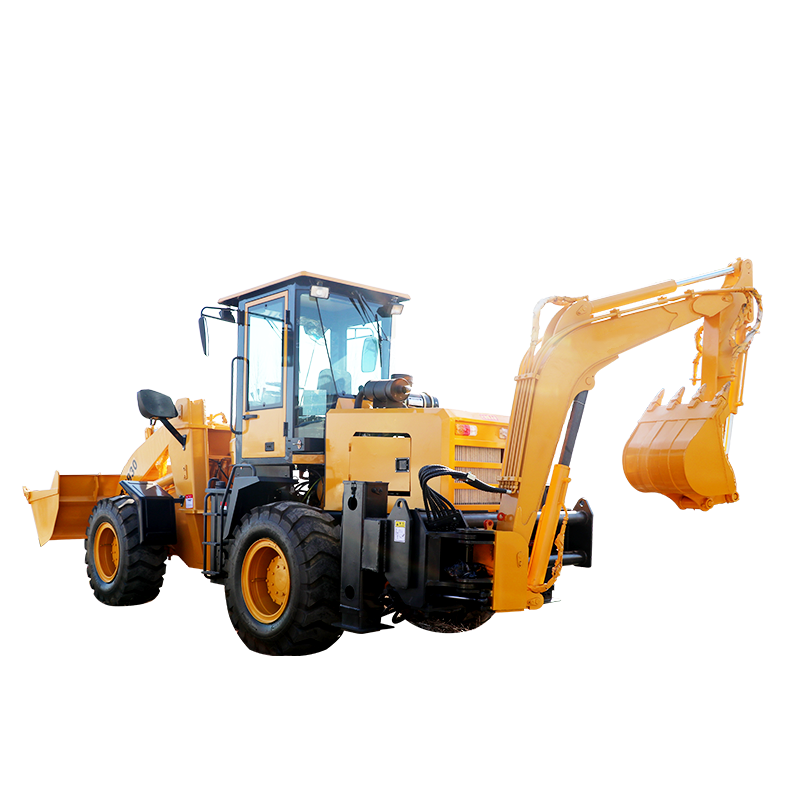

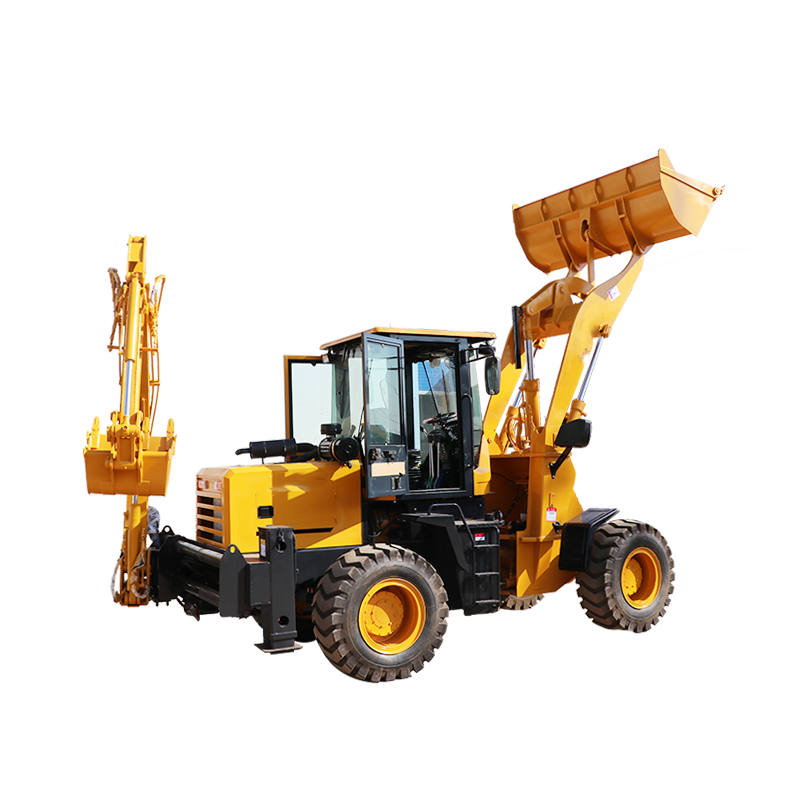

SYNBON Backhoe Loader SY746
Description
Operating weight 4800kg
Bucket Capacity 0.2m3
Power 76kW
Overall size 6200*1960*2800mm
Condition:
suitable for concrete pavement broken, sand and stone material mixing and small space construction operations, reducing maintenance and operating costs, improving the degree of mechanization. With multiple functions of digging, grabbing, drilling, bull-dozing, ditch-cleaning and rock-brea
Optional attachments: Auger,Grapper,Ripper, Rake,Hammer, 200mm Bucket,800mm Bucket, Plain Bucket ,Quick change
Features & Details
Packaging and Shipping
1unit in 20GP Container, 2units in 40HC container
Benefits and Features
1.Increased the cab with safety glass, bright and spacious.
2.Working table, water temperature, oil temperature, current, can see clearly at a glance.
3.Reasonable fuel tank, convenient to refuel.
4.Using brand-name hydraulic parts,the main pump has a long life and high working efficiency.
5.Adjustable seat, easy to use, comfortable.
6.Hydraulic steering, easy to operate, convenient.
7.Hydraulic walking system, using domestic famous brand piston motor, mechanical stepless gears.
Specifications
Item | Unit | Parameter |
Model | Backhoe | SY746 |
L*W*H | mm | 6200*1960*2800 |
Overall Weight | kg | 5400 |
Rated Bucket Capacity | m3 | 0.2 |
Loading Bucker Capacity | m3 | 1.0 |
Max. Digging Depth | mm | 2600 |
Max. Digging Height | mm | 2300 |
Max. Digging Radius | mm | 4600 |
Turning Angle of Movable Arm | ° | 180 |
Rise Height | mm | 3500 |
Unloading distance | mm | 900 |
Rated Loading Weight | kg | 2800 |
Comprehensive Time | S | 12 |
Brand | SYNBON | |
Engine Model | Yunnei | |
Rated Power of Engine | KW | 76 |
Rated speed | r/min | 2400 |
Work Pressure | Mpa | 18 |
Max. Grade Ability | % | 25 |
Walking Speed | km/h | 28 |
Min. Ground Clearance | mm | 290 |
Wheel Base | mm | 1580 |
Tread | mm | 2550 |
Tire model | mm | 16/70-20 |
