COMPACTOR

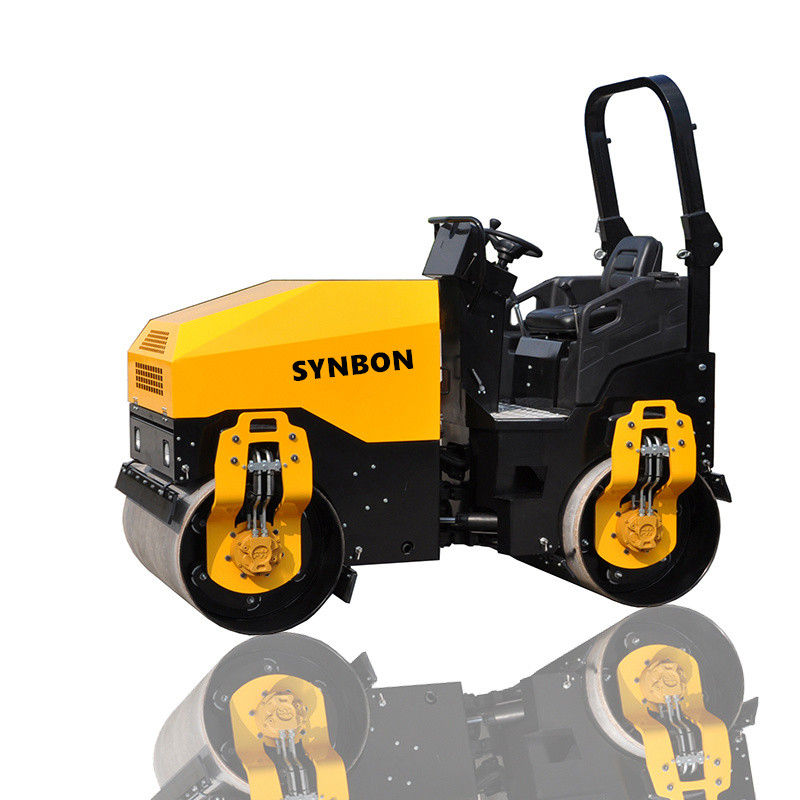

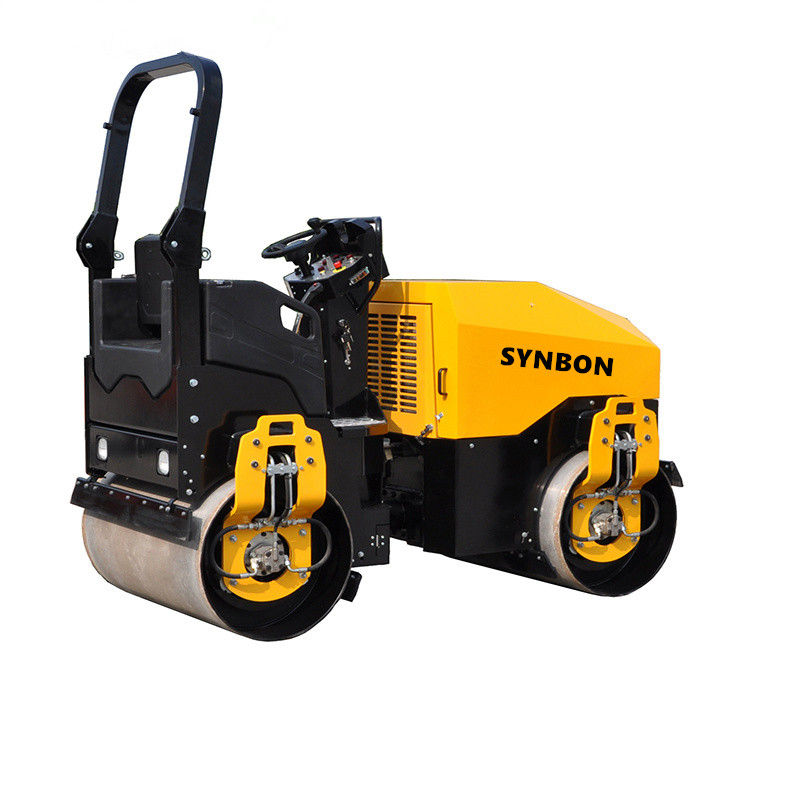

SYNBON vibratory road roller SY203H

3ton double steel drum double driver hydraulic vibratory road roller

Description

Working weight 3100kg

Power 24kw

Overall size 2495* 1310*2440mm

Condition:

The machine is mainly used to compress on the asphalt, sand soil and gravel. It is also used to compress on track in the school and planish the lawn.


Double steel drum double driver hydraulic vibratory
Get a quote

Features & Details

main feature:

The machine is mainly used to compress on the asphalt, sand soil and gravel. It is also used to compress on track in the school and planish the lawn.


Product characteristics

USA hydraulic pump and motor drive, electromagnetic clutch, mechanical steering.

1.China top brand Honda gasoline engine

2. American hydraulic pump and motor drive the front drum stepless speed walking.

3. Plastic water tank free from corrosion and convenient for water-spraying.

4. Electromagnetic clutch, integrated control lever, easy to operate.

5. Water-spraying electrically controlled, user-friendly.

6. Foldable Roller Over Protection System.

7. LED lamp at front and rear for the convenience of night construction



Specifications

Speed0-12km/h
Steering radius2600mm
Climbing capacity in theory40%
Compaction
Static load forward/back125/115 N/cm
Nominal amplitude0.5mm
Vibration frequency60Hz
Exciting force2*30kN( double drums)
Water tank volume200L

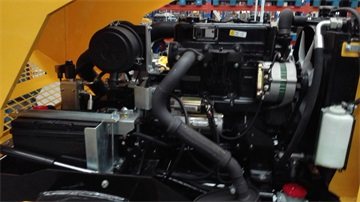

Engine
ModelChangchai N385Q
TypeDiesel engine, liquid cooled, 4 stroke, three cylinder
Power24kw/2800rpm
Fuel tank volume40L
Lubricant 6L
Fuel consumption276g/kw/h
Dimension
Width of steel drum1200mm
Diameter of steel drum700mm
Tread1760mm
Overall size(L*W*H)2495* 1310*2440mm
Packing size2810*1450*1950mm
Weight
Working weight3100kg
