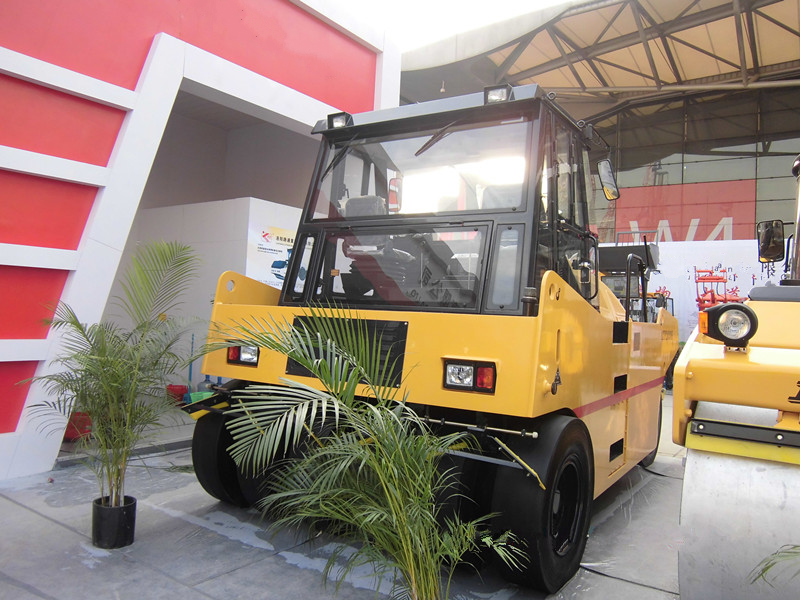

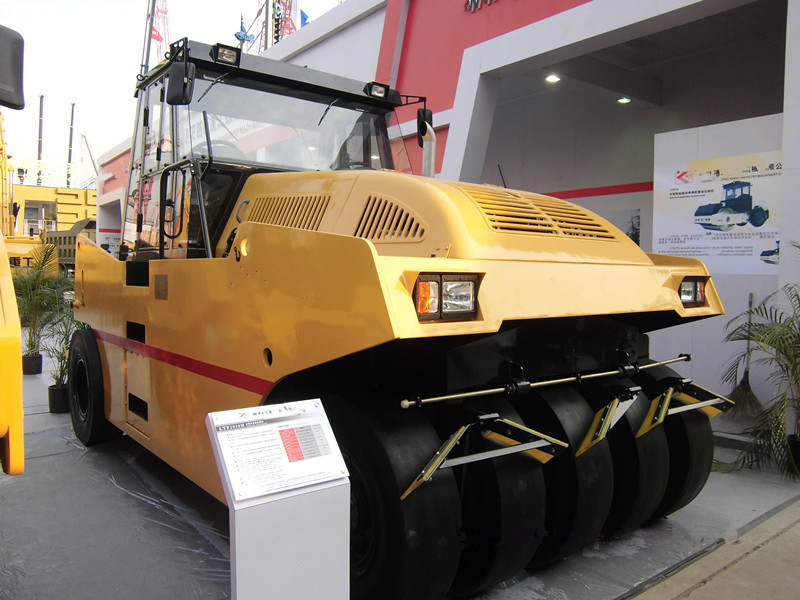

SYNBON vibratory pneumatic tyre roller SP305
Description
Operating mass 3000kg
Power 125kw
Overall size 4950*2800*3240mm
Condition:
asphalt concrete, cement or lime stabilized soils, gravels, sands and clay mixtures, Rolling Cement Concrete(PCC)in the construction projects, especially suitable for the preparation of the upper courses
Top quality compaction is achieved by the kneading and rolling effect of the wheels as vertical pressure combined with horizontal forces produce an excellent, uniform surface finish.
Features & Details
SP305 Pneumatic tire roller series are designed for the compact cohesive and non-cohesive materials, such as asphalt concrete, cement or lime stabilized soils, gravels, sands and clay mixtures, Rolling Cement Concrete(PCC)in the construction projects, especially suitable for the preparation of the upper courses of high grade highway.
Main Features
▲SP305 low gravitational center designed for safe and comfortable operation.
▲SP305 adopt CUMMINS 6BTA diesel engine. Powerful strength, which is suitable to all environments.
▲Three forward speed and two backward changes. Glass fiber reinforced plastic spraying box and multi-layer water
▲filter ensure the stability of the system.
▲Front wheel with automatic adjusting Heating structure to perform better compactness.
Specifications
| Model | SP305 | |
| Operating mass | 30000 | Kg |
| Max travl speed | 20.64 | km/h |
| Type quantity | 5 6 | mm |
| Min turning radius | 8000 | mm |
| The presses width | 2790 | kN |
| Grade ability | 30 | % |
| Overall dimension | 4950*2800*3240 | mm |
| Wheelbase | 3800 | mm |
| Diesel power | 125 | kw |
| Diesel model | CUMMINS 6BTA5.9 | |
