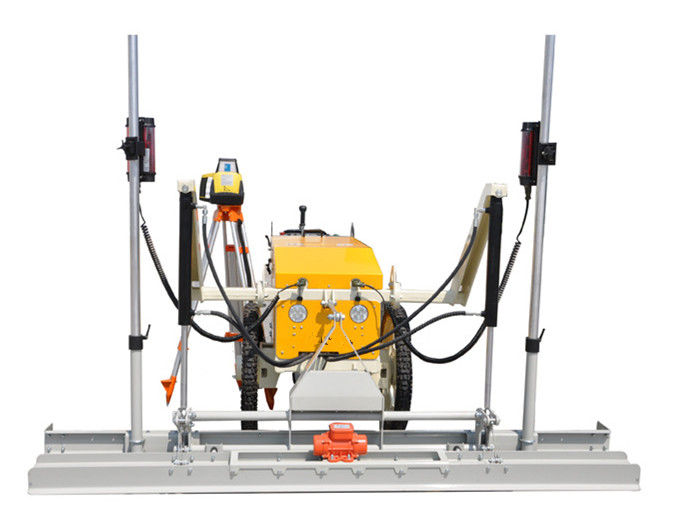

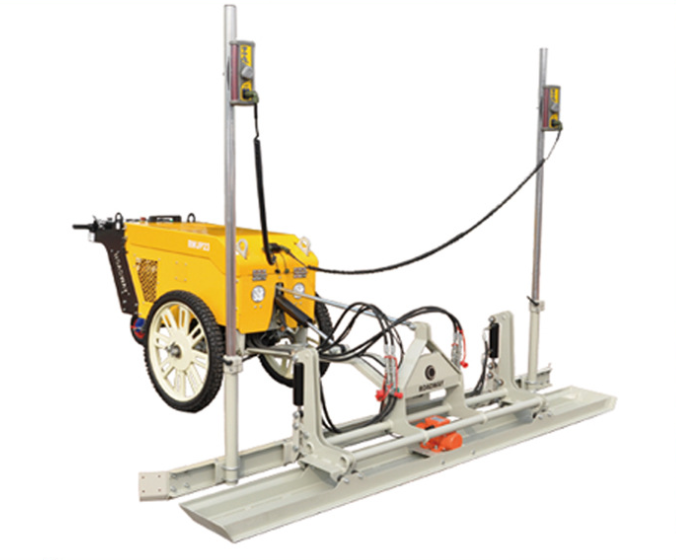

SYCS21 Electro-hydraulic concrete laser screed
Description
Engine HONDA Generator
Power 2.0KW
Overall size 2758*2622*1980mm
Condition:
Hand-held laser concrete screed machine is used in large area concrete construction, such as workshop, supermarket, warehous, airport, playground and so on. This machine can satisfy the construction requirements of large area and high planeness and levelness.
The laser control system can monitoring the height of floor by laser feedback adjusting. This ensures the level flatness,dense and homogeneous of the floor.
Features & Details
1) Laser screed can pave the concrete base,trowel the concrete and vibrate it to smooth. The work efficiency will be improved because the machine can set the height of elevation automatically, and the operator can finish the working area fast and efficiency.
2) This product is small, light, easy to operate, with reasonable price.
3) Adopts imported Leica laser transmitter and Moba receiver, which have good performance. somero laser screed
4) Two kinds of tyres optional: Solid Tire or Beach Tire s
|
|
|
|
|
|
|
|
|
|
|
|
Specifications
| Engine | |
| Model | HONDA Generator(Able to connect with external electric source) |
| Power | 2.0KW |
| Fuel tank | 14.5L |
| Walking device | |
| Driving | Electric motor |
| Running type | Electric control, stepless speed |
| Running speed | 0-36m/min |
| Working speed | 5m/min |
| Screed head | |
| Type | Electric control, self-leveling |
| Width | 2500mm(standard)/ |
| 2000mm(optional) | |
| Exciting force | 500N |
| Vibration Frequency | 50HZ |
| Laser control system | |
| Control type | Microcomputer control |
| Size and weight | |
| Outline dimension | 2758*2622*1980mm |
| Weight: | 295kg |
