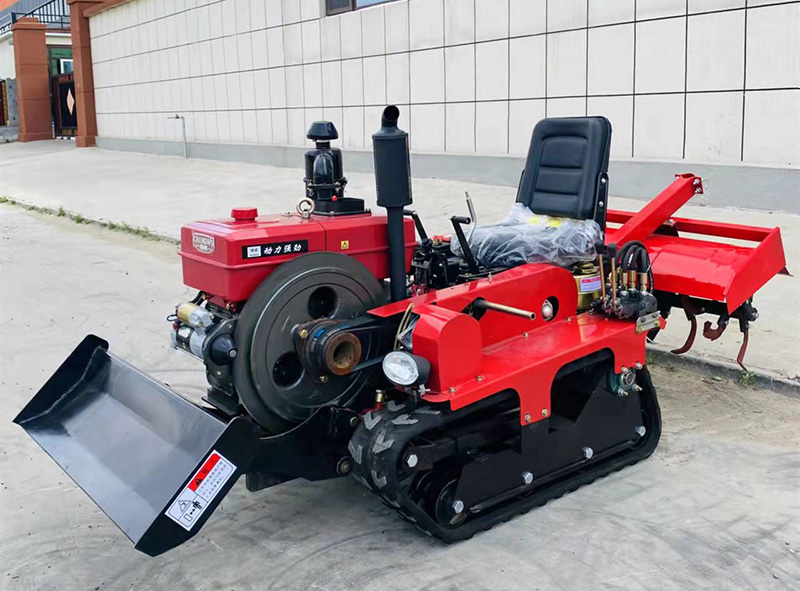

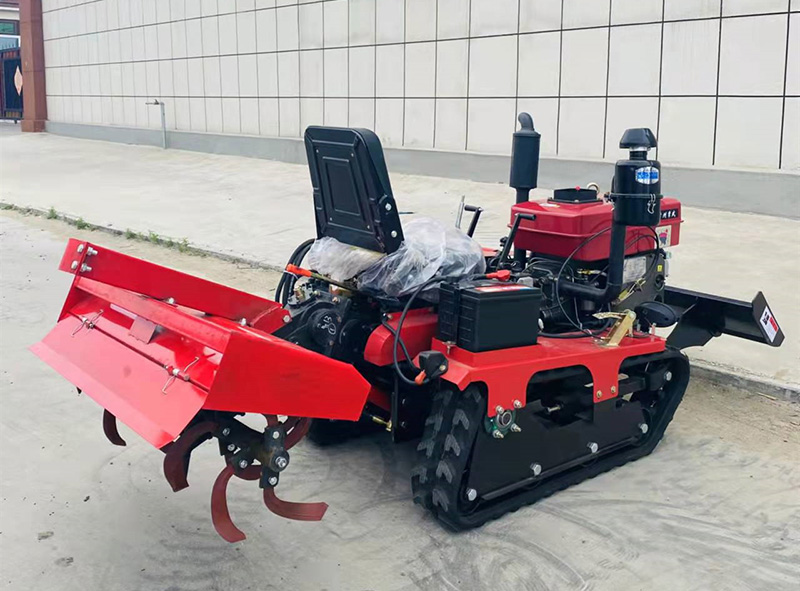

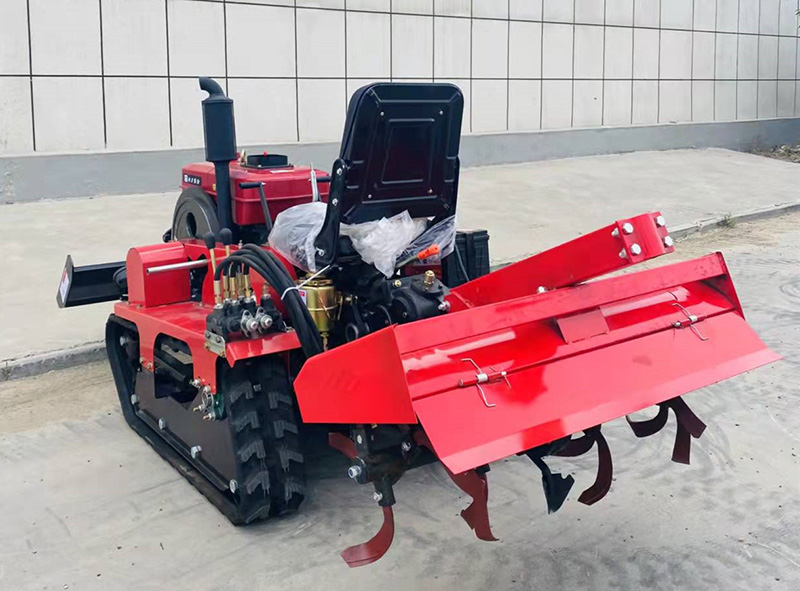

SYNBON 25HP Crawler Rotary Cultivator SY254C
Description
Condition:
It can be turned in place and is widely used in orchards, farmland, gardens, courtyards and other places.
Standard configuration: Rotary tiller,weeding,Backfill,Ditch,Bulldozer
Features & Details
Packaging&Shipping
16 sets in 1*20GP container,30 sets in 1*40HQ container
1. The engine needs to add oil: 5L
2. Fuel tank capacity: 10L
3. Need to add gear oil: 5L
4. Need to add hydraulic oil: 5L
5. Precautions for product maintenance: After the machine has been working for 20 hours, the oil of the whole vehicle must be changed. The rotary tiller must be filled with gear oil, and the diesel tank must be filled with diesel. After each work, the air filter must be cleaned and an appropriate amount of engine oil must be added. The engine is of the "burning pot" type, the higher the water temperature in the water tank, the greater the power, so you need to add water from time to time
Specifications
Name | 25HP Crawler Rotary Cultivator |
Model | SY254C |
Horsepower | 25 HP/ 18.4kw |
Dimensions | Length 2350mm Width 980mm Height 1150m |
Track size | Length 72*36 Width 180mm |
Diesel Engine Brand | Changzhou engine |
Engine speed | 2200 rpm backfilling soil width 1m |
Whole machine weight | Approximately 750 kgs |
Fuel consumption | About 1 liter/mu |
Walking speed | The fastest 15KM/h |
Gearbox | Customized version of pure gear transmission |
Gear | 3 forward gears, one reverse gear, divided into high and low speeds, a total of 8 gears |
track | The crawler track has strong gripping ability, suitable for small-scale operations such as orchards, greenhouses, woods, etc. It is composed of rubber + five-layer steel wire + iron skeleton, which is not easy to deviate and not easy to derail. Reasons (1. with guide rail 2. with added profile) |
air filter | Clean the air filter after each work, and add proper amount of engine oil |
Water tank | Water should be added at 3/1 of the water drift, otherwise it is easy to damage the machine parts and reduce the service life |
transfer method | Gearbox mechanical transmission |
Standard configuration implement | |
Rotary tiller | Rotary tiller width 1m, rotary tiller blade length 1950mm |
weeding | Weeding width 1m scraping the ground and weeding |
Backfill | Soil width 1m |
Ditch | The trench width is 30cm, the depth is 30cm |
Bulldozer | Shovel width 1m high 30cm, maximum ground clearance 25cm |
Work efficient | Normally about 1-2 acres/hour |
Optional configuration implement | |
Fertilize | All-in-one fertilizing, ditching and backfilling machine, the depth of 0-20CM is the deepest, the fertilizing bucket can hold about 30 kg of fertilizer |
ridging | The upper ridge surface is up to 50CM, the lower ridge surface is up to 80CM, and the ridge surface is up to 30CM. You can also adjust the ridge surface and height and width according to your needs. |
Double plough | Two plows and traction frame |
Broken grass back to the field | The width of the machine is 0.8-1.2 meters, (stalk can be crushed) |
Sprayer | The spray diameter is 15 meters, each nozzle can be adjusted independently |
