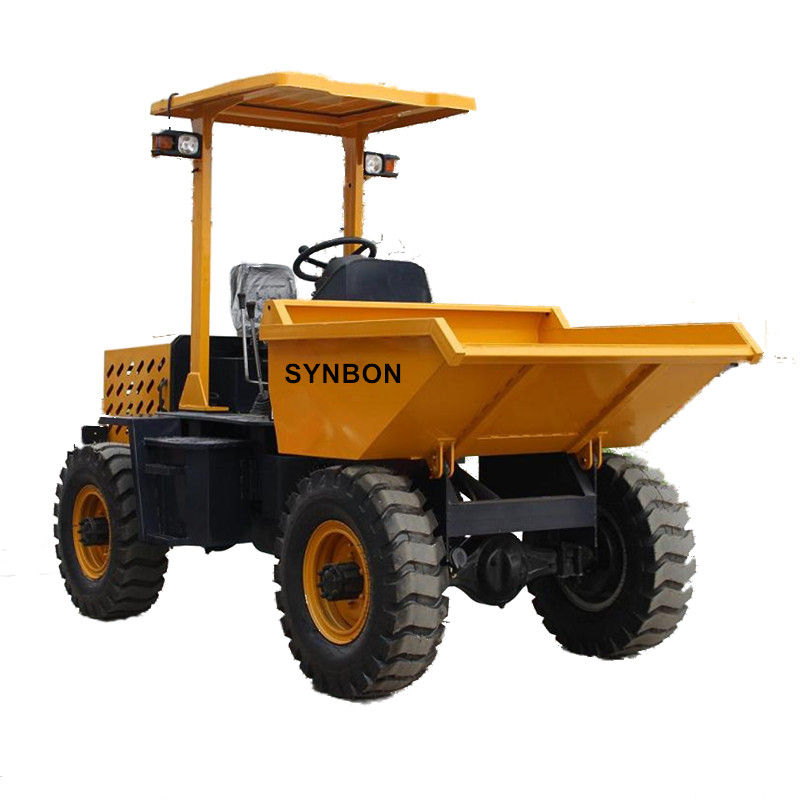

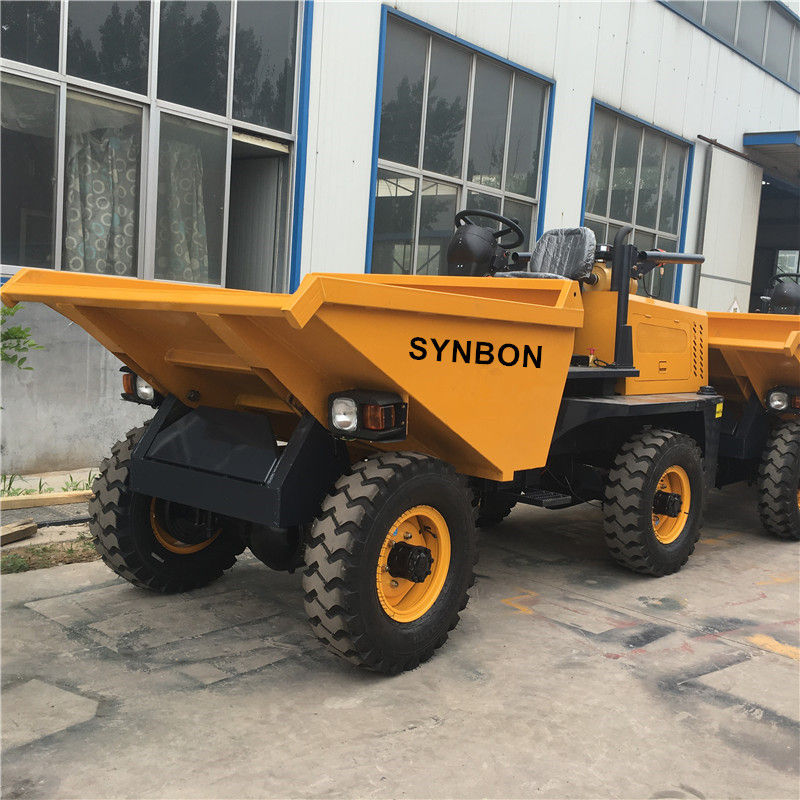

SYNBON 5ton Dumper SYD50
Description
Operating weight 2850KG
Bucket catcity 2.0m³
Power 47KW
Overall size 4250*1950*2300MM
Condition:
Can be used home,garden,golf course,waste treatment plant,small construction, road maintenance,mining.Transporter Carry Bricks Sand Stones Wood Crops Fruitwidely usea in constrction engineering municipal engineering,urban and rural landscape,road traffic ,the station terminals,irrigation and water conservancy and various types of coal mines,battlefields,cement plant,construction sites,etc.especially suitable for narrow site loading and short distance running sand,gravel,coal,slag,loam.garbage and etc.
4*4drive, Full Hydraolic Easy opreation,small turning radius
Features & Details
Product Description
This product is made in china ,widely used in construction work and bulk materials transport.
1.Medium-sized engineering dumper 5 ton,4*4drive, Full Hydraolic steering,can unload materials smoothly by strong hydraolic pressure unloading syatem. The product is stable performance, simple opreation,low fuel consumption,widely usea in constrction engineeringmmunicipal engineering,urban and rural landscape,road traffic ,the station terminals,irrigation and water conservancy and various types of coal mines,battlefields,cement plant,construction sites,etc.especially suitable for narrow site loading and short distance running sand,gravel,coal,slag,loam.garbage and etc.
2.Easy opreation,small turning radius can be used in a narrow environment.With full seal cabin optional
3.With self loading bucket can realize the mutilfunction tools.
4.DEUTZ engine as optional engine which makes he performance more reliable.
5.Off road wider types as option ,can work in muddy and bumpy roads.
Specifications
| Model | SYD50 |
| Payload | 5000kg |
| Operating weight | 3250 kg |
| Hopper capacity | 2.0m3 |
| Maximum speed | 25.2 km/h |
| Handbrake available on grade | 18% |
| Max grade ability | 25% |
| Distance of road after brake | ≤2.5m with load and speed 10km/h |
| Minimum turn radius | 4 m |
| Ground clearance | 248 mm |
| Noise level | ≤108 db(A) |
| Loading discharge angle | 48.40° |
| Time of discharge | 6s |
| Hydraulic pressure | 16 Mpa |
| Wheel base | 2200 mm |
| Wheel tread | 1580 mm |
| Engine power | 47KW |
| Dimensions (L*W*H) | 4400*2100*2700 mm |
| Engine | |
| Model/Maker | CUMMINS Tier 4 QSF2.8t4TC65 |
| Type | Diesel 4 stroke engine, 4-cylinder incline, direct fuel injection, water cooled |
| Bore x stroke piston | 100 * 102 mm |
| Power | 45KW |
| Speed | 2400 R/Min |
| Max t | 120@2100v/p |
| Weight | 350 kg |
| Fuel consumption | 248 g/kWh |
| Transmission system | |
| Hydraulic Torque Converter | 2 Forward and 2 reverse gears |
| Type | power shift spur gear constantly in mesh |
| Model | 265 |
| Type | 3-elements.single stage |
| Torque ratio | 3.06 |
| Hydraulic System | |
| Model of oil pump | CBG 1016 |
| System pressure | 160(kgf/c ㎡) |
| Model of distribution valve | ZS ZS1-L20E-F-20 |
| Priority-valve | YX YX2-F160L-N |
| (D*L)Dimension of lifting cylinder | φ90*50*548(mm) |
| Steering System | |
| Type | Middle articulated frame. Co-axis flow amp. Steering |
| Model of steering pump | CBG 2063 |
| Model of steering gear | BZZ5-250 |
| System pressure | 125(kgf/c ㎡) |
| Dimension of steering cylinder | φ63*35*249(mm) |
