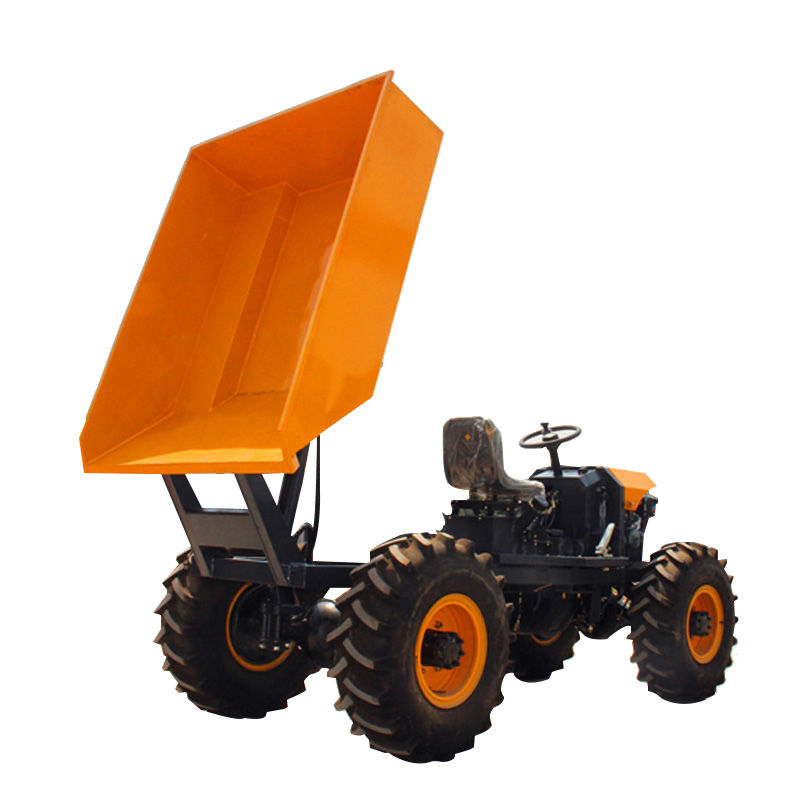

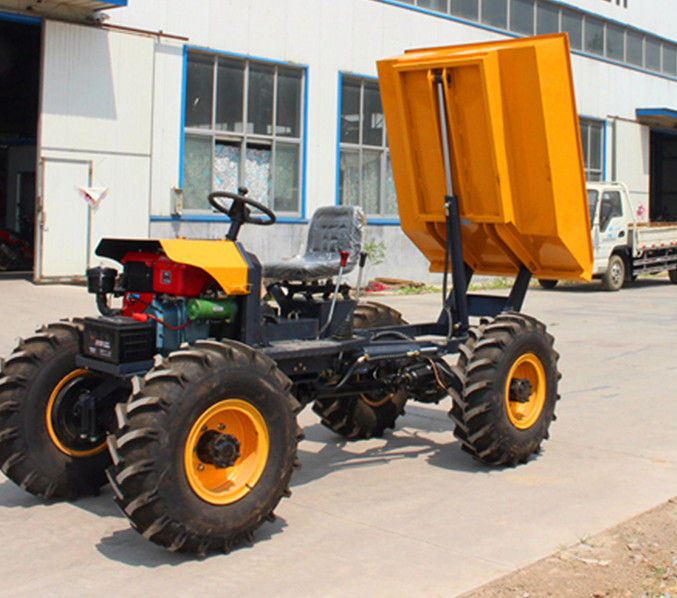

Mini Dumper SYD10, mini site dumper
Description
Operating weight 800KG
Power 12HP
Overall size 3200*1450*1500MM
Condition:
widely usea in constrction engineering municipal engineering,urban and rural landscape,road traffic ,the station terminals,irrigation and water conservancy and various types of coal mines,battlefields,cement plant,construction sites,
Full Hydraolic Easy opreation,small turning radius
Features & Details
1.mining dumpers
2.reasonable structures,
3.convenient and fiexible manipulating,
4.strong and durable
5.widely usea in constrction engineering municipal engineering,urban and rural landscape,road traffic ,the station terminals,irrigation and water conservancy and various types of coal mines,battlefields,cement plant,construction sites,etc.especially suitable for narrow site loading and short distance running sand,gravel,coal,slag,loam.garbage and etc.
Packing 20GP 2Unit,40GP 4Unit
Specifications
| Model | SYD10 |
| Payload | 10000kg |
| Operating weight | 7850 kg |
| Hopper capacity | 3.2 m³ |
| Maximum speed | 25-30 km/h |
| Handbrake available on grade | 25% |
| Max grade ability | 25% |
| Distance of road after brake | ≤2.5m with load and speed 10km/h |
| Minimum turn radius | 4.5 m |
| Ground clearance | 248 mm |
| Noise level | ≤106 db(A) |
| Loading discharge angle | 48.4° |
| Time of discharge | 8 s |
| Hydraulic pressure | 16 Mpa |
| Wheel base | 2000 mm |
| Wheel tread | 1580 mm |
| Engine power | 92KW OR 97KW |
| Dimensions (L *W * H) | 7300*2400*3630MM |
| Engine | |
| Model/Maker | DEUTZ TD226B or CUMMINS engine |
| Type | Diesel 6 cylinders direct fuel injection, water cooled |
| Rated Power | 92KW or 97KW |
| Speed | 2400 R/Min |
| Drive System | |
| Brand | JINGYI |
| Transmission: | Power shift 4Forward and 2 reverse gears |
| Drive shaft: | Tubular-type, open-type, rigid needle-bearing universal joint |
| Driving axle: | Main drive type: single-stage hyperbolical bevel gear dive |
| Frame | |
| Frame: | Channel steel welding type, two-section articulated connection |
| Tire: | 17.5-25 |
| Steering system | |
| Operating brake | Hydraulic shoe system, four-wheel brake |
| Handbrake | mechanically-pirated central sport-type disc |
| Hydraulic system | |
| Hydraulic pump: | Gear pump |
| Electric system | |
| Battery | 24V |
