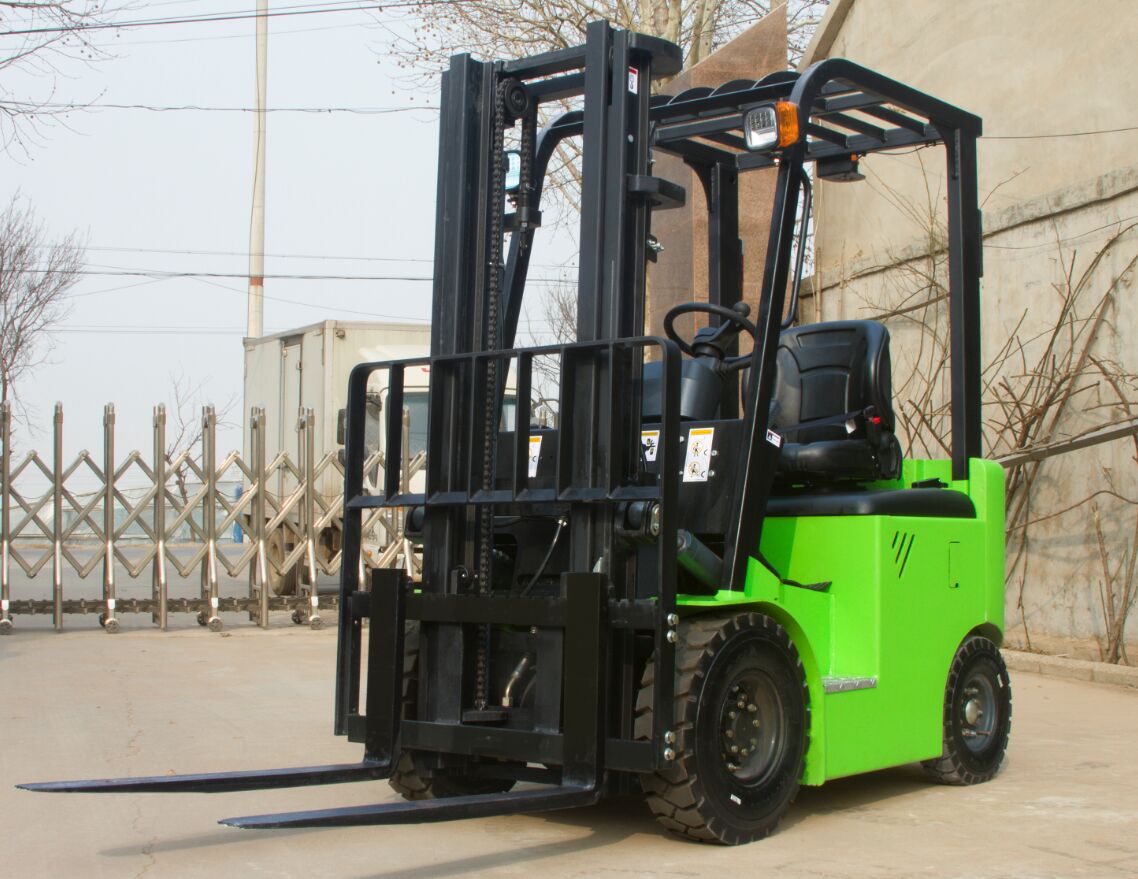

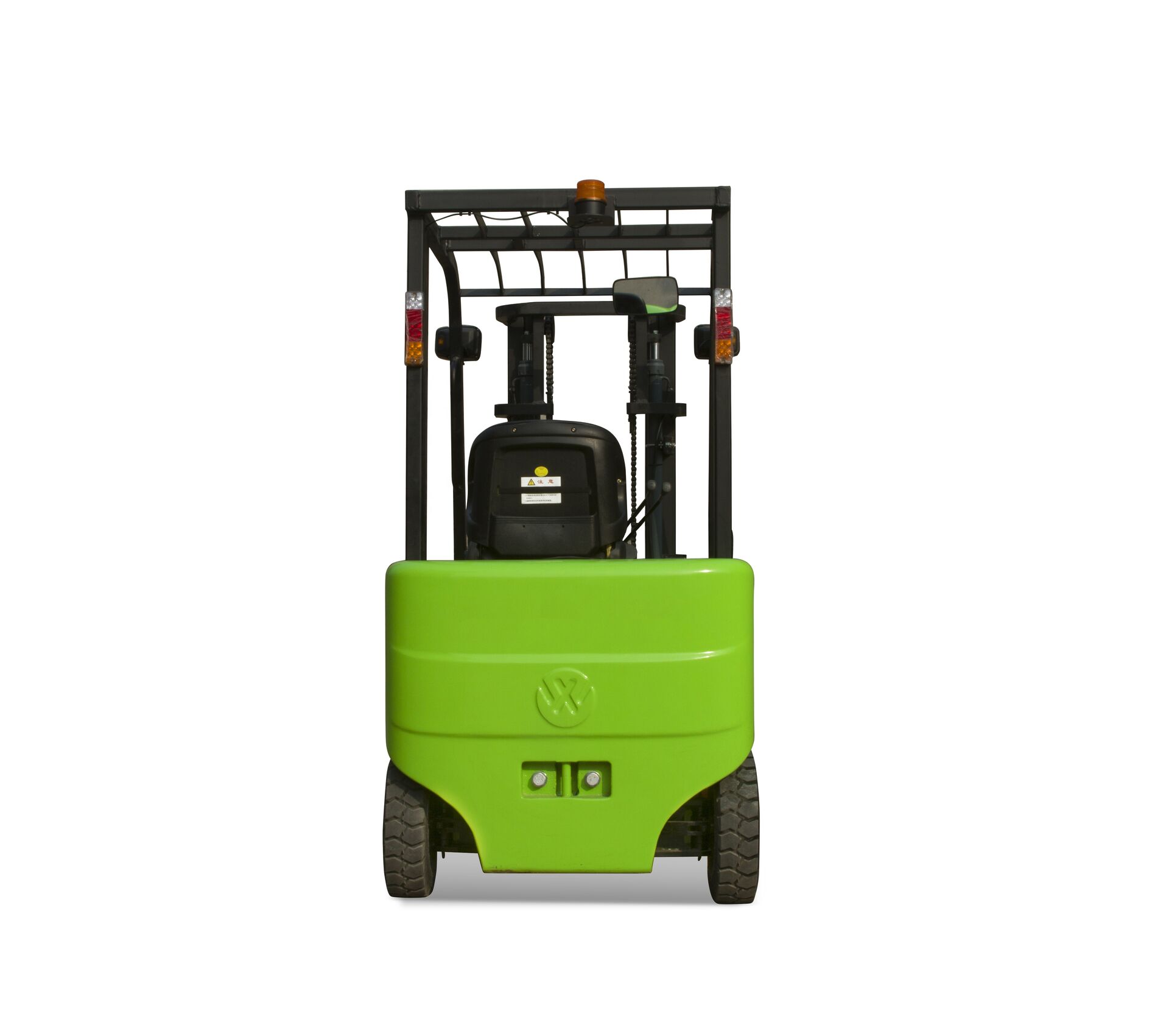

SYNBON Electrical Forklift SYF15D
Description
Operating weight 1500kg
Power type:: Lead-acid battery
Max. Lifting Height 3000mm
Overall size 3000*1088*2080mm
Condition:
Outstanding environmental protection function
Low consumption cost
Handy
Low maintenance cost
Expansion of use
Optional configuration is3-stage mastSide shifterFull-free lift Mast
Features & Details
Packaging and Shipping
6 units in 20GP Container, 12 units in 40HC container

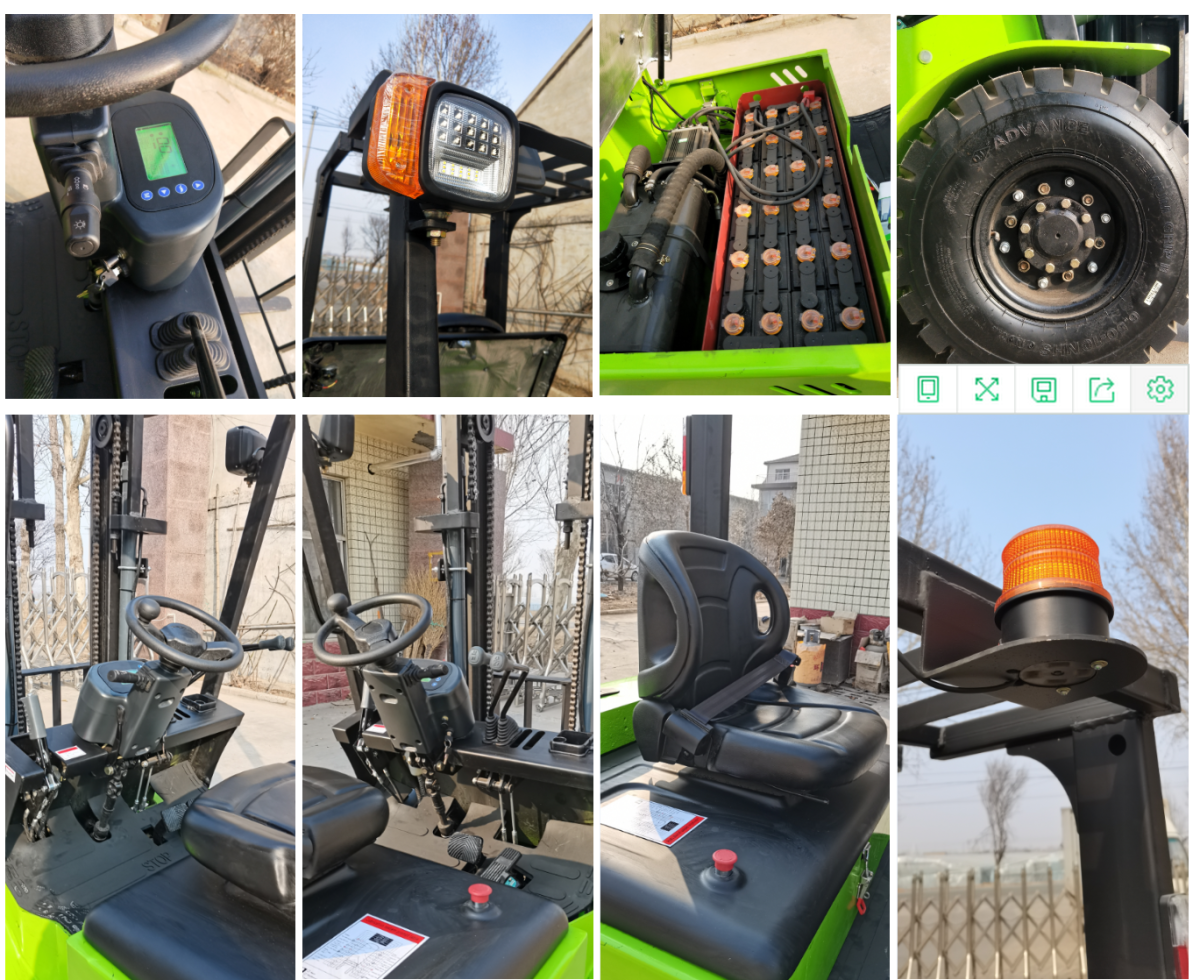

Benefits and Features
• OPS System
• Comfortable Operator Space
• Side-way Battery Change System
• Lower Energy Consumption and Energy Regeneration Function
• Easy-to-read operator display
• Front Dual AC Motor Traction System
• World Class Gear Box System
• Automatic Maintenance Alarm
* Zero-Emission, Zero-Pollution, Low-Level Vibration, Low-Level Vibration, Low Operation Cost, High Efficiency, High Quality, these are the reasons for you to choose SYNBON Electric Forklift.
Specifications
| Model | SYF15D |
| Power type | Battery |
| Rated load （KG） | 1500 |
| Load center distance(mm) | 500 |
| Driving type | Seat |
| With fork L1 | 3040 |
| Without fork L2 | 1970 |
| Whole Width | 1000 |
| Height no lifting frame H1 | 1960 |
| Top frame height H2 | 2010 |
| Max Height working H3 | 4050 |
| Distance from seat to top light L3 | 1000 |
| Wheel base | 1260 |
| Front overhang | 385 |
| Back overhang | 365 |
| Front wheel tread | 1010 |
| Back wheel tread | 100 |
| Min Floor clearance | 130 |
| Max lifting height | 3000 |
| Free lifting height | 40 |
| Fork changing | 1040/200 |
| Min Turning radius | 2100 |
| Min driiving width | 3785 |
| Frame angle （°） | 6/12 |
| Max lifting speed without goods | 300 |
| Max lifting speed with full goods | 260 |
| Max speed without goods(Km/h) | 14 |
| Max speed with full goods(Km/h) | 13 |
| Max climbing angle(％) | ≤15 |
| Whole weight (KG) | 2650 |
| Driving Wheel | 2/2 |
| Tyre model | Solid tyre |
| Front Tyre | 18×7-10 |
| Rear Tyre | 16×6-8 |
| Hand Brake | Hydraulic Pedal |
| Brake type | M-Hand |
| Battery Volt/ capacity(V/Ah) | 48/230 |
| Driving motor power (KW) | 4.0AC |
| pump power | 5.5AC |
