Features & Details
Benefits and Features

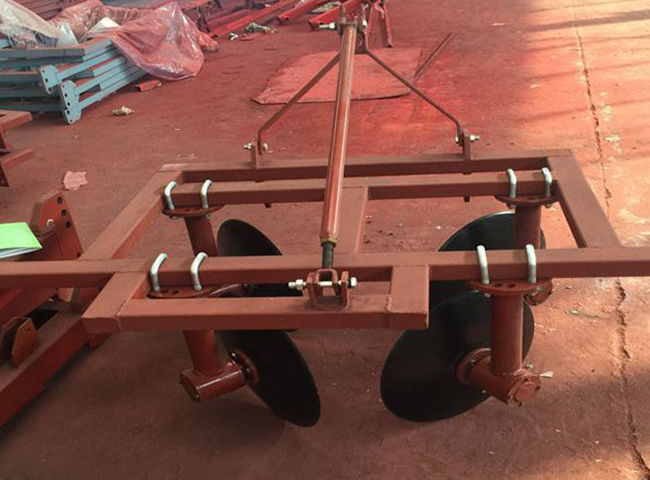

3Z series of disc ridger is suitable for ridging after the tillage in the farm field.It consists of heavy duty tubular box frame,3 point hitch system and discs.The disc blades are made after the heat treatment in the material of 65Mn spring steel that has better hardness.Themachiner is reasonable for construction,convenientlytransport,easy to adjust,and convenient use and maintain.
Advatages
65Mn spring steel disc blade
Two discs and four discs respectively.You can hoose the number of disc to meet your need.
Specifications
Model | Ridging row | Ridging width | Ridging height | Working width | Weight | Matched power | Linkage |
3Z-80 | 1(2) | 200-450mm | 150-260mm | 800mm | 120kg | 20-30hp | Three point mounted |
3Z-120 | 1(2) | 1200mm | 140kg | 30-40hp | |||
3Z-140 | 1 | 300-500mm | 150-300mm | 1400mm | 200kg | 50-60hp | |
3Z-180 | 1(2) | 1800mm | 220kg | 60-70hp | |||
3Z-260 | 1(2) | 2600mm | 246kg | 70-90hp |
