Features & Details
Benefits and Features

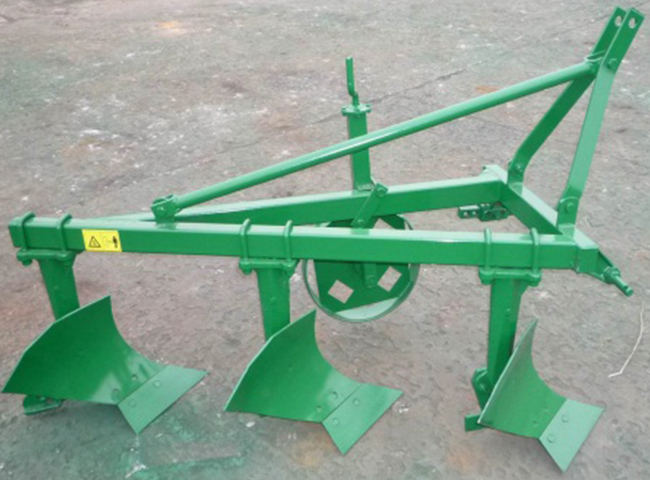

1L series share plow is a four-wheel tractor mounted plow,mainly used for plowing loam,thesandloam,cultivated and dry land.
Advantages
The width of plow share could be 20cm,25cm,30cm,35cm.
Material of plough tip is 65Mn steel
Working depth can be adjusted
Specifications
| Model | Nos of bottoms | Working width | Working depth | Weight | Matched power | Type of blade |
| 1L-220 | 2 | 400mm | 200-250mm | 64kg | 15-25hp | Three-point Suspension I type |
| 1L-320 | 3 | 600mm | 100kg | 25-35hp | ||
| 1L-420 | 4 | 800mm | 130kg | 35-45hp | ||
| 1L-520 | 5 | 1000mm | 170kg | 50-60hp | ||
| 1L-225 | 2 | 500mm | 200-250mm | 125kg | 25hp | |
| 1L-325 | 3 | 750mm | 170kg | 40hp | ||
| 1L-425 | 4 | 1000mm | 240kg | 50hp | ||
| 1L-525 | 5 | 1250mm | 270kg | 65-80hp | ||
| 1L-330 | 3 | 900mm | 220-270mm | 230kg | 50hp | Three-point Suspension II type |
| 1L-430 | 4 | 1200mm | 330kg | 70hp | ||
| 1L-530 | 5 | 1500mm | 420kg | 80hp | ||
| 1L-335 | 3 | 1050mm | 300kg | 55hp | ||
| 1L-435 | 4 | 1400mm | 470kg | 75hp | ||
| 1L-535 | 5 | 1750mm | 520kg | 90hp |
