Skid Steer Loader

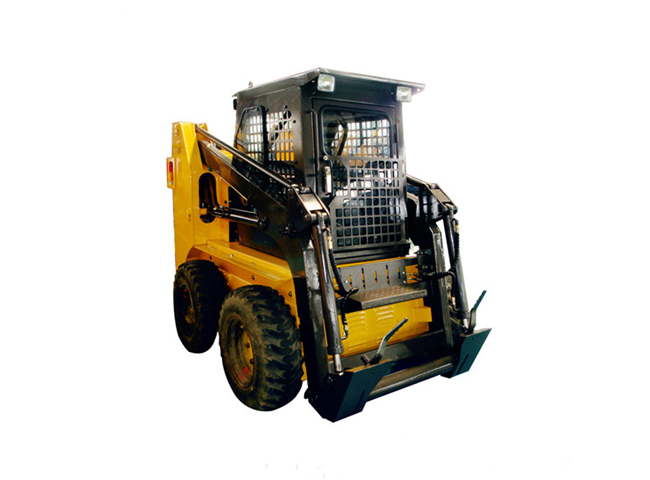

Skid Steer Loader SY45

SY45 mini skid loader CE certification, high quality hot sale, four-wheel drive, a wide range of app

Description

Total weight: 2700KG

Tipping load: 1400KG

Rated operating capacity: 700KG

Bucket capacity: 0.4m3

Rated power: 37KW

Condition :

widely used for road maintenance, road-surface milling, pipe laying, cable laying, landscaping, snow clearing, cargo transporting, excavating and breaking, etc.

skid steer loader is wheeled type, 4WD and skid-steering.
Get a quote

Features & Details

Description

Front shovel skid steer loader, four-wheel drive, imported hydraulic components, easy to operate. Auxiliary tools can be used with the Bobcat Skid Steer Loader. CE certification of well-known brand engines meets Euro III emission standards.


Features

New safe and comfortable operating environment, highly reliable ROPS and FOPS cabins.

1,The upper cover is easy to open. The cabin is turned at a wide angle for easier maintenance.

2. Wide range of applications, can be used with 40 kinds of accessories, auger, crusher, slitting machine, 4-in-1 bucket, pallet fork and so on.


Benefits

1, four-wheel drive, 360-degree steering.

2.Compact structure, small size, used in a variety of small, low and complex workplaces.

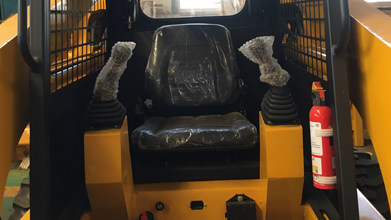

Detail Picture

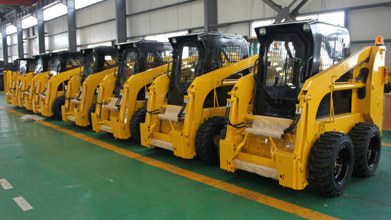

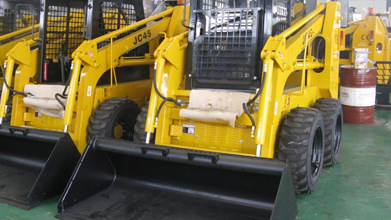

SYNBON skid steer loader Series


Packaging and Shipping

2 sets in 1*20GP container , 4 sets in 1*40HQ container


FAQ

Q1. What is your production strength?

Over10 years of wheel loader production experience, with an annual output of 600units

Our wheel loader have passed the ISO 9001 international quality certification system and China 3C quality system. We have obtained EAC and CE certification abroad.

Q2 Which countries have you exported?

Myanmar, Thailand, Kazakhstan, Uzbekistan, Russia, Ukraine, Australia, Brazil, Colombia, Germany, Czech Republic, Sudan, Tunisia, Benin, Congo.


Q3 What is your terms of payment?

A: T/T 30% as deposit, and 70% before delivery. Weand#39;ll show you the photos of the products and packages before you pay the balance.


Q4. How about your delivery time?

A: Generally, it will take 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. Sometimes we have some in stock.


Q5. What is your warranty policy?

A: We can supply one year warranty for our machines. We will provide parts as free within warranty. We can provide internet or calling service at any time.

Specifications

ModelSY45
Ope B2:H27rating load (kg)700
Max Speed(km/h)12
Rated flux (L/min)62.5
Tire(track) model10-16.5
Rated power (Kw)37
Fuel tank capacity (L)70
self weight bucket (kg)2700
Tipping load (kg) 1400
Bucket capacity (m3)0.4
Overall operating height (mm)3980
Height to bucket hinge pin (mm)3080
height to top of cab (mm)2120
Height to bottom of level bucket(mm)2200
Overall length ithout bucket(mm)2710
overall length with bucket(mm)3490
Dumping angle at maximum height(° )40
Dumping height(mm)2380
Dumping reach(mm)750
Rollback o bucket on ground(° )30
Rollback of bucket at full height(° )105
Wheelbase(mm)991
Ground clearance(mm)185
Angleof departure(° )20
Front turning radins without bucket(mm)1168
Front tuning radius(mm)1550
Rear tuning radius(mm)1350
Rear axle to bumper (mm)1108
Tread width,enterline to centerline (mm)1450
Width (mm)1580
Bucket width (mm)1680
