Tractor

Tractor SY404

Reinforced chassis, heavy weight, strong vehicle grip,higher efficiency.

Description

Horsepower 40HP

Length*Width*Height 3340*1510*2020

Front / Rear Wheel Tire 6.00-16/9.50-24

Condition:

The model has a small body, short wheelbase and compact structure. It is specially equipped with a lower exhaust pipe, which is very suitable for field management of vegetable greenhouses and orchards.

Reinforced chassis, heavy weight, strong vehicle grip,higher efficiency.
Get a quote

Features & Details

Description

8 2 files (4 1)*2,

Single acting clutch,

Front wheel 6.0-16,

Rear wheel 9.5-24,

Double hydraulic pump,

Without air brake,

Front and rear weight


Features

* with Laidong engine, with small vibration, low noise, strong power, large torque reserve and so on;

* It adopts (4 1)* 2 gearbox (8 forward gears, 2 reverse gears), with crawling gears, easy to operate, wide speed range, reasonable matching and high working efficiency;

* the power output speed is 730 rev / min, optional two-speed power output, the speed is 540 / 730 rev / min, can be equipped with a variety of agricultural machinery, to adapt to multiple working conditions;

* using hydraulic steering, with differential lock, double-acting clutch, flexible and light operation;


Benefits

* Fast speed and high transportation efficiency:

* Optional double-acting clutch to ensure no clogging during harvesting;

* With differential lock (rear force device), climb the slope. Climb the bridge and the rear wheels will not slip when working on rainy days.

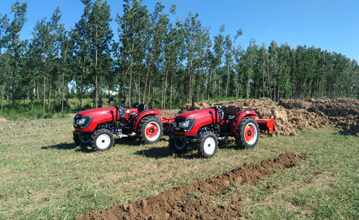

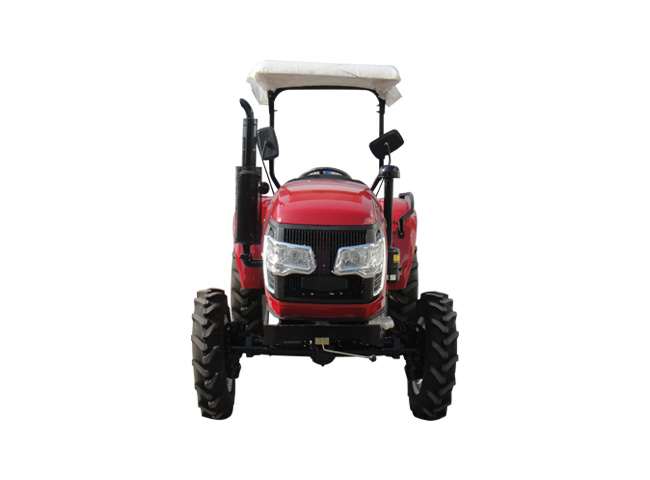

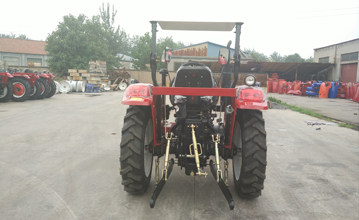

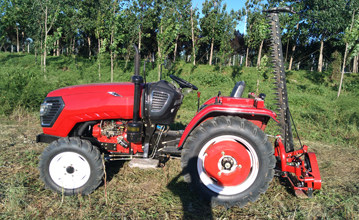

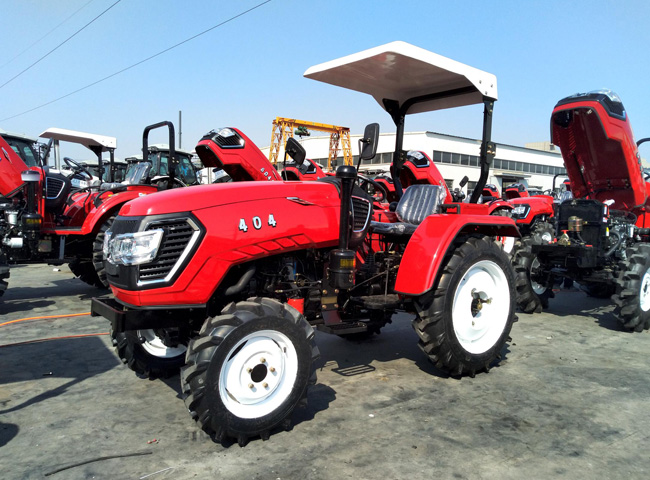

Detail Picture


SYNBON Tractor Series


Packaging and Shipping

8unit in 1*20GP container , 16units in 1*40HQ container , Triangle wood and 10mm wire fixed.




FAQ

Q1. What is your production strength?

Over 15 years of tractor production experience, with an annual output of 10,000 units.

Our tractors have passed the ISO 9001 international quality certification system and China 3C quality system. We have obtained EAC and CE certification abroad.


Q2 Which countries have you exported?

Myanmar, Thailand, Kazakhstan, Uzbekistan, Russia, Ukraine, Australia, Brazil, Colombia, Germany, Czech Republic, Sudan, Tunisia, Benin, Congo…


Q3 What is your terms of payment?

A: T/T 30% as deposit, and 70% before delivery. Weand#39;ll show you the photos of the products and packages before you pay the balance.


Q4. How about your delivery time?

A: Generally, it will take 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. Sometimes we have some in stock.


Q5. What is your warranty policy?

A: We can supply one year warranty for our machines. We will provide parts as free within warranty. We can provide internet or calling service at any time.

Specifications

Model SY404
Type 4×4 Wheeled Type
Dimensionsof Tractor(mm) Length3340

Width1510

Height2020

TreadFront Wheel1200


Rear Wheel1200

Wheel Base1800

Min. Ground Base360(the bottom of front axle)
Min. Usage Mass(kg)1590
Engine ModelLaidong 4L23BT

TypeVertical, water cooled and 4-stroke

Rated Power(kw)29.4

Rated Rev.(r/min)2400

Fuel Diesel Oil
Tire Front Wheel6.0-16

Rear Wheel9.5-24
ClutchDry-friction,single stage or Dry-friction,Two Stage
SteeringHydraulic type
Transmission Boxtwo shafts, (4 1)×2 composed
Suspension TypePost Positioned Tri-point Suspension Catalogue Ⅰ
PTOType and Rev.(r/min)Post-position, non-independent,720/850

Spline SizeI35 Rectangle Spline with 6 teeth
