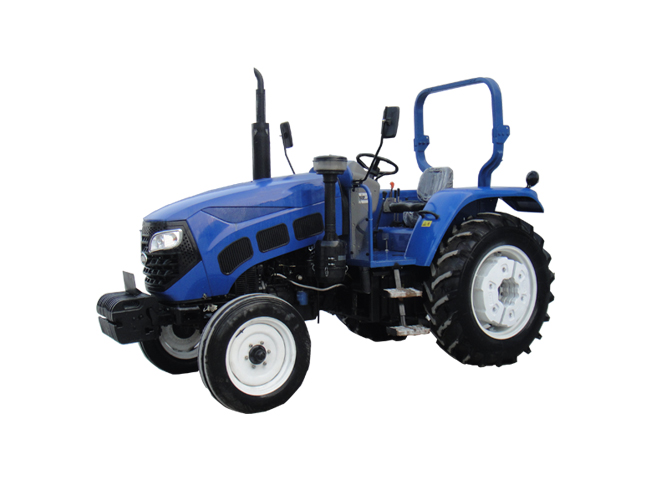

Tractor SY904
Description
Horsepower 90HP
Length*Width*Height 4300*1910*2810
Front / Rear Wheel Tire 8.3-24/ 14.9-30
Condition:
generally applicable for the small and medium-sized farmlands and complex operations of individual farmers such as farmland, transportation, construction and etc.
Reinforced chassis, heavy weight, strong vehicle grip,higher efficiency.Features & Details
Description
Quan Chai Guo II engine,
8.3-24 / 14.9-30 tires,
10 10 shuttle shift,
Double acting clutch,
Two-speed power output,
four-wheel drive,
Hydraulic steering,
Strong rise and fall,
With suspension components,
Features
*Comfortable driving
Streamlined metal hood, stylish streamlined design, beautiful appearance
Optional fully sealed closed cab for more ergonomics
*Adaptable
Double cylinder strong pressure riser with height limit, the depth adjustment method adopts position adjustment and floating control operation, and the adaptability is better.
*Reliability
The hydraulic system and the rear axle are itself supplied with oil, and the failure rate is low.
Full hydraulic steering system for more reliable handling
Reinforced chassis, heavy weight, strong vehicle grip, large specific resistance soil operation, higher efficiency.
Benefits
The complete machine is equipped with a variety of international standard interfaces which can match various machines and tools.Matching machines and tools: light farmland cultivating machines and tools like front loader, backhoe, trailer, hay mower, rake, Baler,Box Blade and rotary cultivator

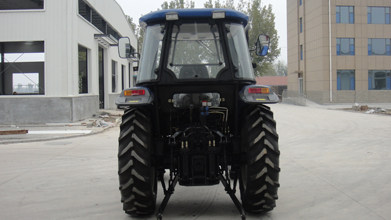

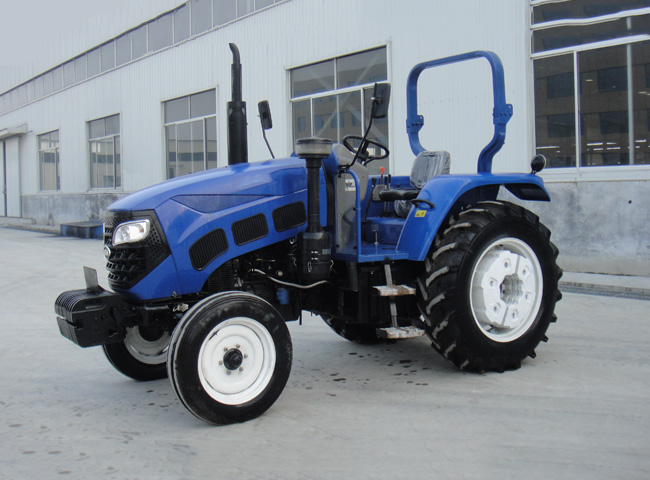

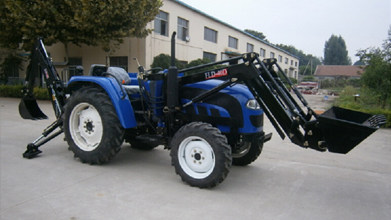

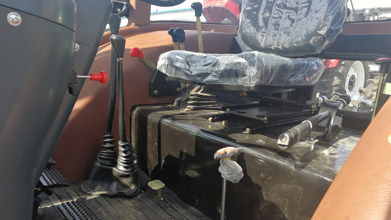

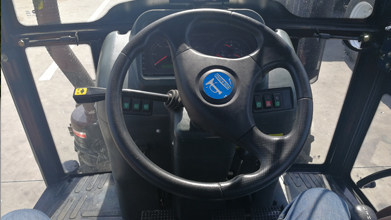

Detail Picture
SYNBON Tractor Series
Packaging and Shipping
1units in 1*20GP container , 3units in 1*40HQ container , Triangle wood and 10mm wire fixed.
FAQ
Q1. What is your production strength?
Over 15 years of tractor production experience, with an annual output of 10,000 units.
Our tractors have passed the ISO 9001 international quality certification system and China 3C quality system. We have obtained EAC and CE certification abroad.
Q2 Which countries have you exported?
Myanmar, Thailand, Kazakhstan, Uzbekistan, Russia, Ukraine, Australia, Brazil, Colombia, Germany, Czech Republic, Sudan, Tunisia, Benin, Congo…
Q3 What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. Weand#39;ll show you the photos of the products and packages before you pay the balance.
Q4. How about your delivery time?
A: Generally, it will take 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. Sometimes we have some in stock.
Q5. What is your warranty policy?
A: We can supply one year warranty for our machines. We will provide parts as free within warranty. We can provide internet or calling service at any time.
Specifications
Model | SY904 | ||
Type | 4×4 Wheeled Type | ||
Dimensions of Tractor (mm) | Length | 4300 | |
Width | 1910 | ||
Height | 2810 | ||
Tread | Front Wheel | 1450 | |
Rear Wheel | 1530(usual)、1630、1730、1830 | ||
Wheel Base | 2200 | ||
Min. Ground Base | 335(the bottom of front driving alxe) | ||
Min. Usage Mass(kg) | 3580 | ||
Engine | Model | quanchai4110 | |
Type | Vertical, water cooled and 4-stroke | ||
Rated Power(kw) | 66.2 | ||
Rated Rev.(r/min) | 2300 | ||
Fuel | Diesel Oil | ||
Tire | Front Wheel | 8.3-24 | |
Rear Wheel | 14.9-30 | ||
Clutch | dry-friction, single disc and two stage | ||
Steering | Hydraulic type | ||
Transmission Box | 4×(4 4) combined | ||
Suspension Type | Post Positioned Tri-point Suspension Catalogue Ⅱ | ||
PTO | Type and Rev.(r/min) | Post-position, independent,540/760 | |
Spline Size | I38 Rectangle Spline with 8 teeth |
Structure and specification are subject to change without notice.
