Tractor

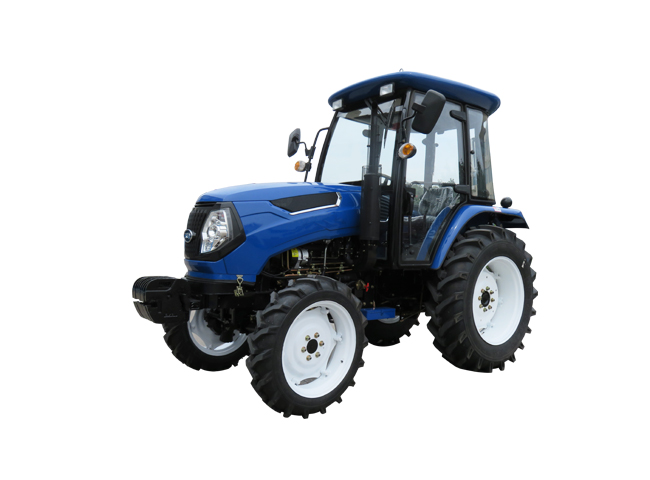

Tractor SY754

HOT SALE! best tractor agricultural machinery SY754 farm tractor

Description

Horsepower 75HP

Length*Width*Height 3700*1710*2360

Front / Rear Wheel Tire 8.3-20/ 12.4-28

Condition:

generally applicable for the small and medium-sized farmlands and complex operations of individual farmers such as farmland, transportation, construction and etc.

Reinforced chassis, heavy weight, strong vehicle grip,higher efficiency.
Get a quote

Features & Details

Description

QUANCHAI/XINCHAI engine,

8.3-20 / 12.4-28 tires,

12 12 shuttle shift,

10-inch double-acting clutch,

Two-speed power output,

four-wheel drive,

Hydraulic steering,

With suspension assembly


Features

*Comfortable driving

Streamlined metal hood, stylish streamlined design, beautiful appearance

Optional fully sealed closed cab for more ergonomics


*Adaptable

Double cylinder strong pressure riser with height limit, the depth adjustment method adopts position adjustment and floating control operation, and the adaptability is better.


*Reliability

The hydraulic system and the rear axle are itself supplied with oil, and the failure rate is low.

Full hydraulic steering system for more reliable handling

Reinforced chassis, heavy weight, strong vehicle grip, large specific resistance soil operation, higher efficiency.


Benefits

The complete machine is equipped with a variety of international standard interfaces which can match various machines and tools.Matching machines and tools: light farmland cultivating machines and tools like front loader, backhoe, trailer, hay mower, rake, Baler,Box Blade and rotary cultivator

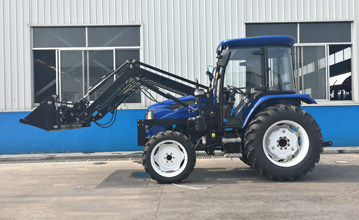

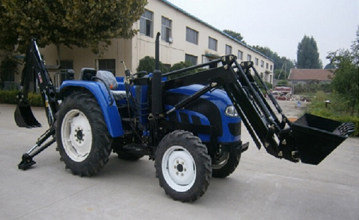

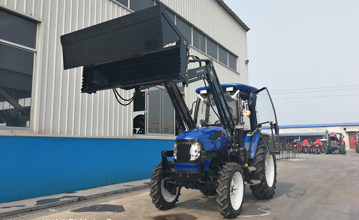

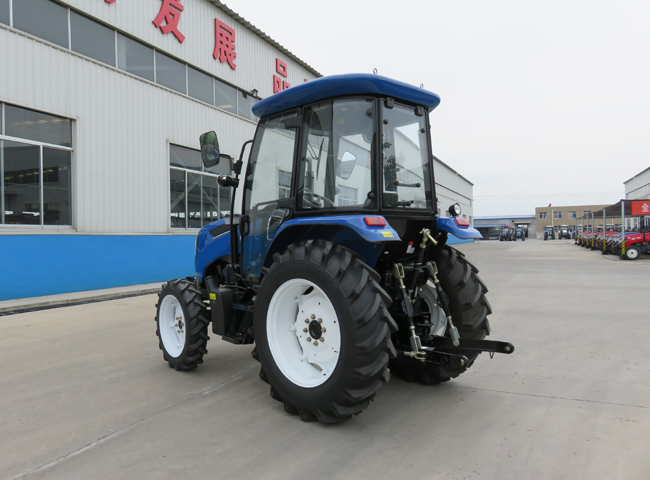

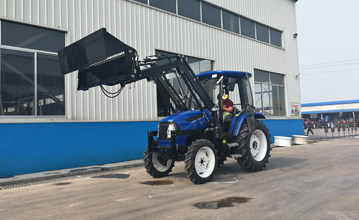

Detail Picture


SYNBON Tractor Series


Packaging and Shipping

1units in 1*20GP container , 3units in 1*40HQ container , Triangle wood and 10mm wire fixed.



FAQ

Q1. What is your production strength?

Over 15 years of tractor production experience, with an annual output of 10,000 units.

Our tractors have passed the ISO 9001 international quality certification system and China 3C quality system. We have obtained EAC and CE certification abroad.


Q2 Which countries have you exported?

Myanmar, Thailand, Kazakhstan, Uzbekistan, Russia, Ukraine, Australia, Brazil, Colombia, Germany, Czech Republic, Sudan, Tunisia, Benin, Congo…


Q3 What is your terms of payment?

A: T/T 30% as deposit, and 70% before delivery. Weand#39;ll show you the photos of the products and packages before you pay the balance.


Q4. How about your delivery time?

A: Generally, it will take 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. Sometimes we have some in stock.


Q5. What is your warranty policy?

A: We can supply one year warranty for our machines. We will provide parts as free within warranty. We can provide internet or calling service at any time.

Specifications

Model SY754
Type 4×4 Wheeled Type
Dimensionsof Tractor(mm) Length3700

Width1710

Height2360

TreadFront Wheel1300


Rear Wheel1200、1300(usual)、1400

Wheel Base2200

Min. Ground Base390(the bottom of steering horizontal pulling rod)
Min. Usage Mass (kg)2300
EngineModelquanchai4108

TypeVertical, water cooled and 4-stroke

Rated Power(kw) 55.1

Rated Rev.(r/min)2400

FuelDiesel Oil
Tire Front Wheel8.3-20

Rear Wheel12.4-28
Clutchdry-friction, single disc and two stage
Steering Hydraulic type
Transmission Boxtwo shafts, 4×(3 3) composed
Suspension TypePost Positioned Tri-point Suspension Catalogue Ⅰ
PTOType and Rev.(r/min)Post-position,independent,540/760 or 540/1000(optional)

Spline SizeI38 Rectangle Spline with 8 teeth

Structure and specification are subject to change without notice.
