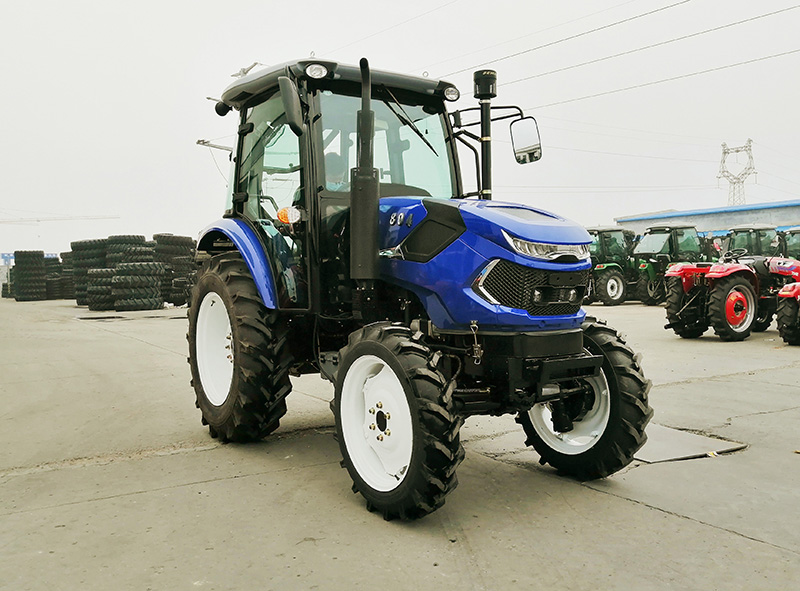

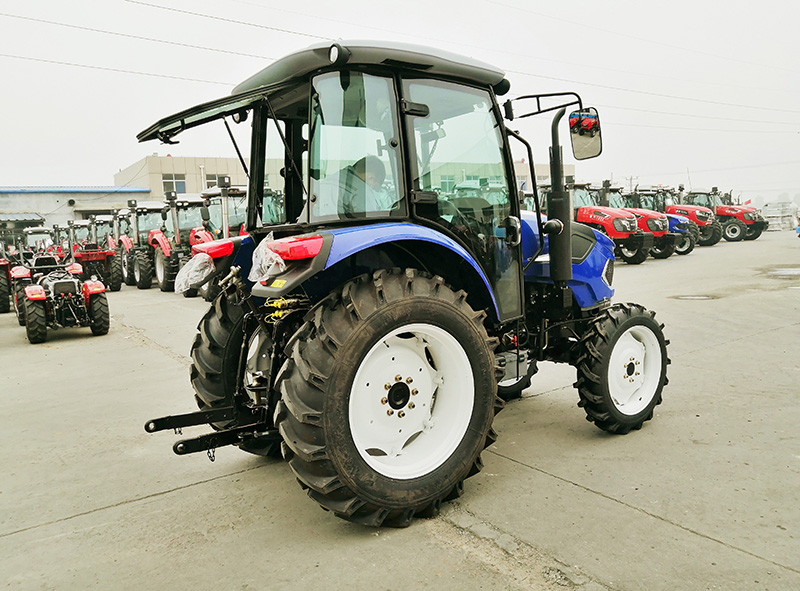

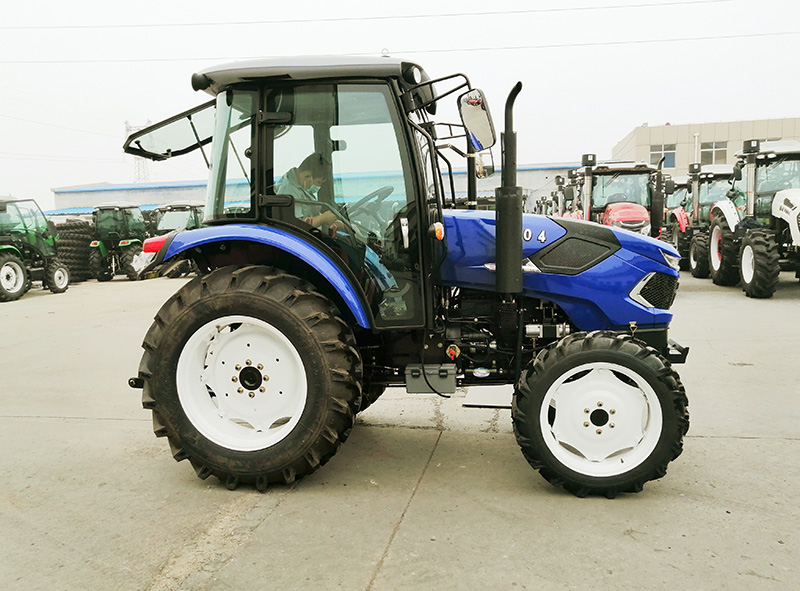

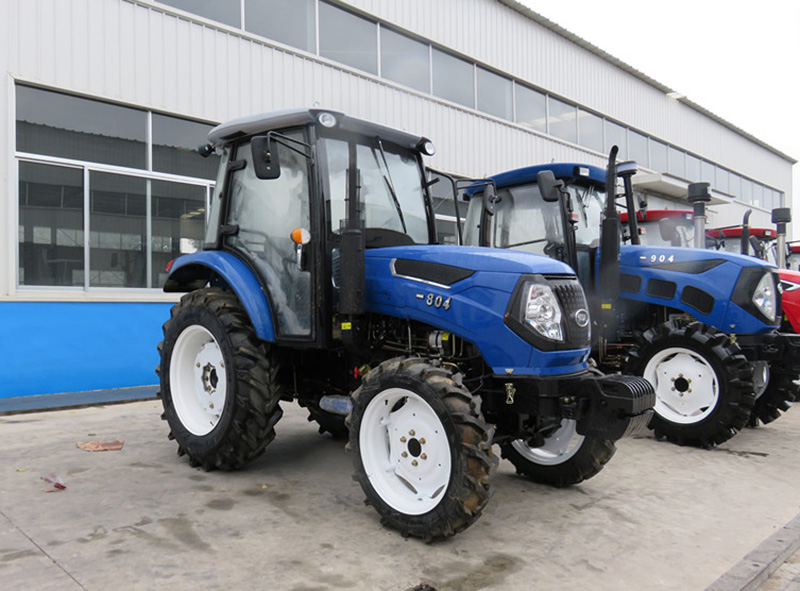

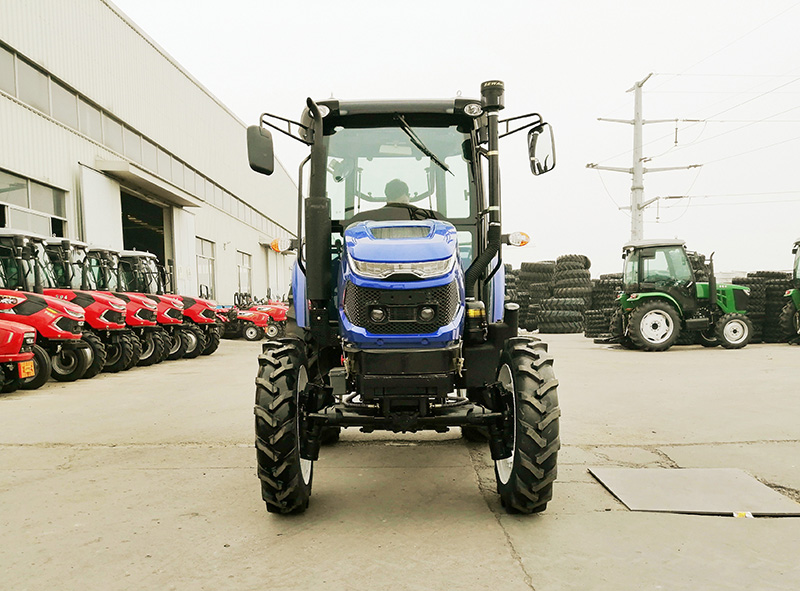

SYNBON 80HP Tractor SY804
Description
Model: SY804
Horsepower: 80HP/58.8 KW
Length*Width*Height: 3500*1850*2700mm
Front / Rear Wheel Tire: 8.3-24/11.00-3.2
Condition:
generally applicable for the small and medium-sized farmlands and complex operations of individual farmers such as farmland, transportation, construction and etc.
Reinforced chassis, heavy weight, strong vehicle grip,higher efficiency.High performance, simple operation and wide application.
Features & Details
Packaging & Shipping
4 unit in 1*20GP container , 8 units in 1*40HQ container
Features:
12F+12R gearbox, double-acting clutch, hydraulic steering, two-speed rear PTO (540/760r/min), 1.3 meters or 1.4 track, high pressure lift. Side replacement, shock-absorbing seat, maintenance-free battery, tire: 8.30-24/11-32, flat floor, segmented rear PTO, streamlined hood
 |  |
Specifications
Model | SY804 |
Horsepower(hp) | 80 |
Type | 4×4 Wheeled tractor |
Overall dimension（mm） | |
length | 3500 |
width | 1850 |
Height | 2700 |
Tread（mm） | |
Front Wheel | 1450 |
Rear Wheel | 1408 |
wheel base（mm） | 2020 |
Ground Clearance（mm） | 420 |
Structure weight（kgs） | 2660 |
Front Wheel ballast（kg） | 144 |
Rear Wheel ballast(kg) | 360 |
Engine | |
Type | vertical, water cooled, four cylinder,four stork |
Rated rev. (r/min) | 2300 |
Rated power (KW) | 58.8 |
clutch | Dry-friction,double stage |
Transmission system | |
gearbox | 12F+12R shuttle shifts |
central transmission | Gear sector |
Tractor brake | Hydraulic brake,discs |
Tyre | |
front wheel | 8.3-24 |
Rear wheel | 11.00-32 |
PTO shaft rev. | 540r/min and 760r/min |
