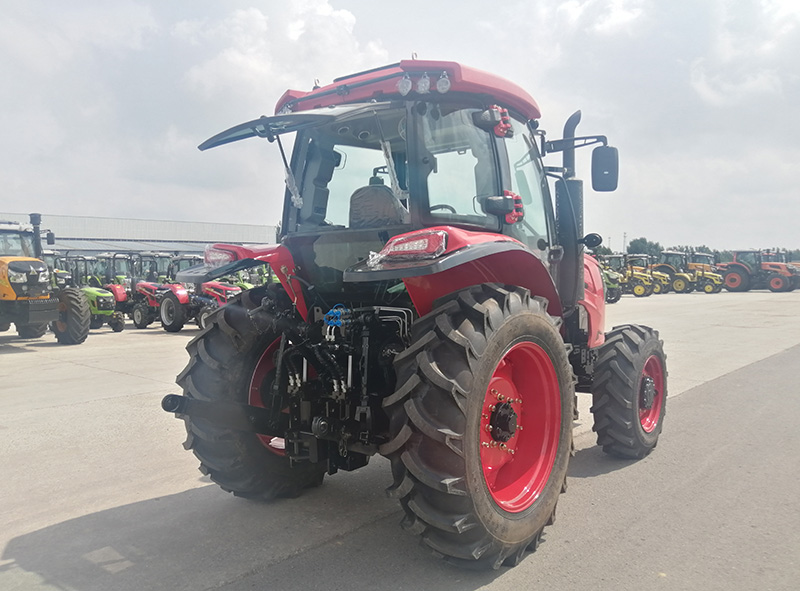

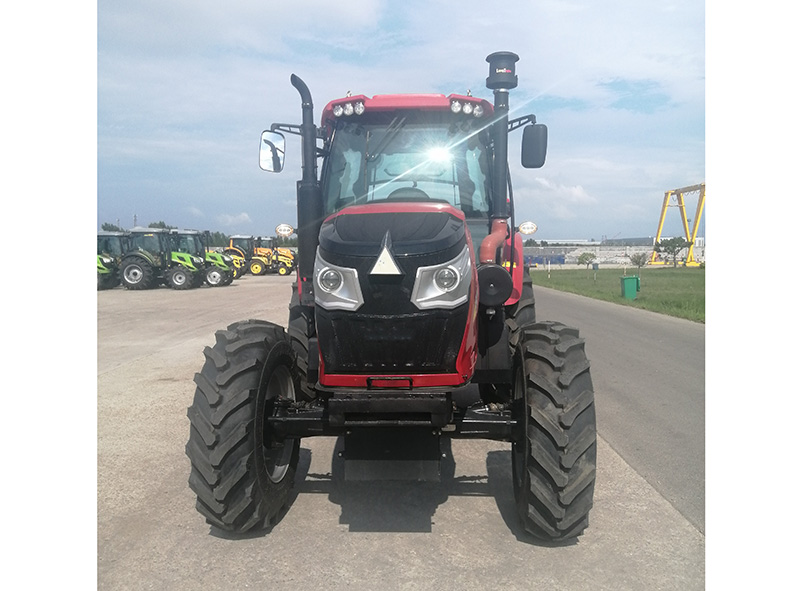

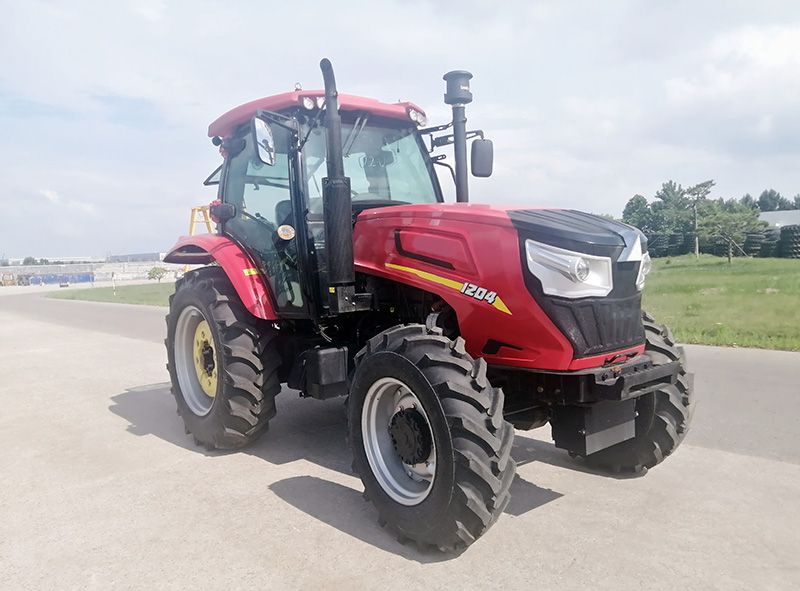

SYNBON 120HP Wheel Tractor SY1204
Description
Model: SY1204
Horsepower: 120HP/88.2KW
Length*Width*Height: 4350*2130*2870mm
Front / Rear Wheel Tire: 13.6-24/16.9-34
Condition:
generally applicable for the small and medium-sized farmlands and complex operations of individual farmers such as farmland, transportation, construction and etc.
Reinforced chassis, heavy weight, strong vehicle grip,higher efficiency.High performance, simple operation and wide application.
A variety of auxiliary tools can be installed to work in orchards, farmland, engineering.
Features & Details
Packaging & Shipping
3 units in 1*40HQ container
Features:
SY1204 tractor:120hp, 4wd,four/six cylinder diesel engine,aumahr hood,power steering,16f+8r shifts,double stage cluth,front tyre:13.6-24 rear tyre:16.9-34 ,bouble speed pto: 540/1000rpm( 760/850 rpm ).big fuel tank, with fan cabin,with front and rear ballast.
Specifications
Model | SY1204 |
Horsepower(hp) | 120 |
Type | 4×4 Wheeled tractor |
Overall dimension（mm） | |
length | 4350 |
width | 2130 |
Height | 2870 |
Tread（mm） | |
Front Wheel | 1625 |
Rear Wheel | 1608-1996 |
wheel base（mm） | 2530 |
Ground Clearance（mm） | 420 |
Structure weight（kgs） | 4100 |
Front Wheel ballast（kg） | 440 |
Rear Wheel ballast(kg) | 172 |
Engine | |
Type | vertical, water cooled, four/six cylinder,four stork |
Rated rev. (r/min) | 2300 |
Rated power (KW) | 88.2 |
clutch | Dry-friction,double stage |
Transmission system | |
gearbox | 16F+8R |
central transmission | Gear sector |
Tractor brake | Hydraulic brake,discs |
Tyre | |
front wheel | 12.4-24/13.6-24 |
Rear wheel | 16.9-34 |
PTO shaft rev. | 760/850 RPM(540r/min and 1000r/min) |
