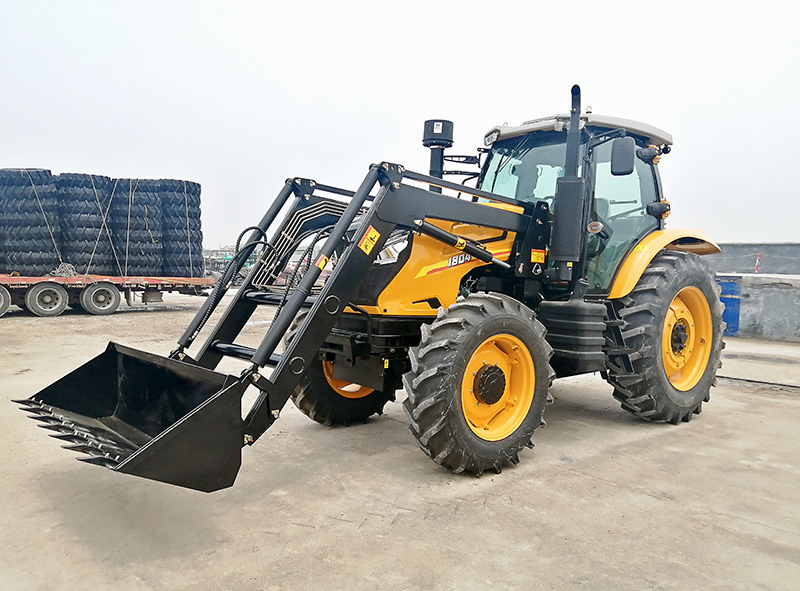

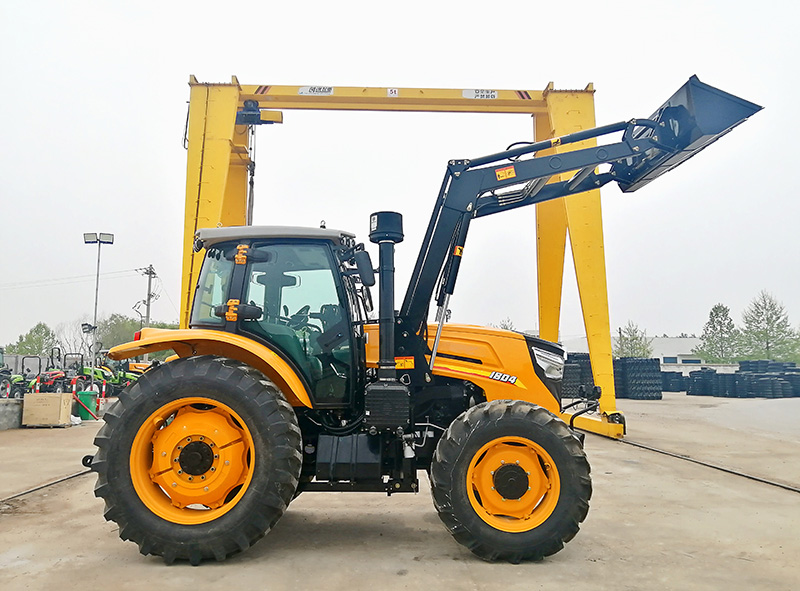

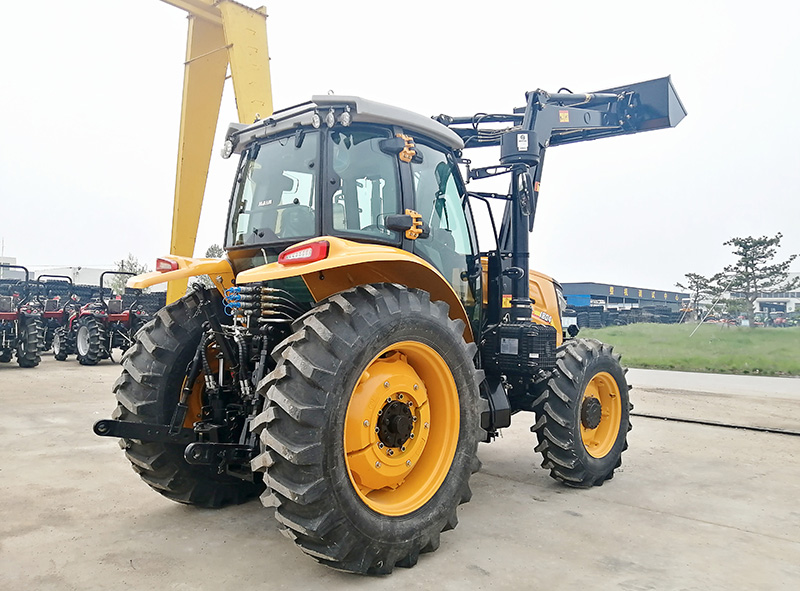

SYNBON 180hp WHEEL TRACTOR SY1804
Description
Model: SY1804
Horsepower: 180HP/132.5KW
Length*Width*Height: 5120*2380*3100mm
Front / Rear Wheel Tire: 14.9-26/18.4-38
Condition:
generally applicable for the small and medium-sized farmlands and complex operations of individual farmers such as farmland, transportation, construction and etc.
Reinforced chassis, heavy weight, strong vehicle grip,higher efficiency.High performance, simple operation and wide application.
A variety of auxiliary tools can be installed to work in orchards, farmland, engineering.
Features & Details
Packaging & Shipping
3 units in 1*40HQ container
Features:
180HP 4WD,Four-cylinder engine,12+12 gearbox, Dula-stage clutch, hydraulic steering, front tire 8.3-24, rear tire 14.9-30, PTO speed 540 and 1000r/min, suspension attachment, front and rear ballast, With hot cabin,2 sets of hydraulic valves .Tools box for tractor.
 |  |
 |  |
Specifications
Model | SY1804 |
Type | 4WD |
Size (mm) | |
Length(to front ballast) | 5120 |
Width | 2380 |
Height(to top point) | 3100 |
Wheel Tread | |
Front | 1760/1860/1960/2060 Step adjustable |
Rear | 1700-1940 stepless adjustable |
Axle Base | 2630 |
Ground Clearance | 470 |
Structure weight (kg) | 5250 |
Engine | |
Model | Six-cylinder Weichai brand engine |
Type | 6-Cylinder,Water Cooled |
Rated Power(kw) | 132.5 |
Rated speed(r/min) | 2200 |
Fuel | Diesel |
Tire | |
Front Wheel | 14.9-26 |
Rear Wheel | 18.4-38 |
Clutch | 14'' LUKE clutch,Double-stage clutch |
Steering | Hydraulic steering |
Transmission Type | 16F+8R |
Suspension Type | 3-point links |
PTO | |
Type and speed | dual speed: 760rpm/850rpm |
Spline Size | I38 Rectangle Spline with 8 teeth |
