SYNBON 50hp Farm Tractor SY504
Description

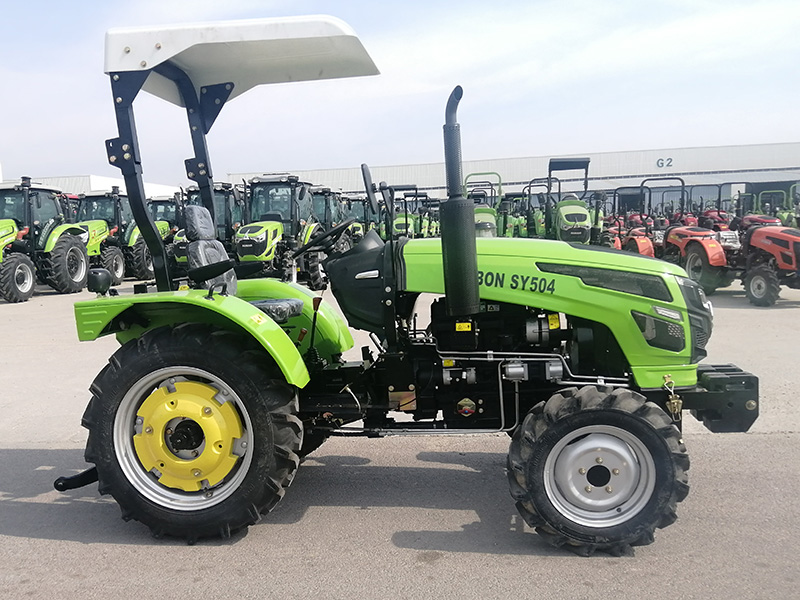

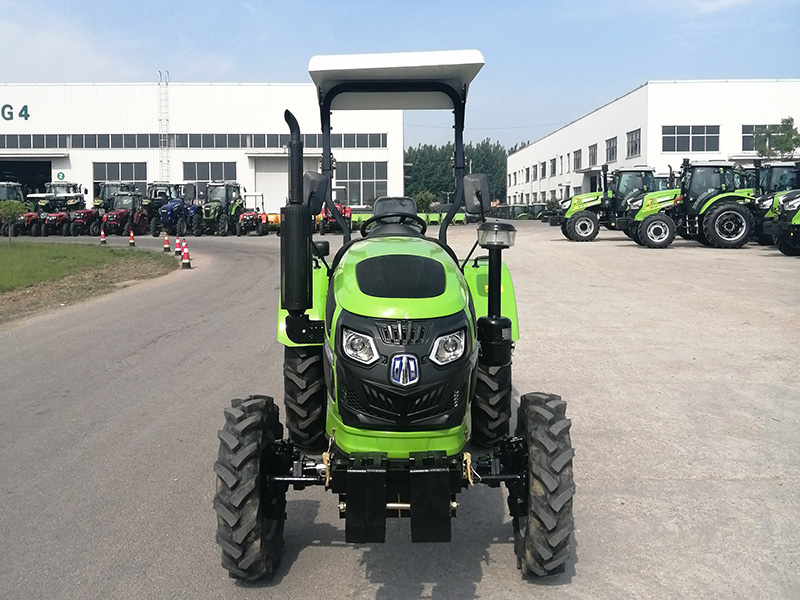

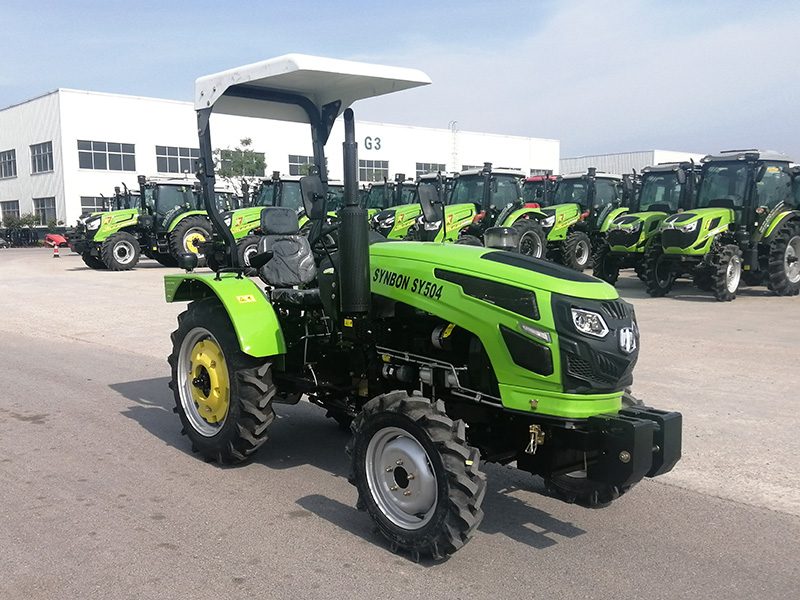

SYNBON 50HP farm tractor
4*4 ， 50hp，8F+2R Shifts,farm tractor
Description：
4WD
Power：50hp/36.8
Type: 6.00-16/9.5-24
Weight: 1360kg
Overall size : 2950*1400*2000 mm（Up to Exhaust Pipe）
Features & Details
Application:
Widely used in farmland, orchards, pastures, farms, greenhouses and other places
Tools can be selected:
Front loader, backhoe, rotary tiller, plow, harrow, lawn mower, trailer, sprayer and other agricultural tools
Optional engine: Laidong diesel engine 4L28V50 Euro 5
Specifications
Model | SY504 |
Horsepower(hp) | 50 |
Type | 4×4 Wheeled tractor |
Overall dimension（mm） | |
Length | 2950 |
Width | 1400 |
Height | 2000 |
Tread（mm） | |
Front Wheel | 1100 |
Rear Wheel | 1200 |
wheel base（mm） | 1512 |
Ground Clearance（mm） | 266 |
Structure weight（kg） | 1360 |
Front Wheel ballast（kg） | 48 |
Rear Wheel ballast(kg) | 50 |
Engine | |
Type | vertical, water cooled, four cylinder,four stork |
Rated rev. (r/min) | 2400 |
Rated power (KW) | 36.8 |
clutch | Dry-friction,single- stage |
Transmission system | |
gearbox | (4+1)X2 ,8F+2R shifts |
central transmission | Gear sector |
Tractor brake | Dry brake,discs |
Tyre | |
front wheel | 6.00-16/6.50-16 |
Rear wheel | 9.5-24/11.2-24 |
PTO shaft rev. | 540/720 r/min |
