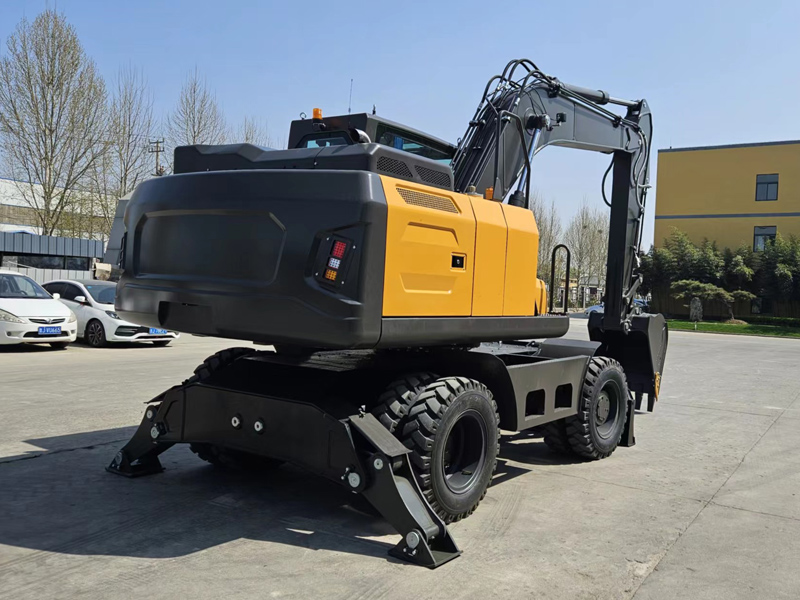

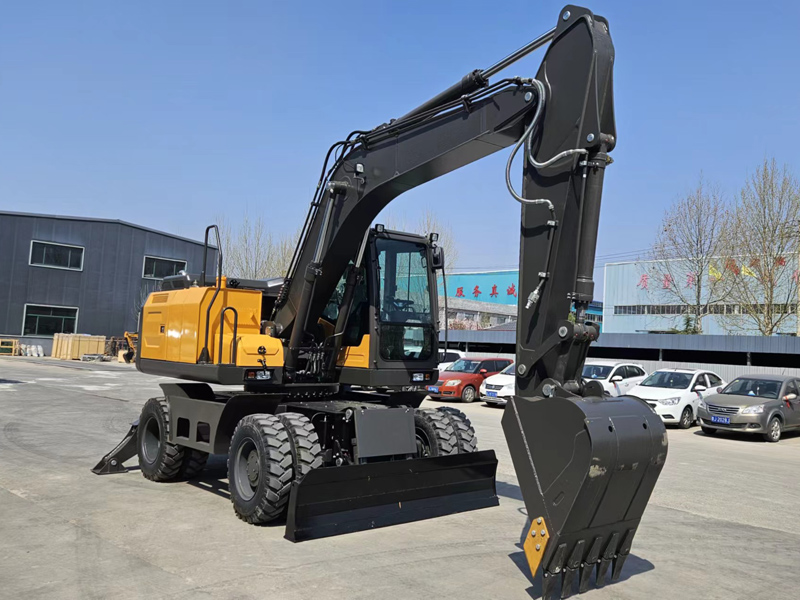

SYNBON Wheel Excavator SYL621E
Description
Operate weight 21 Ton
Bucket capacity 1.1m³
Power 153KW
Overall size 10006*2500*3515mm
Features & Details
Condition:
Urban construction, road construction, landscape engineering, farmland transformation, mining engineering, etc.
Domestic famous brand engine, strong power，less fuel consumption.
Specifications
Main Performance | ||
Bucket | 1.1 | m³ |
Swing Speed | 0-12 | r/min |
Grade ability | 25 | ° |
Max.Bucket Digging Force | 140 | kN |
Max.Arm Digging Force | 100 | kN |
Engine Model | 6BTAA5.9 | |
Power/revolution speed | 153/2000 | KW/rmp |
Tire Model | 10.00-20 | |
System Pressure | 34 | Mpa |

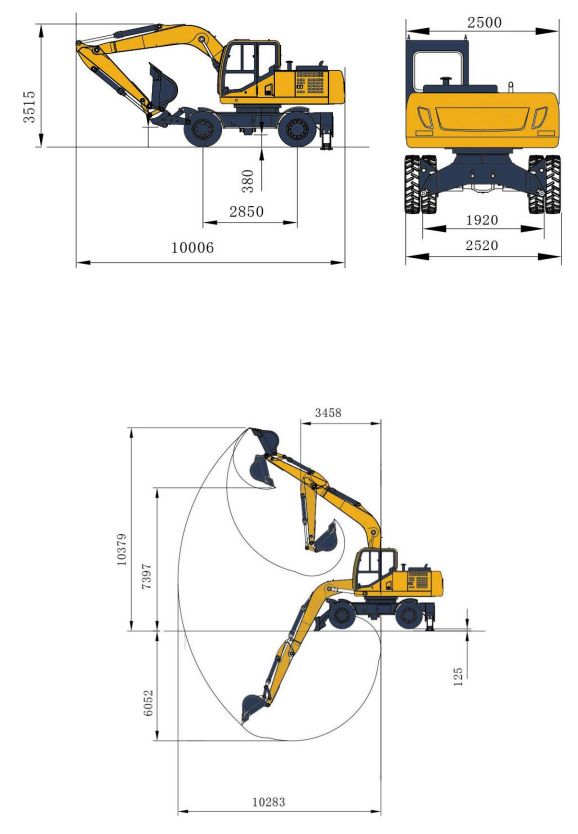

Overall Dimensions | ||
Overall L*W*H | 10006*2500*3515 | mm |
Minimum ground clearance | 380 | mm |
Axle Base | 2850 | mm |
Wheel(track) distance | 1920 | mm |
Tail Swing Radius | 2412 | mm |
Cabin Height | 3216 | mm |
Operation parameters | ||
Max.Vertical Digging Depth | 5682 | mm |
Min.Swing Radius | 3458 | mm |
Max. Digging Radius | 10283 | mm |
Max. Digging Depth | 6052 | mm |
Max. Digging Height | 10329 | mm |
Max. Dumping Height | 7397 | mm |
Max. Dozer Blade Cutting Distance | 125 | mm |
Max. Dozer Blade Lifting Distance | 410 | mm |
