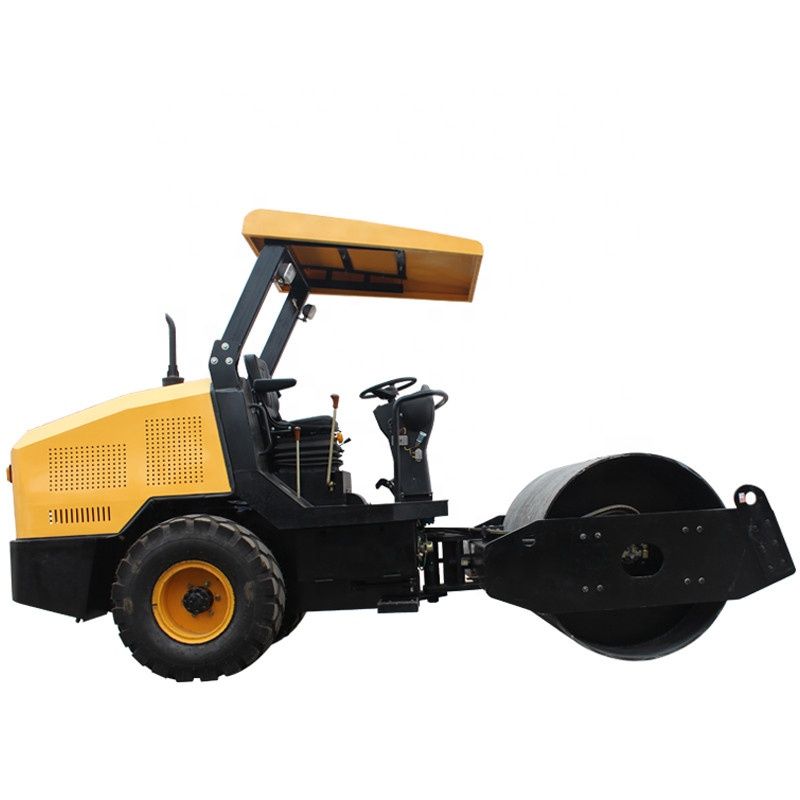

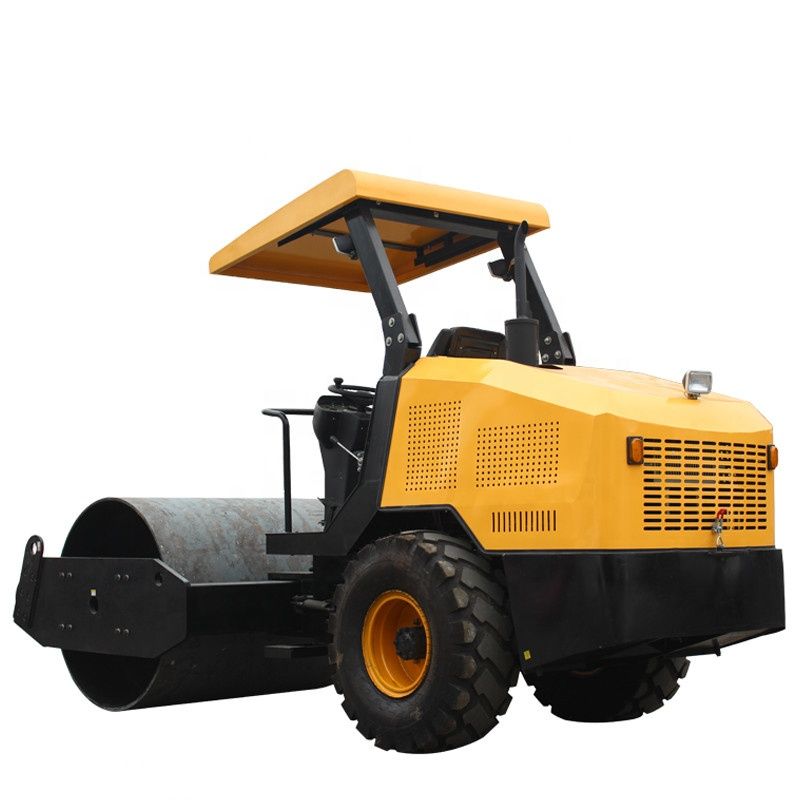

SYNBON 6Tons road roller SY602S
6Tons single drum mechanical drive vibratory road roller
Description
Working weight 6500kg
Power 60kw
Overall size(L*W*H) 4535*1820*2850mm
Condition:
For compaction of asphalt surface, compaction of gravel, sand and other projects.applied to mending and maintaining various roads, expressway, roadside, parking area, sports ground and garden lawn. They are especially suitable for compaction of narrow areas as pipeline channel and drainage trench etc.
hydraulic brake mechanism Glossy steel wheel can cover the bump to increase the compaction effect
Features & Details
Benefits
Specifications
| Model | SY602S |
| Speed | 0-101km/h |
| Steering radius | 2965mm |
| Climbing capacity in theory | 55% |
| Compaction | |
| Static load F/B | 233N/cm |
| Nominal amplitude | 1.6/0.6mm |
| Vibration frequency | 31/41Hz |
| Exciting force | 120/75KN |
| Engine | |
| Model | Changchai |
| Type | Diesel, liquid cooled,4-cylinder |
| Power | 60kw/2400rpm |
| Fuel tank capacity | 130L |
| Lubricating oil | 8.9L |
| Fuel consumption | 285g/kWh |
| Dimension | |
| Width of steel drum | 1680mm |
| Diameter of steel drum | 1200mm |
| Tread | 2400mm |
| Overall size(L*W*H) | 4535*1820*2850mm |
| Packing size | 4700*1980*1600mm |
| Weight | |
| Working weight | 6500kg |
