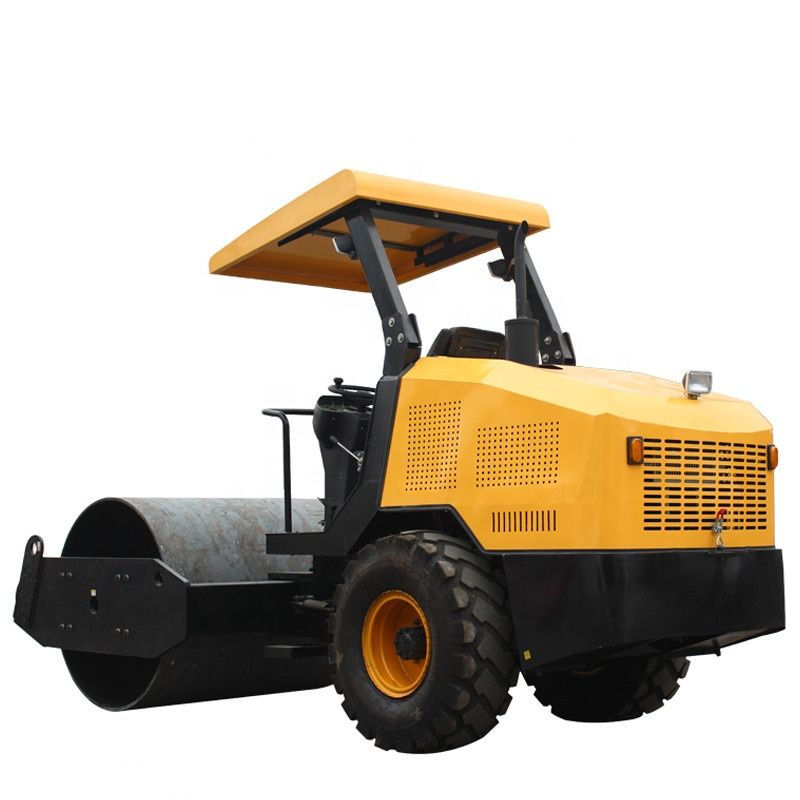

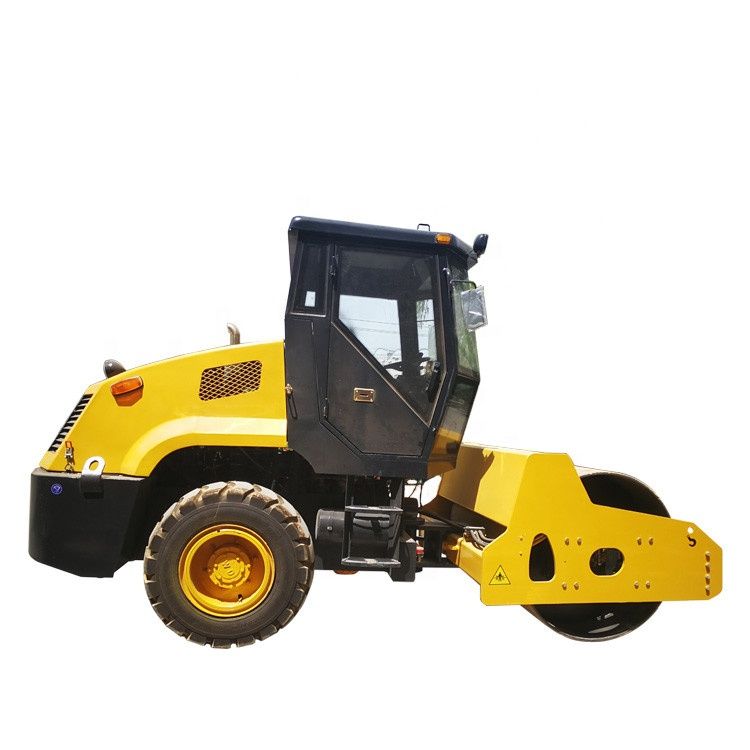

SYNBON vibratory road roller SY402S
4Tons single drum mechanical drive hydraulic vibratory road roller
Description
Power 34kw
Working weight 4000kg
Length*Width*Height 3750*1450*2430mm
Condition: This product is middle type hydraulic vibratory roller. It is mainly used for compacting various construction materials such as non-cohesive soil, sandy soil, graves, macadam aggregate mixtures. Especially suitable for compact community road, village highway, underground garage, playground and all kinds of groove earthwork backfill.
Glossy steel wheel can cover the bump to increase the compaction effecthydraulic brake.
Features & Details
Packaging
Specifications
| MODEL | SY402S | |
| Operating Mass | 4000（with Cabin） | kg |
| Exciting Force | 68 | kn |
| Vibration Frequency | 50 | Hz |
| Drum Width/Diameter | 1300/1000 | mm |
| Static Linear Load(Front) | 110 | N/cm |
| Travel Speed | 2/5/8/11 | km/h |
| Gradeability | 30 | % |
| Minimum turning radius | 4900 | mm |
| Wheelbase | 2110 | mm |
| Min. ground clearance | 300 | mm |
| Battery Voltage | 12 | V |
| Diesel/ Hydraulic tank capacity | 74/74 | L |
| Diesel Model | ZN490Q | |
| Diesel Power | 34 | kw |
| Dimension(L*W*H) | 3750*1450*2430 | mm |
