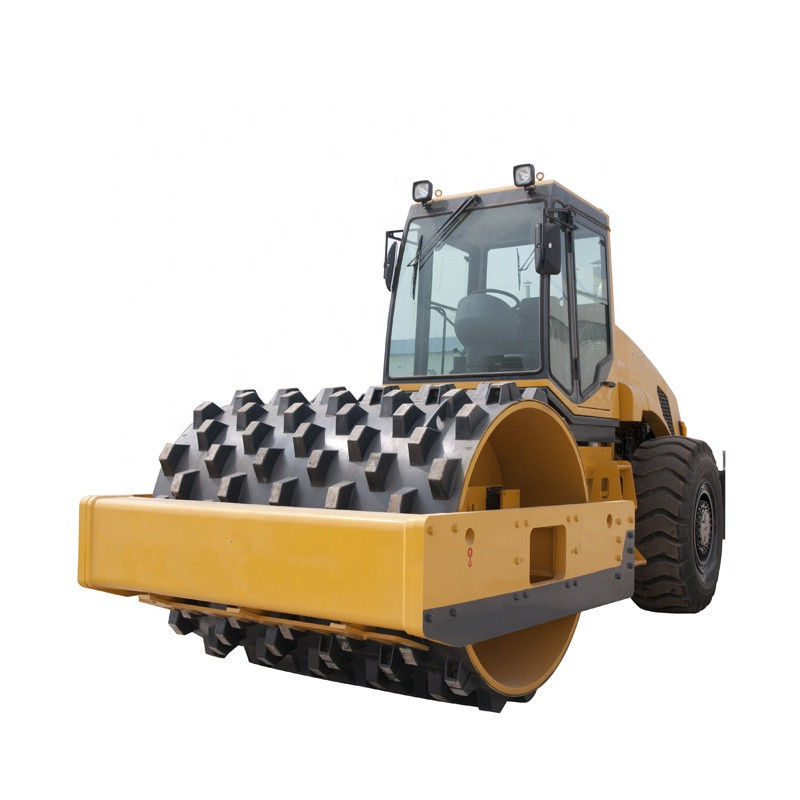

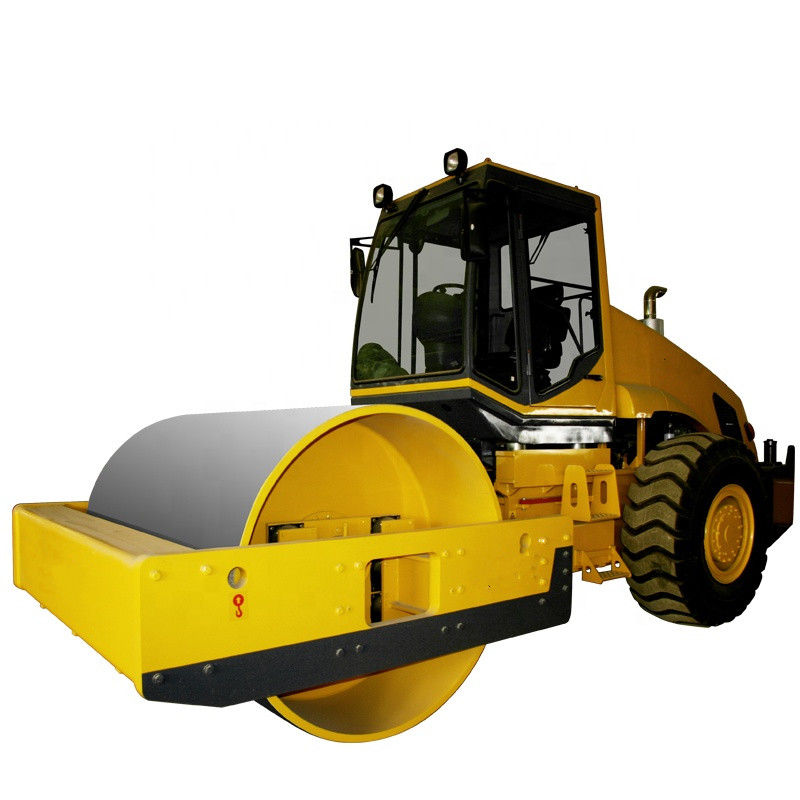

SYNBON vibrator road roller SY202S
20Ton,mechanical drive Single drum hydraulic vibrator road roller
Description
Operating mass 20000KG
Power 97KW
Overall dimension (L*W*H) 6200*2280*3050mm
Condition:
They are suitable for non-cohesive materials, such as sandy soil,ravel,crushed stones, rock fillings and slightly cohesive soils, designed for large foundation constructions such as high-class highways, mines, dams, airports, harbors, railways and industrial areas etc.
mechanical drive Single drum
Features & Details
Main Features:
1,Mechanical travel drive, double amplitude, hydraulic vibration and steering with optimal function/price ratio and reliable performance.
2,Reliable CUMMINS diesel engine for convenient operation and maintenance.
3,Two sets of brake devices, a hand brake and foot pedal brake, assure the machine
Specifications
| Model | SY202S | |
| Operating mass | 20000 | kg |
| Static linear load | 380 | N/cm |
| Vibration amplitude | 1.9/0.95 | mm |
| Centrifugal force | 390/280 | Kn |
| Vibration frequency | 30 | Hz |
| Travel speed | 2.0, 4.0, 10.5 | Km/h |
| Steering angle | 35 | ° |
| Ground clearance | 432 | mm |
| Electrical voltage | 24 | V |
| Vertical oscillation | 8 | ° |
| Tire size | 23.1-26 | |
| Grade ability | 35 | % |
| Turning radius | 7000 | mm |
| Overall dimension (L*W*H) | 6200*2280*3050 | mm |
| Vibration drum diameter | 1570 | mm |
| Drum rim thickness | 24 | mm |
| Drum width | 2100 | mm |
| Wheel base | 3265 | mm |
| Diesel engine power | 97/2200rpm | Kw |
| Diesel engine model | CUMMINS6BT5.9 | |
| Fuel tank capacity | 220 | L |
| Hydraulic tank capacity | 160 | L |
