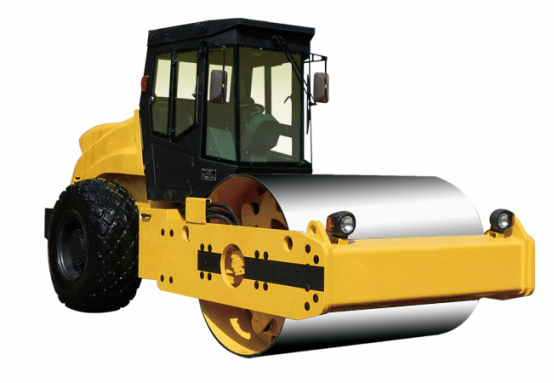

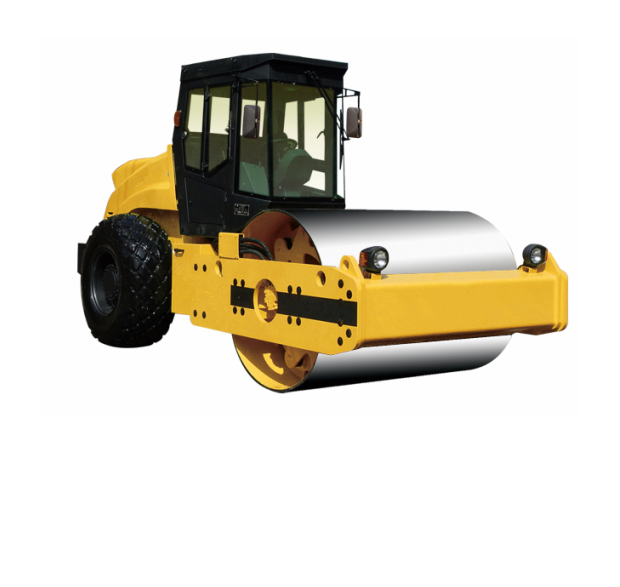

SYNBON Vibratory roller SY142S
14ton single drum Mechanical drive hydraulic vibratory road roller
Description
Operating mass 14000kg
Power 110kw
Overall size 5820*2278*3000mm
Condition:
Single drum vibratory roller is suitable for road, square, factory, large scale pavement project
Mechanical drive
Features & Details
Benefits
Specifications
| Model | SY142S | |
| Drive | Mechanical drive | |
| Operating mass | 14000 | Kg |
| Static linear load | 342 | N/cm |
| Vibration amplitude | 30 | Hz |
| Vibration frequency | 1.8 | mm |
| Centrifugal force | 290/160 | KN |
| Travel speed | Hz | |
| 1st gear | 2 | |
| 2nd gear | 4 | |
| 3rd gear | 10.5 | |
| Grade ability | 30 | % |
| Turning angle | 35 | |
| Ground clearance | 360 | mm |
| Electrical voltage | 24 | v |
| Turning radius | 7000 | mm |
| Vertical oscillation | 8 | |
| Type size | 23.1-26 | |
| Overall length | 5820 | mm |
| Overall width | 2278 | mm |
| Overall height | 3000 | mm |
| Vibration round width | 2100 | mm |
| Drum diameter | 1400 | mm |
| Drum rim thickness | 24 | mm |
| Wheelbase | 3160 | mm |
| Diesel model | CUMMINS6BT5.9 | |
| Diesel power | 110 | KW |
| Diesel speed | 2000 | r/min |
| Fuel tank capacity | 220 | L |
| Hydraulic tank capacity | 160 | L |
