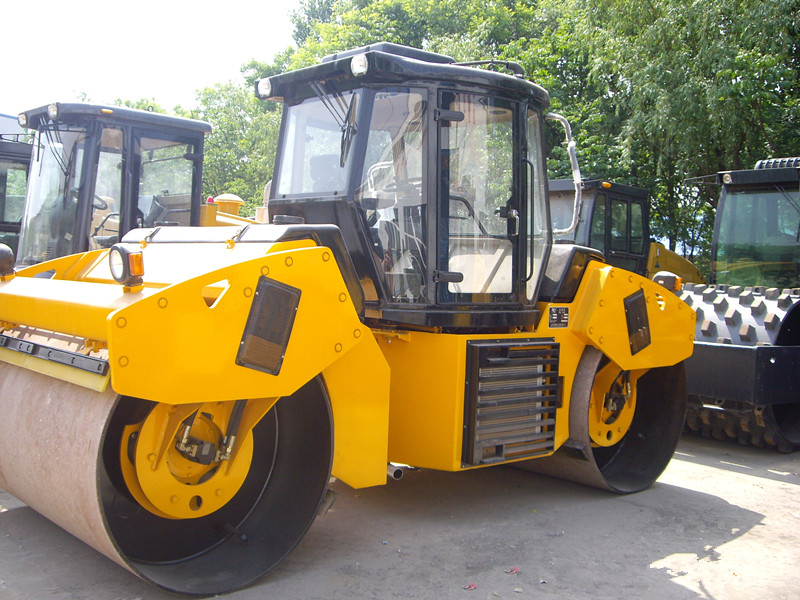

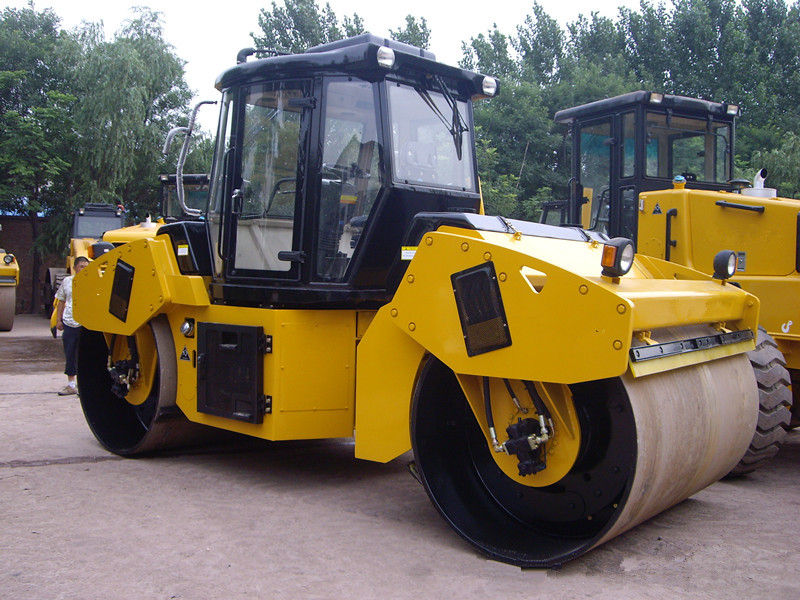

SYNBON vibratory road roller SY208H
8ton Full hydraulic double drum double drive vibratory road roller
Description
Operating mass 8000kg
Power 75kw
Overall size 4558*1840*2674mm
Condition:
Machines use asphalt, sand and other compacted treatment road, factories, gardens of large and medium-sized paving projects
Full hydraulic double drum double drive vibratory
Features & Details
|
|
|
|
Specifications
| Model | SY208H | |
| Operating mass | 8000 | kg |
| Font axle load | 4000 | kg |
| Rear axle load | 4000 | kg |
| Static linear load | 231 | N/cm |
| Crabwise movement distance | ±170 | mm |
| Water tank capacity | 2*400 | L |
| Fuel tank capacity | 80 | L |
| Hydraulic tank capacity | 65 | L |
| Vibration frequency | ||
| High ampl | 0.67 | mm |
| Low ampl | 0.34 | mm |
| Vibration frequency | ||
| High ampl | 45 | Hz |
| Low ampl | 50 | Hz |
| Centrifugal force | ||
| High ampl | 90*2 | KN |
| Low ampl | 69*2 | KN |
| Travel speed | 0-11.1 | km/h |
| Turning radius | 6000 | mm |
| Grade ability | 40 | % |
| Steering angle | ±35 | . |
| Drum diameter | 1150 | mm |
| Drum width | 1730 | mm |
| Drum rim thickness | 16 | mm |
| Transverse swing angle of the vibrating wheel | ±8 | . |
| Type of water spray | pressure | |
| Wheel base | 3217 | mm |
| Overall size(L*W*H) | 4558*1840*2674 | mm |
| Ground clearance | 324 | mm |
| Diesel model | 4BT3.9 | |
| Diesel power | 75 | kW |
