COMPACTOR

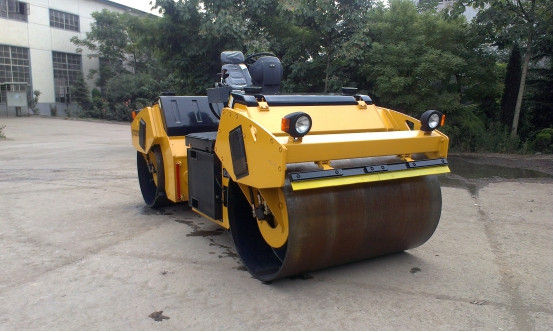

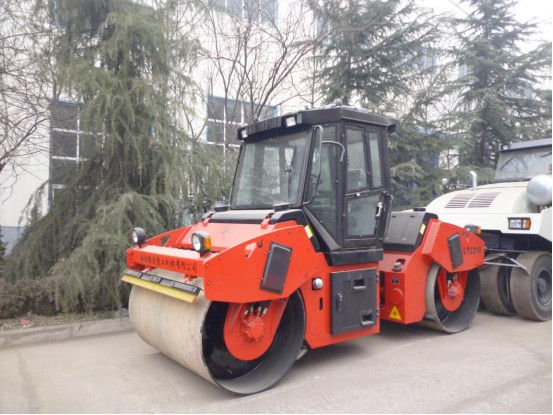

SYNBON vibratory road roller SY210H

10ton Hydraulic double drum double drive hydraulic vibratory road roller

Description

Operating mass 10000kg

Power 75kw

Overall size 4558*1840*2674

Condition:

It is Primarily used for the compaction of road bituminous course, sand gravel mixtures and RCC material, Being a universal compaction equipment for highway, municipal road, park area and industry ground etc.


Full hydraulic double wheel drive, continuously variable speed, double wheel vibration, variable frequency amplitude.
Get a quote

Features & Details

SY210H Hydraulic vibratory rollers are manufactured according to international advanced technology and by use of imported components from abroad. The machine is a double drum tandem vibratory roller. It is Primarily used for the compaction of road bituminous course, sand gravel mixtures and RCC material, Being a universal compaction equipment for highway, municipal road, park area and industry ground etc.


Main Features Cabin with air conditioning

Full hydraulic two wheel drive and vibration.

Double frequency double vibration system.

Hydrostatic center articulated steering,patented crab mechanism.

Cabin with air conditioning ,comfortable and spacious,the flexible steering seat facilitates the operation.

The driver

Specifications

ModelSY210H
Operating mass10000kg
Font axle load5000kg
Rear axle load5000kg
Static linear load238N/cm
Form of framefork-type
Crabwise movement distance±170mm
Water tank capacity2*400L
Fuel tank capacity80L
Hydraulic tank capacity65L
Vibration frequency
High ampl0.67mm
Low ampl0.34mm
Vibration frequency
High ampl45HZ
Low ampl50HZ
Centrifugal force
High ampl90*2KN
Low ampl69*2KN
Travel speed0-11km/h
Turning radius6000mm
Grade ability40%
Steering angle±35°
Drum diameter1150mm
Drum width1730mm
Drum rim thickness16mm
Type of water spraypressure
Wheel base3217mm
Overall size (l*w*h)4558*1840*2674mm
Ground clearance324mm
Diesel modelCUMMINS4BT3.9
Diesel power75KW
Diesel speed2400r/min
