Crawler Excavator

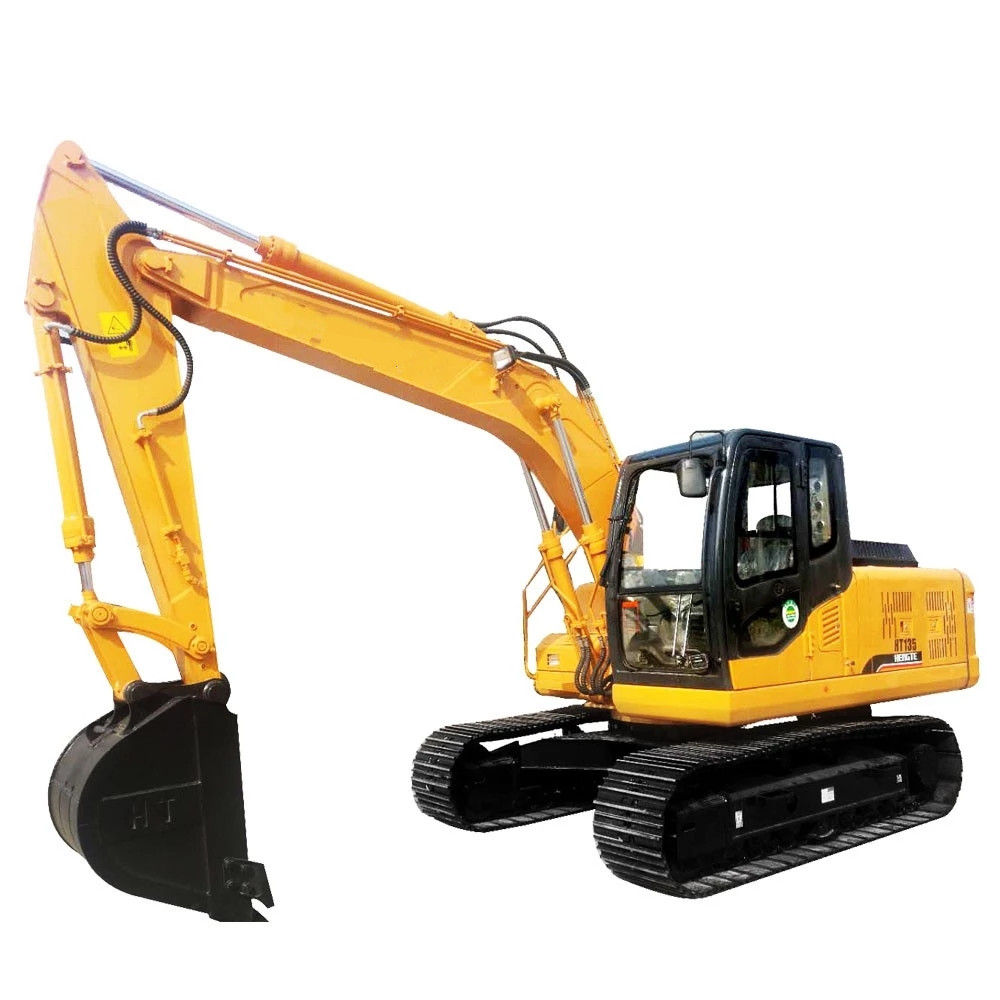

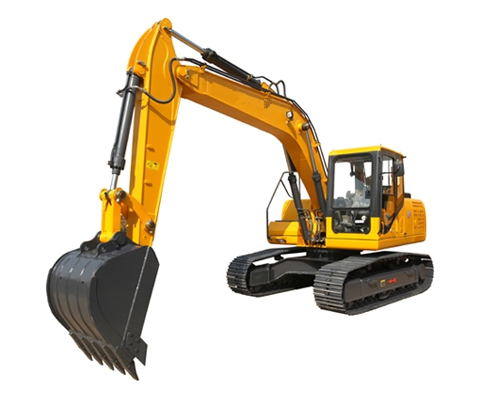

SYNBON Crawler Excavator SY615

13.5 ton Hydraulic Digging Construction Equipment mining machinery crawler excavator

Description

Operating Weight 13.5ton

Bucket Capacity 0.6m³

Power 85KW

Overall size 7635*2500*2750MM

Condition:

Urban construction, road construction, landscape engineering, farmland transformation, mining engineering, etc., working conditions are narrow and complicated


advanced turbocharged engine ,imported international brands hydraulic parts,heavier type front and rear drive axle, gearbox
Get a quote

Features & Details

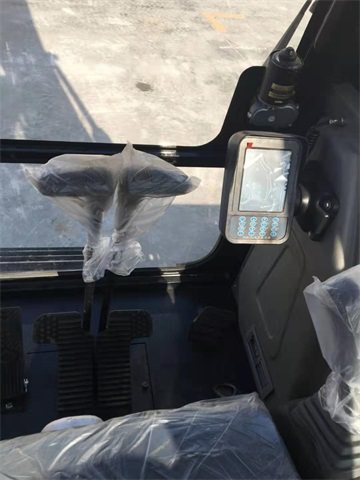

1 .Electrical system: with colorful LCD display, with self-test, monitoring, emergency fault alarm, human-computer interaction and good, high-profile electrical control software, higher reliability.

2. Power system: advanced turbocharged engine exhaust enough power reserves, it is possible to maximize the power of the engine to achieve the perfect match, reducing power losses.

3. Hydraulic system: imported international brands hydraulic parts, power loss, fast action, complex motor coordination, high efficiency and energy saving, reliability and long service life.

4. Walking System: use heavier type front and rear drive axle, gearbox, providing higher carrying capacity.

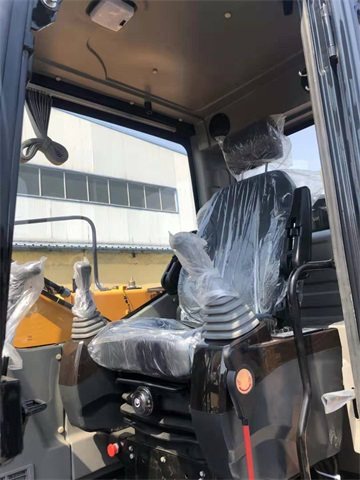

5. Cab: new style cab, new interior design, vision, bright and spacious, humane front gear mechanism, adjustable suspension seat with a high-grade, silicone shock absorption, superior driving environment.

6. Cooling system: parallel cooling installation, installation and removal are easy to clean; it has very high cooling efficiency.

7. Can be attached with many optional attachment or accessories including hydraulic hammer, sugar cane log grapple, etc.



Specifications

Performance Parameter
Operating Weight13.5ton
Bucket Capacity0.6
Swing Speed0-12Rmp
Gradeability30°
Bucket Max.Digging Force91KN
Arm Max.Digging Force55KN
Engine ModelYC4D115
Power/Rotation Speed85/2200KW/Rmp
Tyre Model-
System Pressure32MPa
Working Range
Max.Digging Height8540MM
Max. Dumping Height6125MM
Max.Digging Depth5095MM
Max.Vertical Digging Depth4650MM
Max.Digging Radius8000MM
Min.Swing Radius2445MM
Dimensions
Length*Width*Height7635*2500*2750MM
Cabin Height2750MM
Sproket To Idler2950MM
Axle Distancer2000MM
Min.Ground Clearance400MM
Tail Swing Radius2340MM
