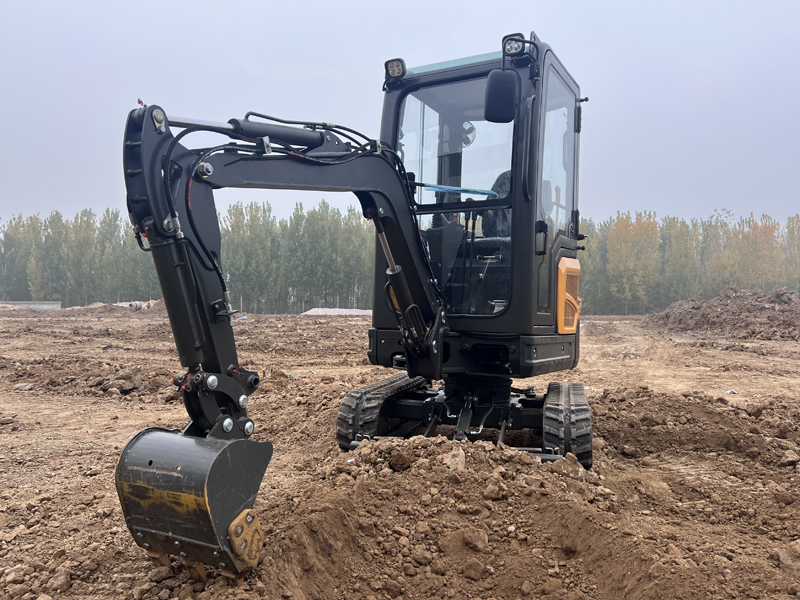

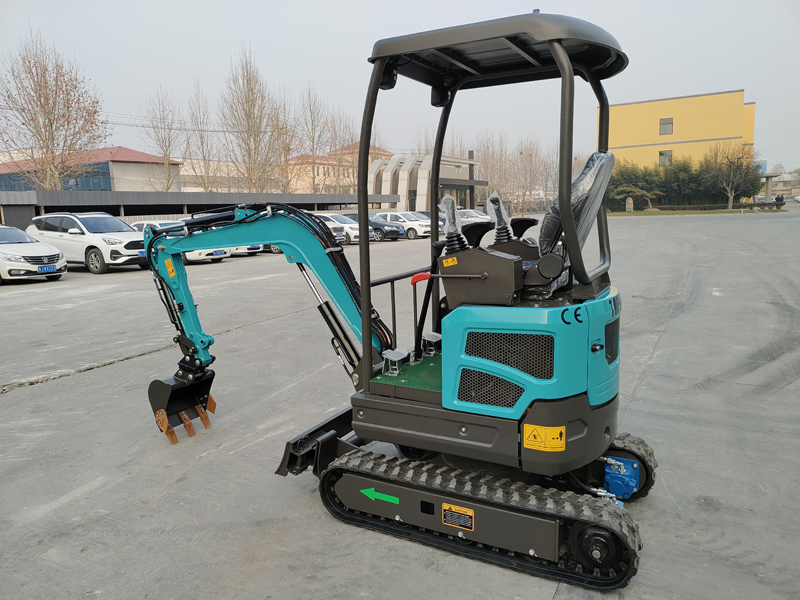

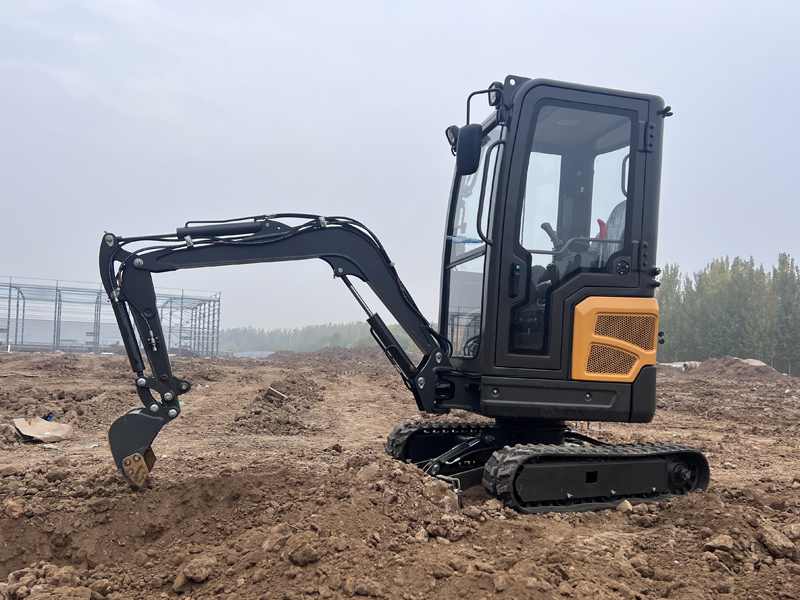

MINI EXCAVATOR SY601.5
Description
Operate weight 1.4Ton
Bucket capacity 0.025m³
Power :10.4KW
Overall size :3329×990×2267mm
Features & Details
Condition:
Urban construction, road construction, landscape engineering, farmland transformation, mining engineering, etc., working conditions are narrow and complicated
Optional tools: Cabin Breaker; quick hitch; auger; rake, grapple, vairous buckets
1.Special design on separating engine and radiation space, using enhanced cooling fan to increase cooling efficiency
2.Famous brand hydraulic system parts ensure the stable quality.
3.Equipped with double fuel filter to guarantee fuel purity to protect engine
4.Extend hydraulic line for various attachments.
5.Comfort cabin, wide and open sight make operator easy to work.
6.Could be widely used in gardening, orchard, farming, basement reconstruction, waste residue carrying in coal washing factory, papermaking factory etc. and could replace 4~5 manpower.
Specifications
Overall Dimensions | |
Overall Length | 3329 mm |
Overall Width | 990 mm |
Overall Height | 2267 mm |
Mini Ground clearance | 153 mm |
Track width | 200 mm |
Axle base(Track length on ground) | 1190 mm |
Track Gauge | 790(1100) mm |
Swing radius at tail | 655 mm |
Swing radius at front | 1812 mm |
Height of blade | 210 mm |
Max.Dozer blade cutting | 229 mm |
Max.Dozer blade lifting | 236mm |
ENGINE | |
Model | Kubota D722 10.4KW/2500rpm |
Max. Turque | 45N.m/2500RPM |
Type | In-line, water cooled, normally aspirated |
Displacement | 0.719 |
No. of cylinder | 3 |
Main Performance | |
Swing Speed | 12--13r/min |
Traveling Speed(high/low) | 2.1/3.2km/h |
Grade ability | 58% |
Max. Bucket Digging Force | 9 kN |
Arm Digging Force | 5.5 kN |
Ground Pressure | 23 Kpa |
Hydraulic system pressure | 20Mpa |
Machine Weight | 1400 KG |
Fuel Tank capacity | 14.5 L |
Hydraulic Tank capacity | 14.5 L |
Engine oil capacity | 3.2 L |
Operation parameters | |
Bucket Capacity | 0.025 m3 |
Max. Digging Radius | 3529 mm |
Max. Digging Depth | 2017 mm |
Max. Digging Height | 2955 mm |
Max. Dumping Height | 2077 mm |
Max. vertical digging depth | 1610 mm |
