Model

SY504C

Horsepower

50HP

Dimensions

Length 2400mm Width 1300mm Height 1300mm

Track size

Length 230*72*54 Width 230mm ，The track has a full outer diameter of 127, an inner diameter of 80, a chassis height of 19, and a power output of 40 from the ground.

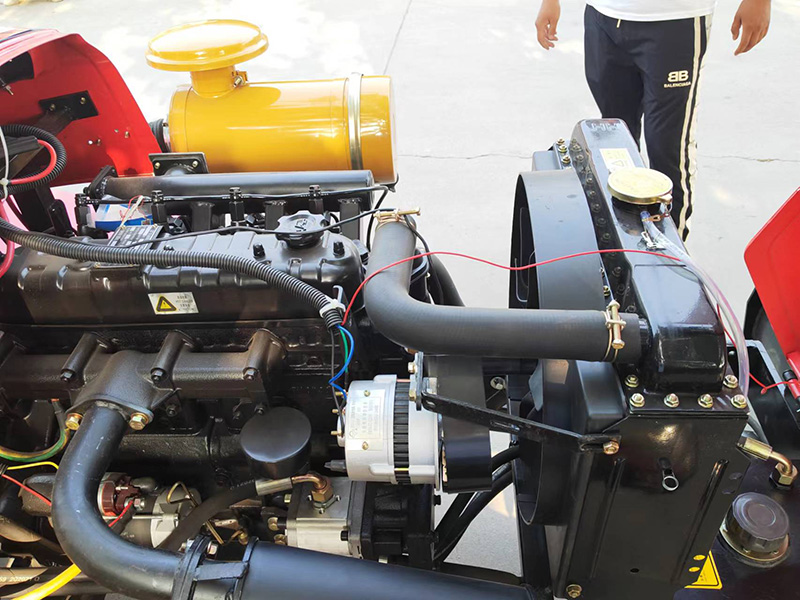

Diesel Engine Brand

Laidong engine

Engine speed

2400 rpm

Whole machine weight

1300 kgs

Fuel consumption

About 2-3 liter/mu

Walking speed

The fastest 25 KM/h

Gearbox

Patented custom gearbox

Gear

4 forward gears, one reverse gear, divided into high and low speed, a total of 10 gears

track

The crawler has strong grip ability, suitable for harsh terrain operations, small turning torque, flexible turning, and can be used for both water and drought

air filter

Paper filter, clean the air filter after each work, blow the dust inside

Water tank

After receiving the machine, check whether there is water in the water tank. There should be no shortage of water in the water tank, and antifreeze should be added when it is cold.

transfer method

Drive shaft drive, hydraulic drive, not mechanical

Additional implements:

Compatible with all wheel tractor implements
