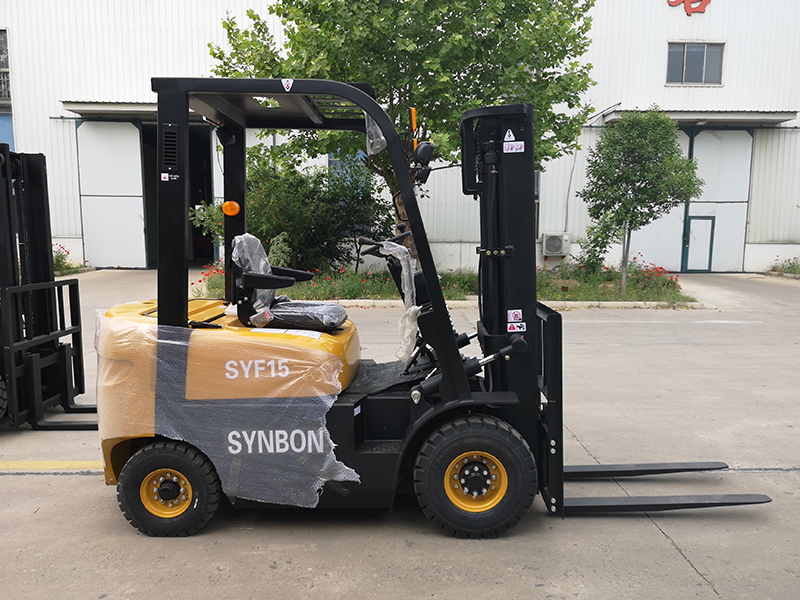

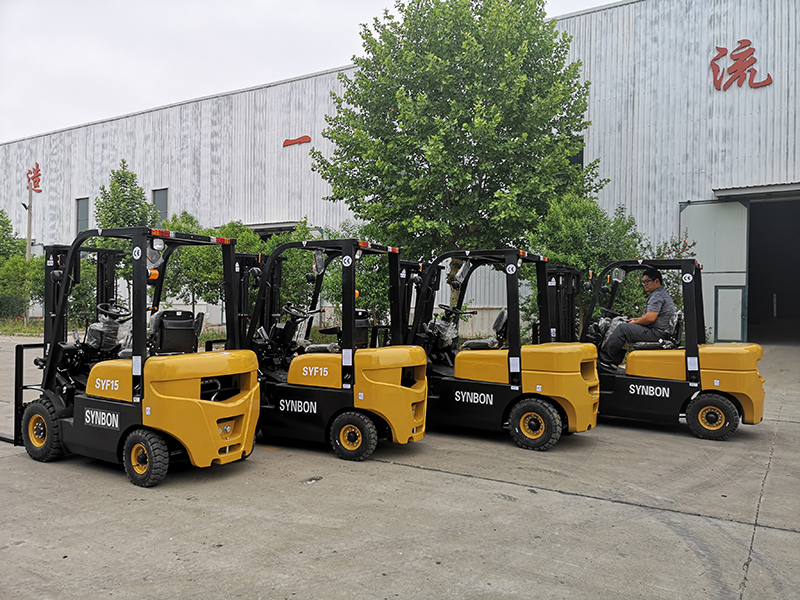

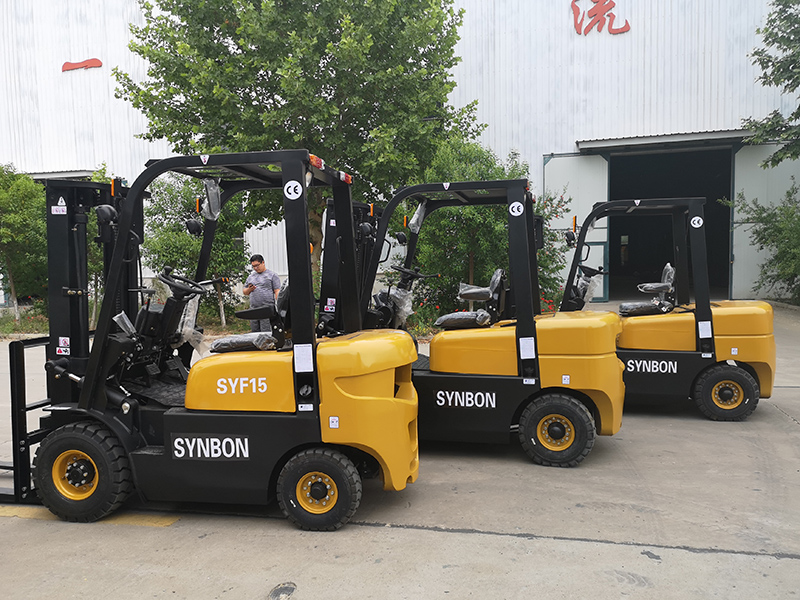

Model

SYF15

Rated capacity

1500kg

Load center

500mm

Power type

Diesel

Transmission

Automatic

Dimensions

Lifting height

3000mm

Free lifting height

70mm

Turning radius

2000mm

Over Size(L*W*H)

3195*1085*2085 mm

Overall height(mast lowered)

1995mm

Overall height(mast raised)

4030 mm

Overall height(overhead guard)

2085mm

Fork length

920mm

Fork width

120mm

Fork thickness

35mm

Performance

Max. driving speed(with/without load)

14.5/15 km/h

Max. lifting speed(with load)

500 mm/s

Max. traction(with/without load)

14.4/8.4 kn

Gradeability(with/without load)

15/20 %

Tilting angles(forward/backward)

6/12 °

Service weight

2650kg

Engine

Engine model

QUANCHAI/XINC485 engine HAI

Power

30/32 kw

41/43.5 hp

Rated speed

2600 rpm

Displacement

2.07L

No. of cylinder

4

Wheel

Front overhang

430mm

Wheel base

1450mm

Front tread

890mm

Rear tread

920mm

Front tire

6.50-10-10

Rear tire

5.00-8-10
