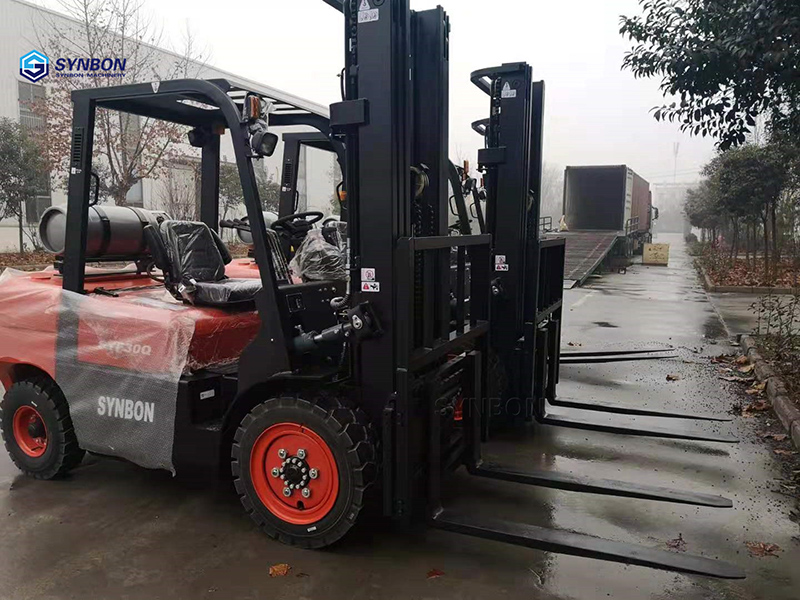

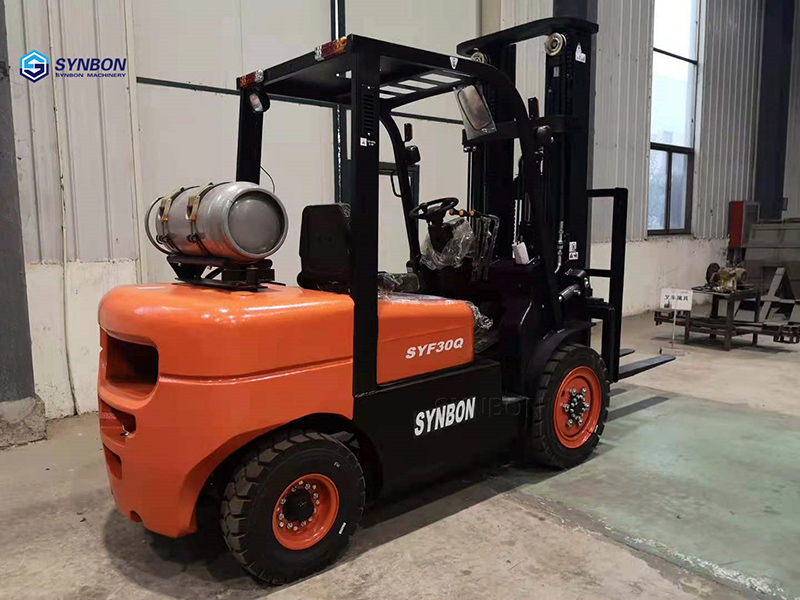

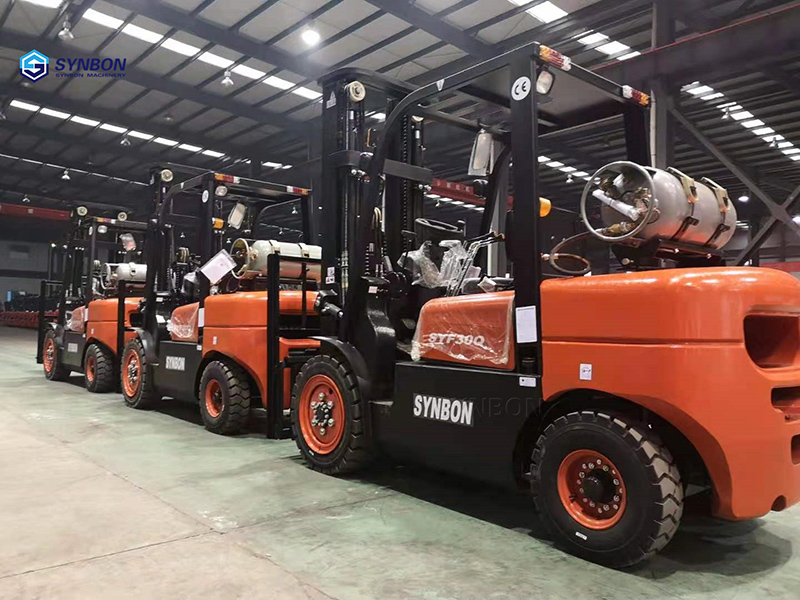

3TONS LPG/GASOLINE FORKLIFT TRUCK SYF30Q
Description
Operate weight：3.0 Ton
Lifting height：3000mm
Service weight: 3500kg
Overall size : 3800*1230*2110 mm
Features & Details
Application industries: warehousing, manufacturing, post offices, libraries, ports, terminals and airports, tobacco, medicine, food, chemicals, hazardous locations and special industries
Specifications
Main specification: CHINA BAIYANG BRAND GAOSLINE ENGINE; AUTOMATIC TRANSMISSION; 2-STAGE 3000MM LIFTING HEIGHT; 1220MM FORK; PNEUMATIC TIRE; WARNING AND REAR LIGHT; SPECIAL-RADIATOR FOR TOP HOT AREA. | ||
Rated capacity | kg | 3000 |
Load center | mm | 500 |
Power type | LPG/Gasoline | |
Transmission | Automatic | |
Lifting height | mm | 3000 |
Free lifting height | mm | 80 |
Turning radius | mm | 2500 |
Overall length | mm | 3800 |
Overall width | mm | 1230 |
Overall height (mast lowered) |
mm | 2110 |
Overall height (mast raised) |
mm | 4270 |
Overall height (overhead guard) |
mm | 2110 |
Fork length | mm | 1220 |
Fork width | mm | 125 |
Fork thickness | mm | 45 |
Max. driving speed (with/without load) |
km/h | 18/20 |
Max. lifting speed (with load) |
mm/s | 400 |
Max. traction (with/without load) |
kn | 15.5/10.5 |
Gradeability (with/without load) |
% | 15/20 |
Tilting angles (forward/backward) |
° | 6/12 |
Service weight | kg | 4320 |
