Skid Steer Loader

Skid Steer Loader SY65

Four-wheel drive, Hydraulic joystick controls small skid steer loader.

Description

Total weight: 3000KG

Tipping load: 1900KG

Rated operating capacity: 950KG

Bucket capacity: 0.5m3

Rated power: 55KW

Condition:

widely used for road maintenance, road-surface milling, pipe laying, cable laying, landscaping, snow clearing, cargo transporting, excavating and breaking, etc.

Four-wheel drive, Hydraulic joystick.
Get a quote

Features & Details

Description

Front shovel skid steer loader, four-wheel drive, imported hydraulic components, easy to operate. Auxiliary tools can be used with the Bobcat Skid Steer Loader. CE certification of well-known brand engines meets Euro III emission standards.


Features

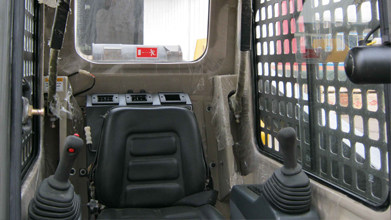

New safe and comfortable operating environment, highly reliable ROPS and FOPS cabins.

1,The upper cover is easy to open. The cabin is turned at a wide angle for easier maintenance.

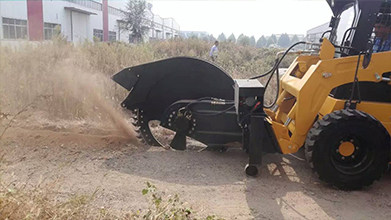

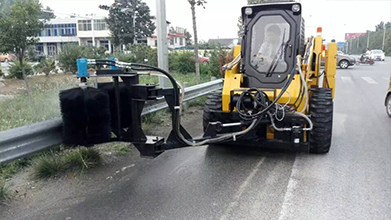

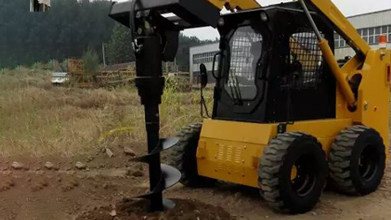

2. Wide range of applications, can be used with 40 kinds of accessories, auger, crusher, slitting machine, 4-in-1 bucket, pallet fork and so on.


Benefits

1, four-wheel drive, 360-degree steering.

2.Compact structure, small size, used in a variety of small, low and complex workplaces.


Detail Picture

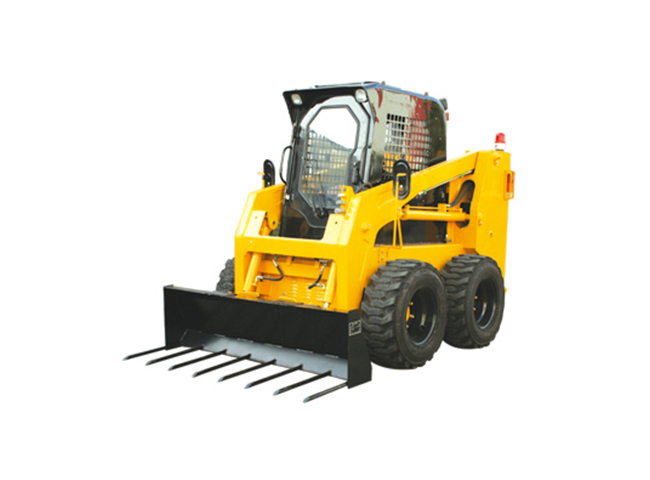

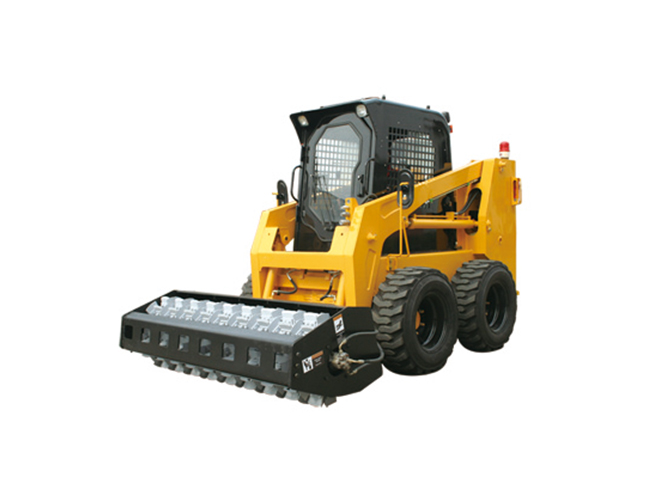

SYNBON skid steer loader Series


Packaging and Shipping

2 sets in 1*20GP container , 4 sets in 1*40HQ container


FAQ

Q1. What is your production strength?

Over10 years of wheel loader production experience, with an annual output of 600units

Our wheel loader have passed the ISO 9001 international quality certification system and China 3C quality system. We have obtained EAC and CE certification abroad.

Q2 Which countries have you exported?

Myanmar, Thailand, Kazakhstan, Uzbekistan, Russia, Ukraine, Australia, Brazil, Colombia, Germany, Czech Republic, Sudan, Tunisia, Benin, Congo.


Q3 What is your terms of payment?

A: T/T 30% as deposit, and 70% before delivery. Weand#39;ll show you the photos of the products and packages before you pay the balance.


Q4. How about your delivery time?

A: Generally, it will take 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. Sometimes we have some in stock.


Q5. What is your warranty policy?

A: We can supply one year warranty for our machines. We will provide parts as free within warranty. We can provide internet or calling service at any time.

Specifications

ModelSY65
Ope B2:H27rating load (kg)950
Max Speed(km/h)12
Rated flux (L/min)75
Tire(track) model12-16.5
Rated power (Kw)55
Fuel tank capacity (L)80
self weight bucket (kg)3000
Tipping load(kg)1900
Bucket capacity (m3)0.5
Overall operating height (mm)4000
Height to bucket hinge pin (mm)3100
height to top of cab (mm)2160
Height to bottom of level bucket(mm)2933
Overall length ithout bucket(mm)2750
overall length with bucket(mm)3490
Dumping angle at maximum height(° )40
Dumping height(mm)2400
Dumping reach(mm)750
Rollback o bucket on ground(° )30
Rollback of bucket at full height(° )104
Wheelbase(mm)1085
Ground clearance(mm)205
Angleof departure(° )20
Front turning radins without bucket(mm)1204
Front tuning radius(mm)2030
Rear tuning radius(mm)1706
Rear axle to bumper (mm)1082
Tread width,enterline to centerline (mm)1500
Width (mm)1880
Bucket width (mm)1880


Get a quote
