SLIPFORM PAVER

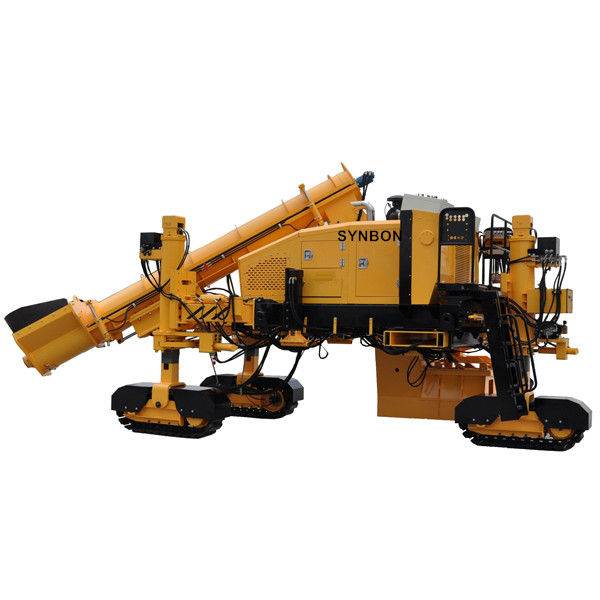

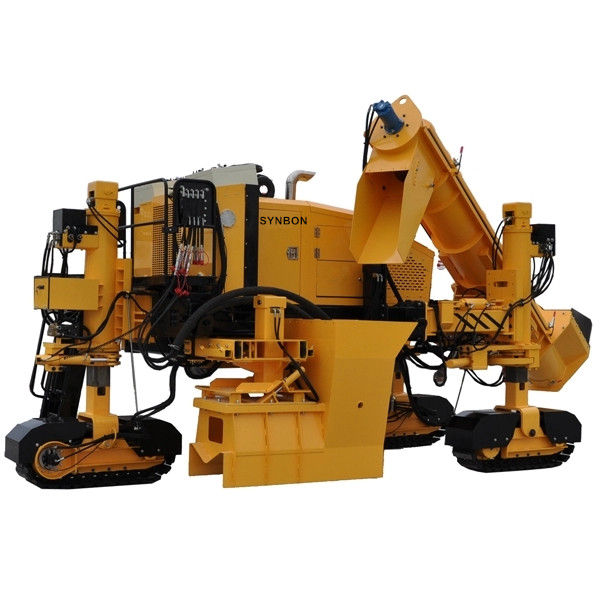

SYNBON Slipform Paver SYSP400

SYNBON Automatic Slipform paver concrete curb paver SYSP400

Description

Operating weight 11700KG

Engine Diesel Engine

Power 97kW/2200rpm

Overall size 6975*2500*3420mm

Condition:

Can Work On Every Kind Of Road (such as soil road ,sand road) Widely used in highway and municipal road curbs molding.


CUMMINS diesel engine,U.S.A hydraforce brand hydraulic control valve,With Italy brand quick plugs for external connections
Get a quote

Features & Details

1.With great function controller, automatic calculation, suitable for kinds of projects

2. With imported brand CUMMINS diesel engine

3.With imported Danfoss hydraulic variable plunger pump, drives machine in stepless speed

4.With U.S.A hydraforce brand hydraulic control valve, to control each function intelligently

5. With hydraulic rod, high frequency and strong power

6. The crawler walking mechanism with automatic tension cylinder to increase life of crawler

7. With patented steering system, flexible and convenient

8. With kinds of walking modes which can quickly switch

9. With pressure monitors for each work mechanism to supervise in real time

10. The mold hanging, dismantle hydraulically, easy working and labor saving

11. With hydraulic high pressure washing pump, can clean machine any time

12. With Italy brand quick plugs for external connections of hydraulic powers, smooth insertion and extraction, no oil leak


Specifications

TypeSYSP400
Engine
ModelCummins 4BTA 3.9
TypeDiesel Engine, liquid cooled, four cylinder
Power97kW/2200rpm
Engine oil volume9L
Traveling system
Traveling modeBy crawler
Driving modeBy hydraulic
Steering modeCollaborative/yYaw/Front wheel/Rear wheel/Automatic
Traveling speed0-30m/min
Working speed0-15m/min
Mold
Mold traverse adjustment1000mm
Mold height adjustment400mm
Max. height of the mold1300mm
Max. width of the mold1300mm
Vibrating rod
Hydraulic vibrating rod port4
Volume
Fuel tank volume120L
Hydraulic tank volume280L
Water tank volume120L
Machine height adjustment
Hydraulic height adjustment980mm
Mechanical height adjustment300mm
Dimension
Transport size6975*2500*3420mm
Weight
Weight11,700kg
