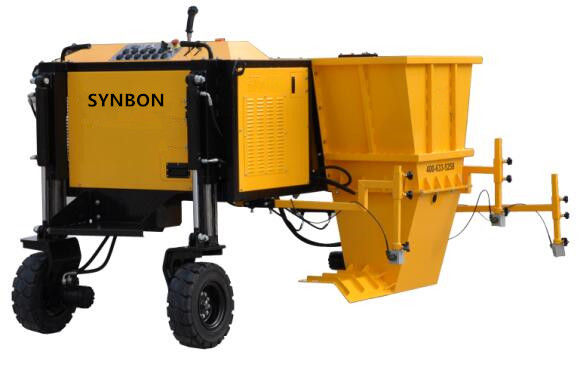

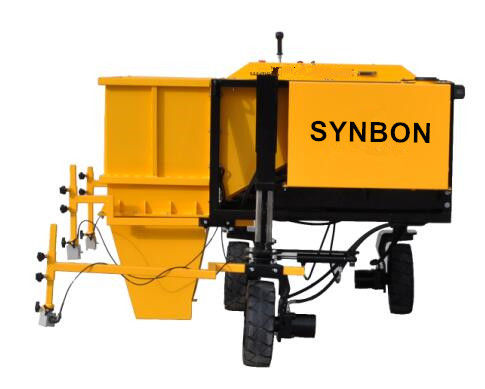

SYNBON Automatic Slipformpaver SYSP300
SYNBON Automatic Slipform paver concrete curb paver SYSP300
Description
Operating weight 1200KG
Engine Gasoline Engine
Power 20hp/3600rpm
Overall size 2660*1970*1450mm
Condition:
Can Work On Every Kind Of Road (such as soil road ,sand road) Widely used in highway and municipal road curbs molding.
U.S.A Eaton driving motor,anfoss hydraulic variable plunger pump,Germany DEUTSCH connectors
Features & Details
1. With HONDA gasoline engine
2. With imported Danfoss hydraulic variable plunger pump
3.Integrated micro computer control panel, easy operation
4. Forward, Reverse and Steering all controlled by control lever, easy operation
5.With hydraulic rod, high frequency and strong power
6. With high sensitivity tilt sensor, to control direction
7. With imported U.S.A Eaton driving motor
8.With hydraulic high pressure washing pump, can clean machine any time
9.With imported Germany DEUTSCH connectors, waterproof and dustproof
|
|
|
|
|
|
|
|
|
Specifications
| Type | SYSP300 |
| Engine | |
| Model | HONDA GX630 |
| Type | Gasoline Engine, air cooled, two cylinder |
| Power | 20hp/3600rpm |
| Fuel tank volume | 60L |
| Lubricant L | 1.5L |
| Fuel consumption | 313g/kWh |
| Traveling system | |
| Driving | Hydraulic motor |
| Wheel | Solid puncture-proof tyre |
| Speed | 0-70m/min |
| Vibration system | |
| Vibrating rod | Hydraulic vibrating rod |
| Nominal amplitude | 1.5mm |
| Vibrating frequency | Adjustable |
| Exciting force | 11kN(under 10000rpm) |
| Control system | |
| Control mode | Auto/Manual |
| Automatic control | Steering, Transverse slope and Longitudinal slope by high accuracy sensor |
| Clean system | |
| Power | Hydraulic motor |
| Theoretical flow | 20L/min |
| Theoretical pressure | 7Mpa |
| Working | |
| Speed | 0-15m/min |
| Mold size | Width 2500px*Height 1500px |
| Dimension | |
| Overall dimension | 2660*1970*1450mm |
| Weight | |
| Weight | 1200kg |
