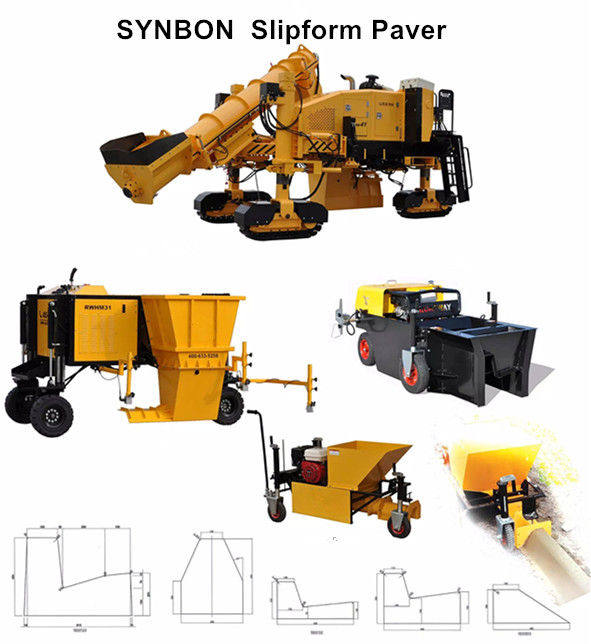

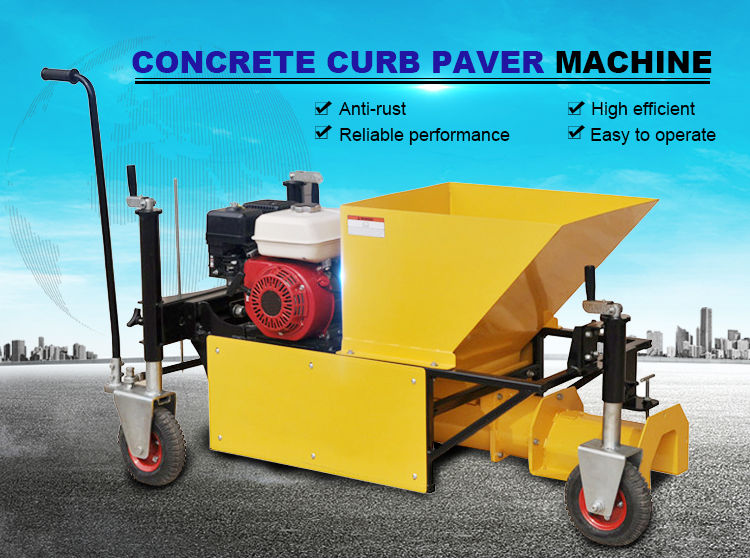

SYNBON Slipform Paver SYSP100
SYNBON Mini Road slipform concrete paver automatic curb paver SYSP100
Description
Operating weight 160kg
Engine Gasoline engine
Power 5.5hp/3600rpm
Overall size 1670*700*1100mm
Condition:

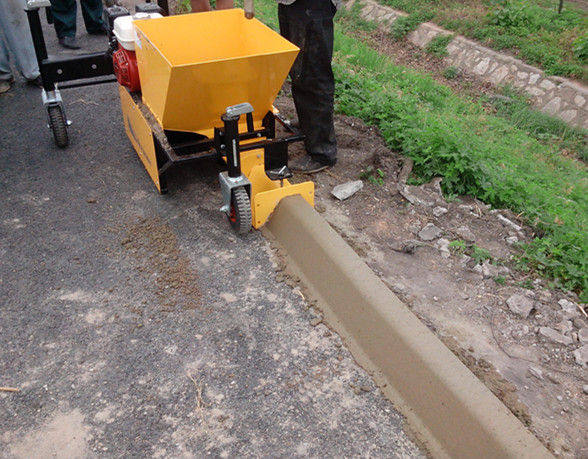

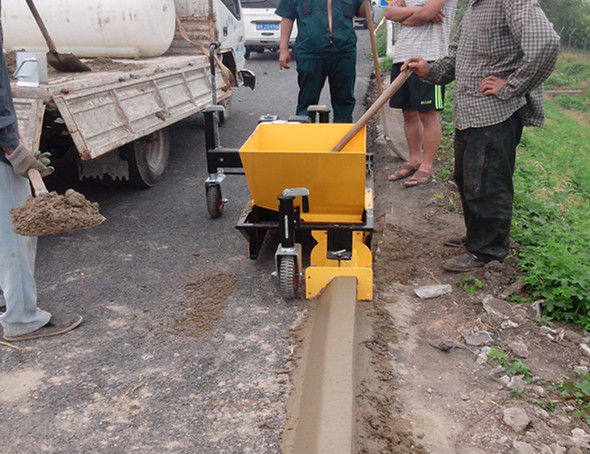

Can used for the curb forming, especially for the curb forming of recreational green space, community garden curb etc.
Gasoline engine , With spiral feeding hopper,walking indicator
Get a quote

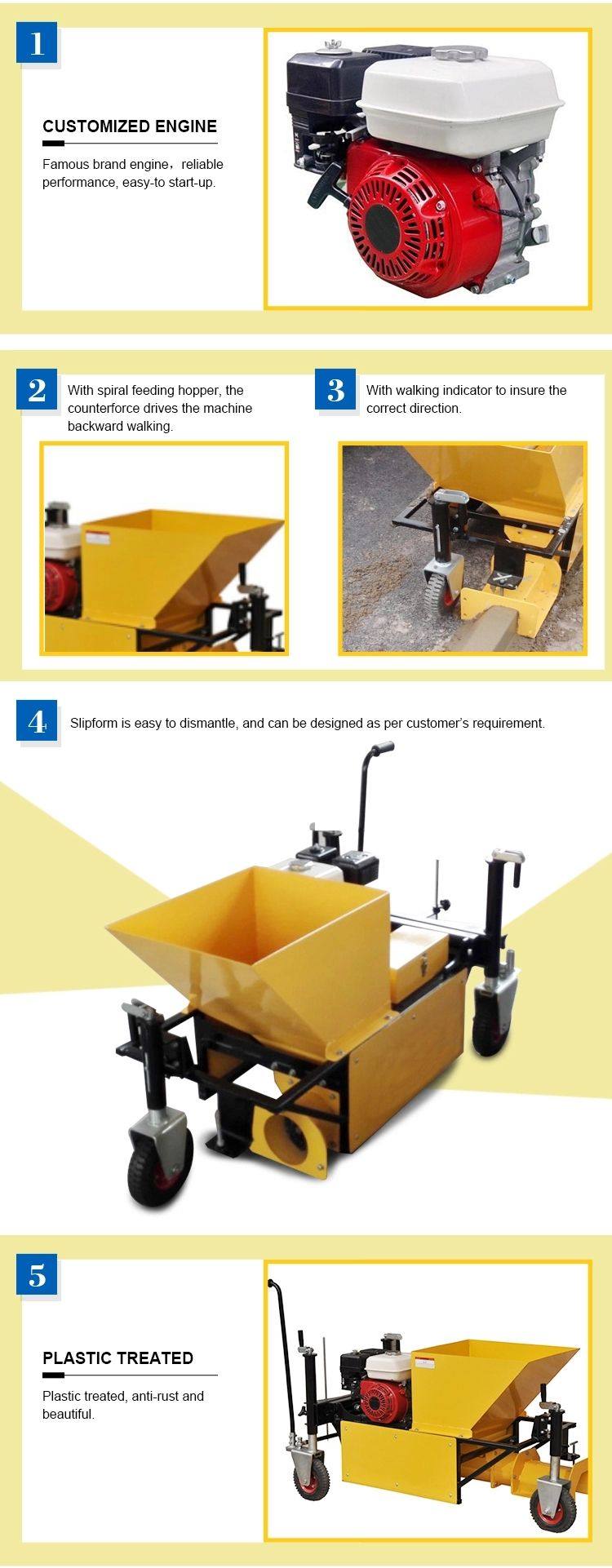

Features & Details
The machine, compact and easy to operate, is used for the curb forming, especially for the curb forming of recreational green space, community garden curb etc.
With famous brand engine, reliable performance, easy-to start-up;
With spiral feeding hopper, the counterforce drives the machine backward walking.
With walking indicator to insure the correct direction.
Slipform is easy to dismantle, and can be designed as per customer’s requirement
Plastic treated, anti-rust and beautiful.
Specifications
Type | SYSP100 |
Working | |
Working type | Walk-behind type |
Working speed | 1-2m/min |
Work mold | As per customer’s requirement |
Engine | |
Model | HONDA GX160 |
Type | Gasoline engine, Air-cooled, 4stroke, Single cylinder |
Power | 5.5hp/3600rpm |
Fuel tank volume | 3.6L |
Fuel consumption | 313G/KW/H |
Lubricant L | 0.6L |
Size | |
Total (L*W*H) | 1670*700*1100mm |
Package size | 1560*810*970mm |
Weight | |
Weight | 160kg |
