SLIPFORM PAVER

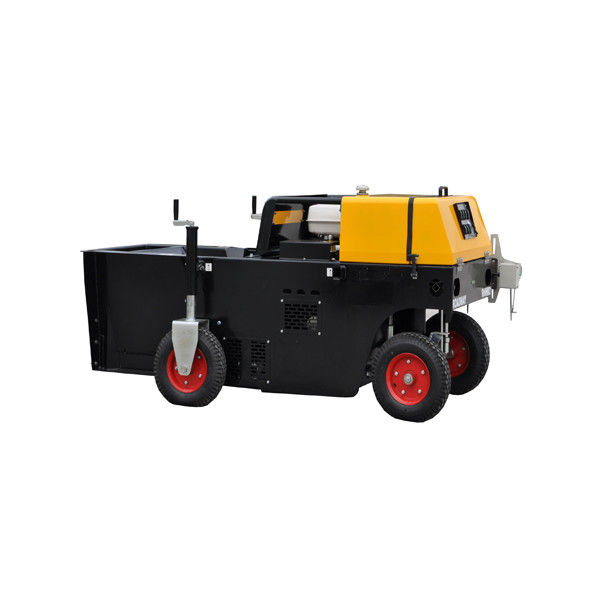

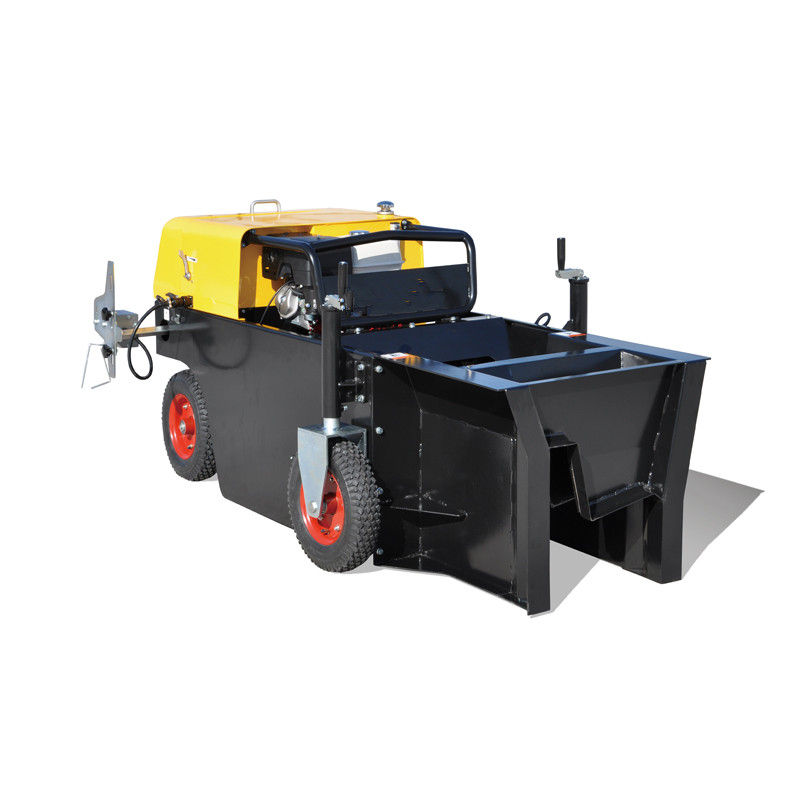

SYNBON Slipform Paver SYSP200

SYNBON Mini Road slipform concrete paver automatic curb paver SYSP200

Description

Operating weight 690KG

Engine Gasoline Engine

Power 13 hp /3600rpm

Overall size 2250*1188*970 mm

Condition:

Can be used make curbs,specially the the curb of the gardens. Parks, community and flower bed.

Importhighprecisionhydraulicvalve, automaticallywalkprecisionsensor
Get a quote

Features & Details

The machine, compact and easy to operate, is used for the curb forming, especially for the slipforming of recreational green space, community garden curb etc.

With famous brand engine, reliable performance, easy-to start-up;

With spiral feeding hopper, the counterforce drives the machine backward walking.

With walking indicator to insure the correct direction.

Slipform is easy to dismantle, and can be designed as per customer’s requirement

Plastic treated, anti-rust and beautiful.


Advantages:

1) with domestic and oversea famous diesel or petrol engine.

2) Import high precision hydraulic valve, compact and saving energy.

3) Import automatically walk precision sensor, error is less than 1mm.

4) With a electronic lever sensor, automatically balance from left and right, water lever back-up observing.SY5) Import high protective rank control button.

6) We can customize kinds of specification molds.


Specifications

ModelSYSP200
Working
Working Speed2m -3m/min
Work moldAs per customer’s requirement
Engine
ModelHonda GX390
TypeGasoline Engine, air cooled, 4-stroke, OHV, single cylinder
Power13 hp /3600rpm
Fuel tank volume6.5L
Lubricant L1.12L
Fuel consumption313g/kwh
Size
Total size( L*W*H)2250*1188*970 mm
Packing size2200*1250*1100mm
Weight
Weight690kg
