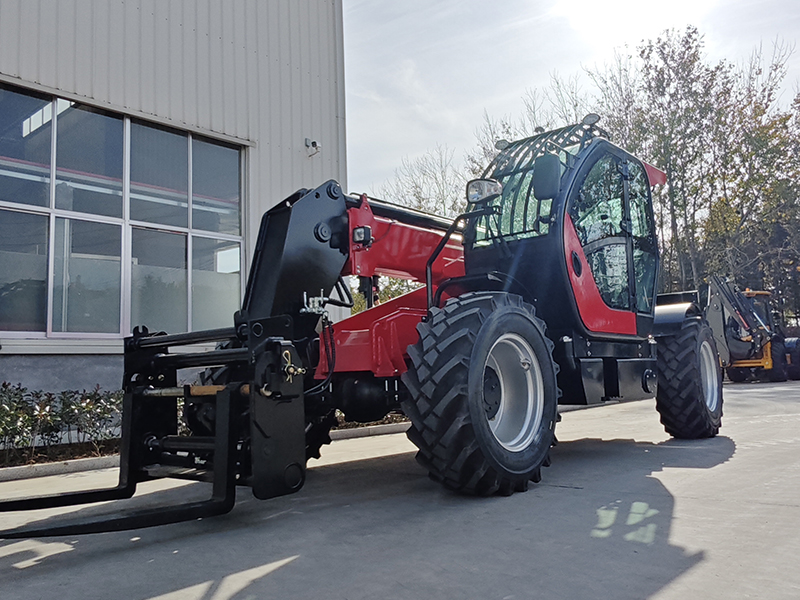

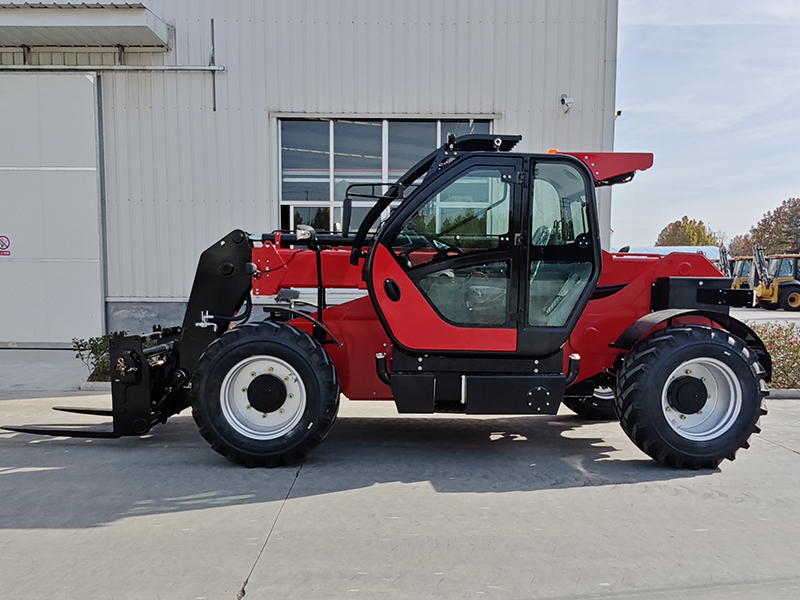

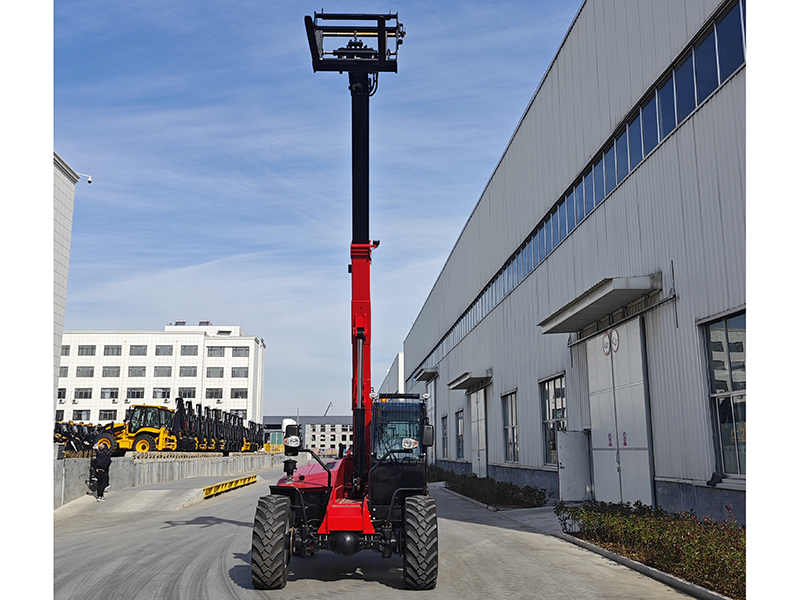

1

Length(with bucket on ground)

6490±50mm

2

Length（Forks are placed on the ground）

6415±50mm

3

Length（No forks, no buckets）

5379±50mm

4

Overall width（Tire outer edge, hood outer

edge)

2280±20mm

5

Load Bucket width

 2250±10 mm

6

Height(To the top of the cabin)

2580±20mm

7

Wheel base(MM)

3450±10mm

7

Wheel Tread(MM)

1855±10mm

Main technical parameters

1

Rated load

3000KG

2

 Operating weight

8580KG

3

 Rated bucket capacity

1.6 m³

4

Maximum dump height (41° discharge Angle)

5993mm

5

Dump reach

556.7mm

6

Turning raduis

Bucket outside rim/inside tire center

6000±50/3600±50mm

7

Actuation time

Lifting time Empty/full load

10.7/15.5 S

 Falling time

7.7 S

 Tipping time

6.7 S

Engine

1

Engine model

YC4A105Z-T20

2

Cooling type

Water cooling

3

Rated power

75 (kW)

4

Total exhaust of cylinder

4.8(L)

5

Rated speed

2200(r/min)

6

Max. Torque

400(N.M)

Transmission System

1

Torque Converter

Model

290

Cooling type

Pressure oil circulating

2

Transmission case

Model

28

Type

Electrohydraulic synchronous shift

3

Axle

Front Axle Model

 WL96Q2W

Rear Axle Model

WL96Q2A

4

 Gear shift position

4 F, 4 R front, 4 rear, and 4 gears

5

 Speed（F/R）km/h

F1:  6 km/h

F2:  14km/h

F3:  23km/h

F4:  36km/h

R1:  6km/h

R2:  14km/h

R3:  23km/h

R4:  36km/h

6

Tire size

               405/70-24

Hydraulic system

1

Working pump displacement

63ml/r

2

Working pump pressure

20Mpa

3

 Steering gear model

BZZ-500

4

Steering mode

Front wheel; Four wheels; Crab type

HS

8427209000
