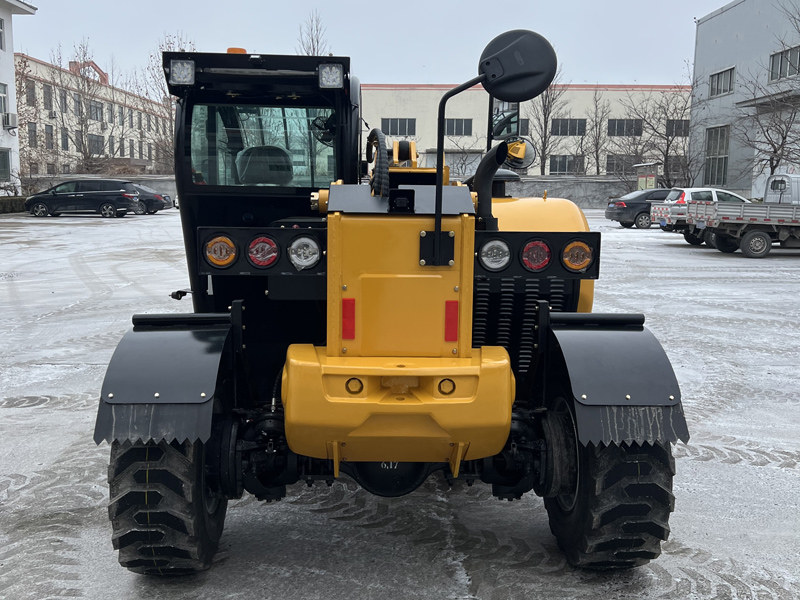

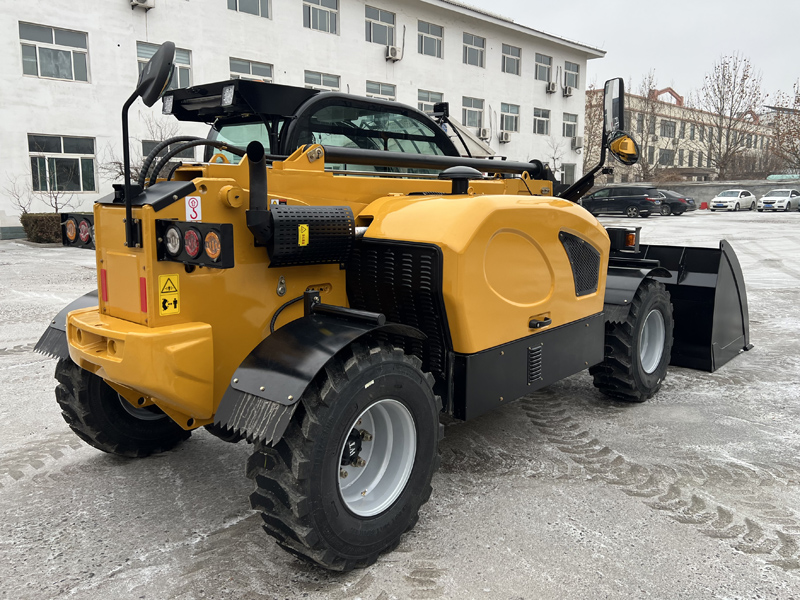

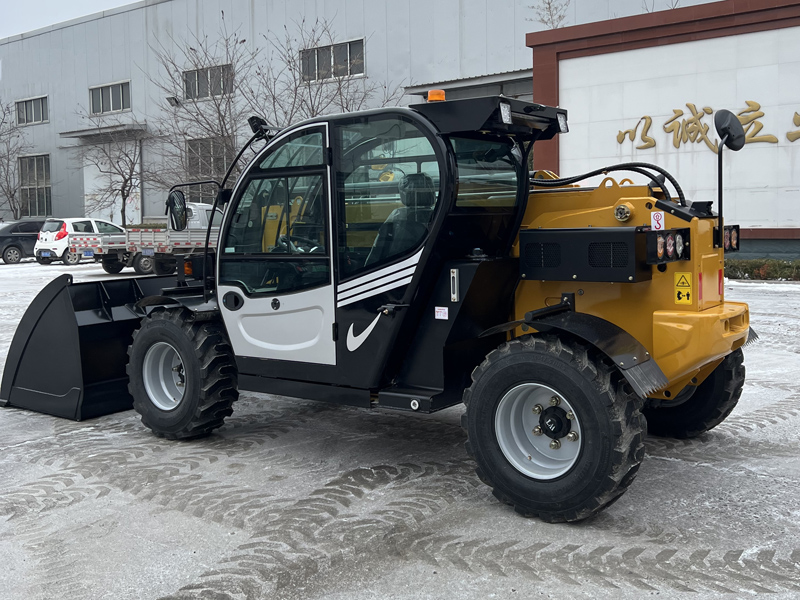

rated loading（Max extension） (kg)

1000

Max  loading (kg)

3100

overall weight (kg)

6300

rated bucket capacity (CBM)

1.2

maximum tractive force (kN）

30

maximum breakout force (kN）

10KN

maximum grade ability（°）

25

bucket maximum lift height（mm）

6800

fork maximum lift height（mm）

6000

maximum dump height（mm）

5330

maximum dump reach（mm）

330

overall dimension (L×W×H) （mm）

5500*2200*2150

minimum turning radius（outside of wheels）（mm）

5000

（maximum steering angle)

30°

Oscillation angle

8°

Engine

model

4DX21

type

lnline water cooled, four stroke

No. of cylinder-bore/stroke （mm）

4-102*118mm

displacement （L）

3.857L

rated power（kW）

53kw

idel speed (r/min)

800-850

rated speed (r/min)

2400

maximum torque N.m @speed  r/min

300Nm  1500-1700r/min

min fuel-consume ratio

228g/(kw.h)

Transmission system

Transmission  converter

Closed type static hydraulic drive

gearbox mode

 Pneumatic high and low speed shifting

gear shift

4forward shift  4reverse shift

maximum speed

30km/h

Drive axles

main reducing mode

Bevel gear grade l reduction

wheel base (mm)

2850

wheel tread(mm)

1860

ground clearance(mm)

400

Hydraulic system

system working pressure (Mpa)

20

boom lifting time (s)

7

total time (s)

16

fuel tank capacity (L)

70

Brake system

service brake

Air brake, hub brake

parking brake

Tyre

type specification

14-17.5

front tyre pressure （kPa）

350

rear tyre pressure （kPa）

350

Standard configuration: Xichai engine 53kw, four-way pilot, 2-meter bucket, plate fin radiator, 360 ring shadow, torque limiting system
