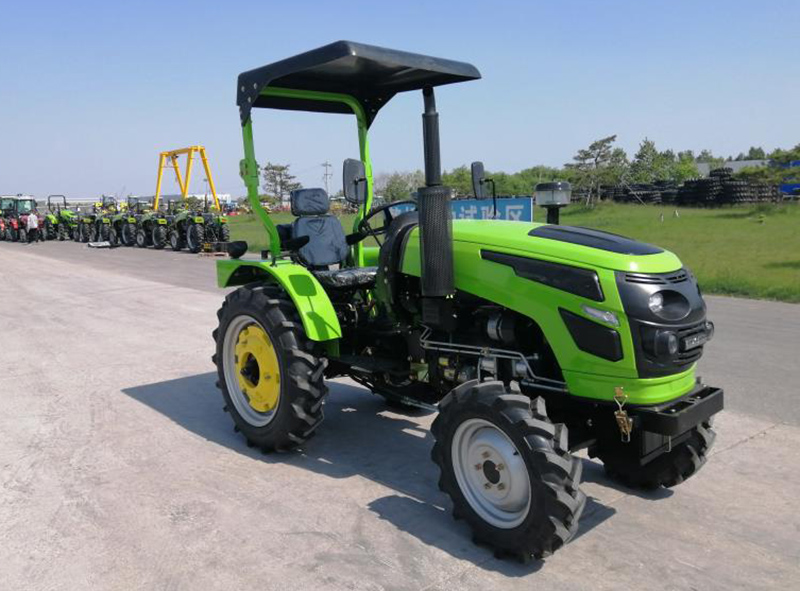

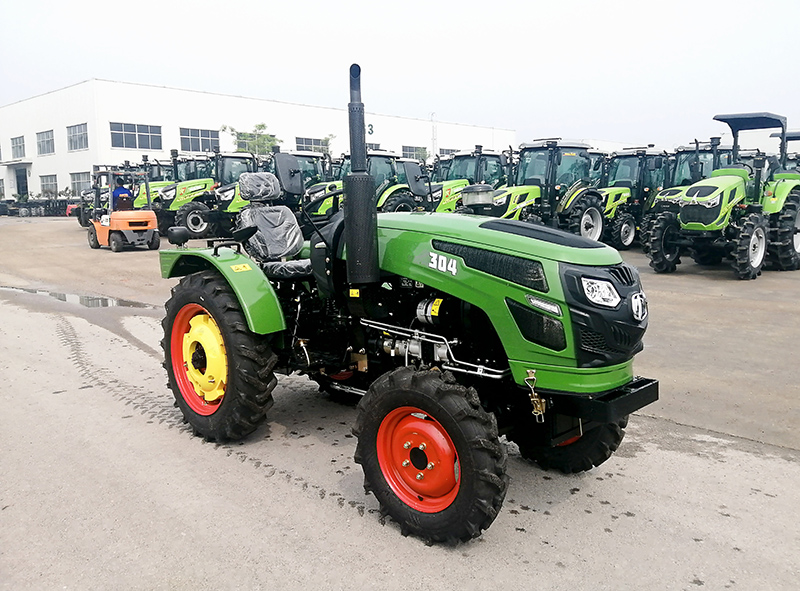

Tractor SY304
Description
Horsepower: 30HP/22.1KW
Length*Width*Height: 2850*1350*2000mm
Front / Rear Wheel Tire: 6.00-16/9.50-24
Condition:
generally applicable for the small and medium-sized farmlands and complex operations of individual farmers such as farmland, transportation, construction and etc.
Reinforced chassis, heavy weight, strong vehicle grip,higher efficiency.
Features & Details
Packaging & Shipping
8unit in 1*20GP container , 16units in 1*40HQ container , Triangle wood and 10mm wire fixed.
Benefits & Features
The complete machine is equipped with a variety of international standard interfaces which can match various machines and tools, generally applicable for the small and medium-sized farmlands and complex operations of individual farmers such as farmland, transportation, construction and etc.
Matching machines and tools: light farmland cultivating machines and tools like front loader, backhoe, trailer, hay mower, rake, Baler,Box Blade and rotary cultivator
Comfortable driving
Streamlined metal hood, stylish streamlined design, beautiful appearance

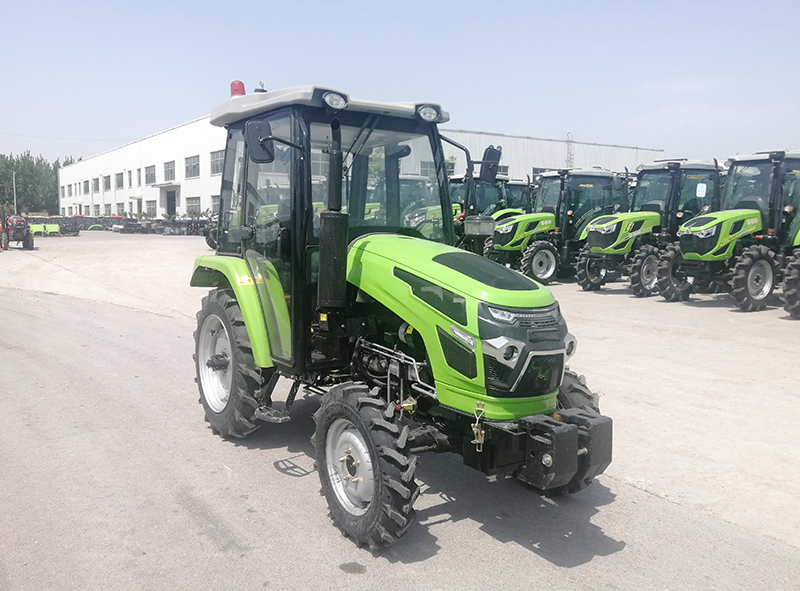

Optional fully sealed closed cab for more ergonomics
Adaptable
Double cylinder strong pressure riser with height limit, the depth adjustment method adopts position adjustment and floating control operation, and the adaptability is better.
Reliability
The hydraulic system and the rear axle are independently supplied with oil, and the failure rate is low.
Full hydraulic steering system for more reliable handling
Reinforced chassis, heavy weight, strong vehicle grip, large specific resistance soil operation, higher efficiency.
Specifications
TRACTOR:30HP,4WD,FOUR CYLINDER ENGINE ,8F+2R SHIFTS,POWER STEERING,SINGLE STAGE CLUTCH,DOUBLE SPEED PTO:540/720RPM, NEW HOOD,TYRE:6.00-16/9.5-24,FRONT AND REAR BALLAST | |
Model | SY304 |
Horsepower(hp) | 30 HP |
Type | 4WD |
Overall dimension(mm) | Overall dimension(mm) |
length | 2850-2950 |
width | 1350-1400 |
Height | 2000(Up to Exhaust Pipe) |
tread(mm) | |
Front Wheel | 1100 |
Rear Wheel | 1100-1200 |
wheel base(mm) | 1512 |
Ground Clearance(mm) | 266 |
Structure mass(kg) | 1360 |
Front Wheel ballast(kg) | 48 |
Rear Wheel ballast(kg) | 50 |
Engine | |
Type | vertical, water cooled, four cylinder,four stork |
Rated rev. (r/min) | 2400 |
Rated power (KW) | 22.1 |
clutch | Dry-friction,single- stage |
Transmission system | |
Gearbox | (4+1)X2 ,8F+2R SHIFTS |
central transmission | Gear sector |
Tractor brake | Dry brake,discs |
Tyre | |
front wheel | 6.00-16/6.50-16 |
Rear wheel | 9.5-24/11.2-24 |
PTO shaft rev. | 540/720r/min |
