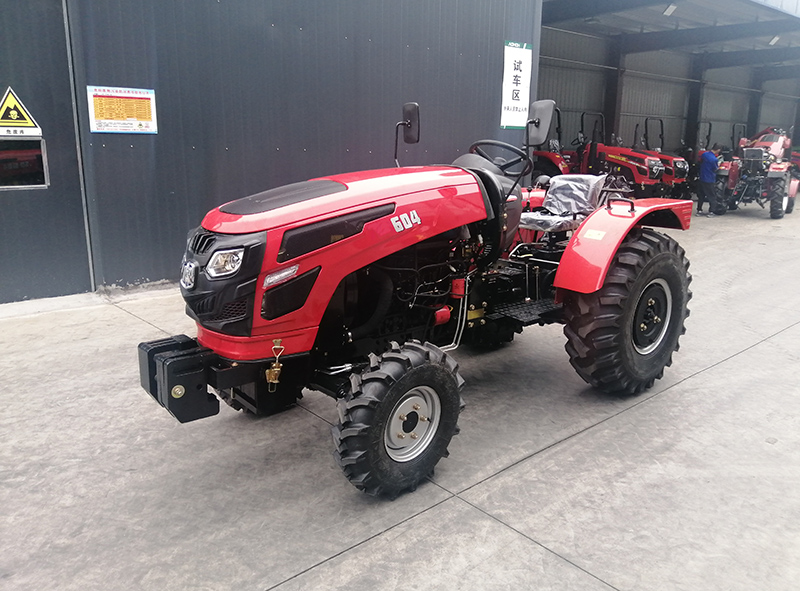

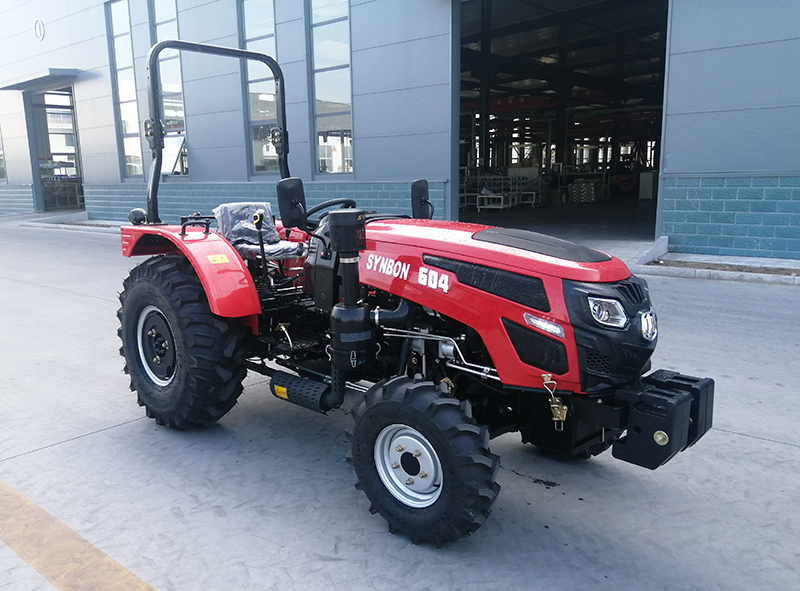

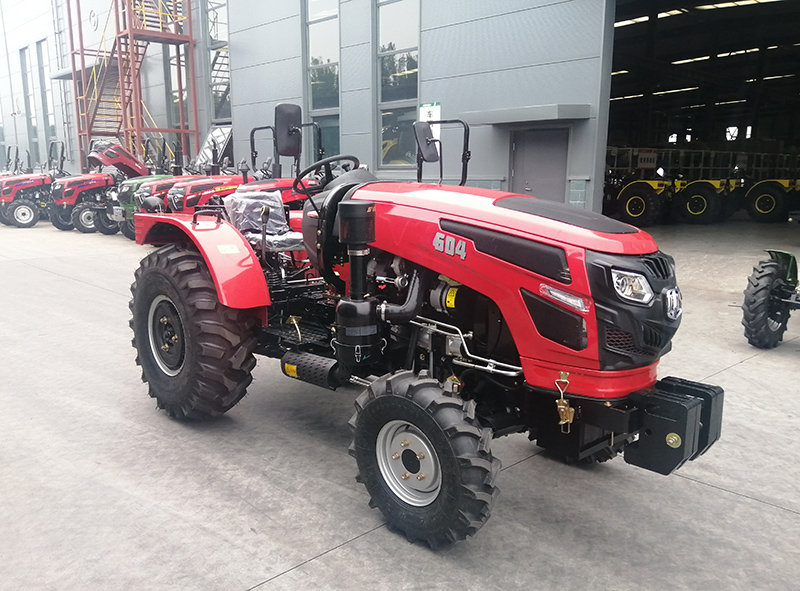

SYNBON 60hp Orchard Tractor
Description
Model: SY604G
Horsepower: 60HP/44.1KW
Length*Width*Height: 3000*1230*1210mm
Front / Rear Wheel Tire: 6.00-12/9.50-16
Condition:
generally applicable for the small and medium-sized farmlands and complex operations of individual farmers such as farmland, transportation, construction and etc.
Reinforced chassis, heavy weight, strong vehicle grip,higher efficiency.High performance, simple operation and wide application.
Features & Details
Packaging & Shipping
8unit in 1*20GP container , 16units in 1*40HQ container , Triangle wood and 10mm wire fixed.
Features:
60HP GARDEN TRACTOR : 4WD,FOUR CYLINDER ENGINE ,8F+2R SHIFTS,POWER STEERING,COMBINE METER,DBOULE STAGE CLUTCH,DOUBLE SPEED PTO:540/720 RPM, AUMAHR NEW HOOD,TYRE:6.00-12/9.5-16,LUXURY SEAT,BIG FUEL TANK, ROPS WITH SUNSHAE,FRONT AND REAR BALLAST,HYDRAULIC OUTPUT.
 |  |
 |  |
Specifications
Model | SY604(G) |
Horsepower(hp) | 60 |
Type | 4×4 Wheeled tractor |
Overall dimension（mm） | |
length | 3000 |
width | 1230 |
Height | 1210 |
Tread（mm） | |
Front Wheel | 960(1100，1200，1300) |
Rear Wheel | 960-1300 |
wheel base（mm） | 1650 |
Ground Clearance（mm） | 230 |
Structure weight（kg） | 1520 |
Front Wheel ballast（kg） | 48 |
Rear Wheel ballast(kg) | 50 |
Engine | |

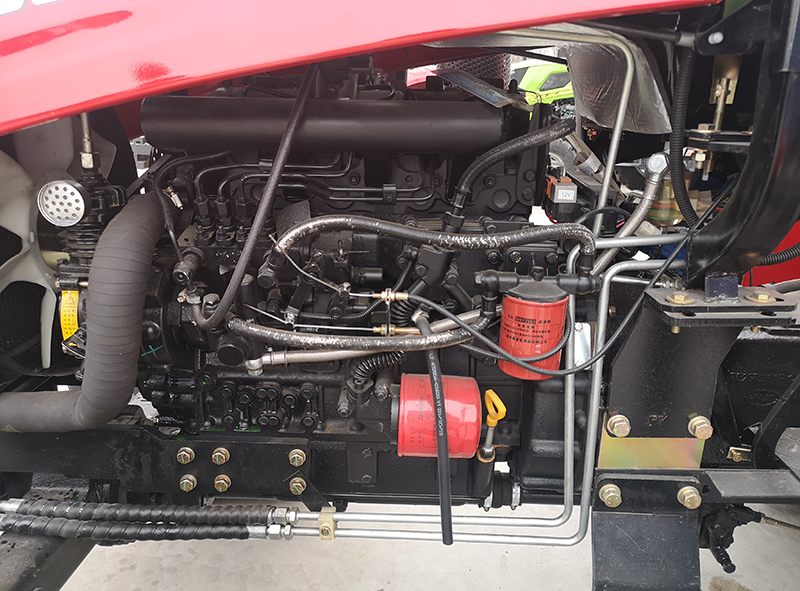

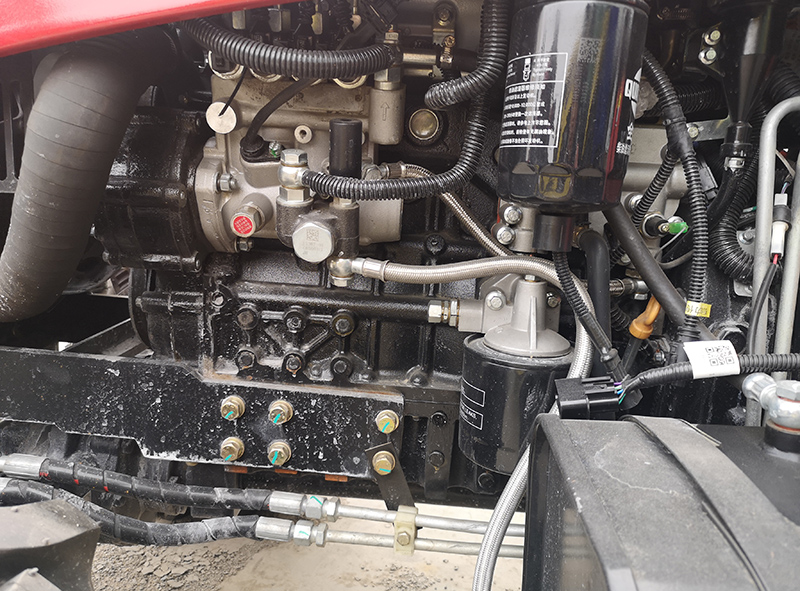

Type | vertical, water cooled, four cylinder,four stork |
Rated rev. (r/min) | 2400 |
Rated power (KW) | 44.1 |
clutch | Dry-friction,Double-stage |
Transmission system | |
gearbox | 8F+2R SHIFTS |
central transmission | Gear sector |
Tractor brake | Dry brake,discs |
Tyre | |
front wheel | 6.00-12/7.00-12 |
Rear wheel | 9.5-16/13.6-16 |
PTO shaft rev. | 720r/min or 540/720 |
