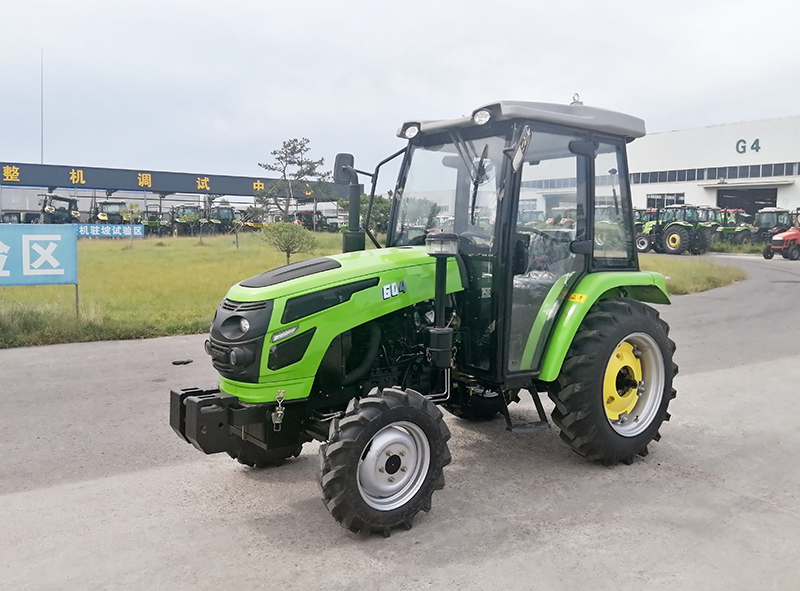

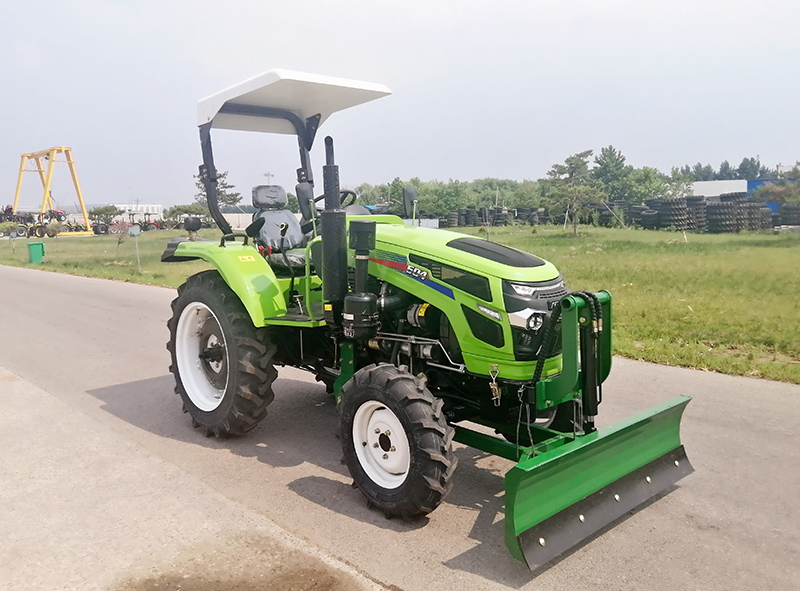

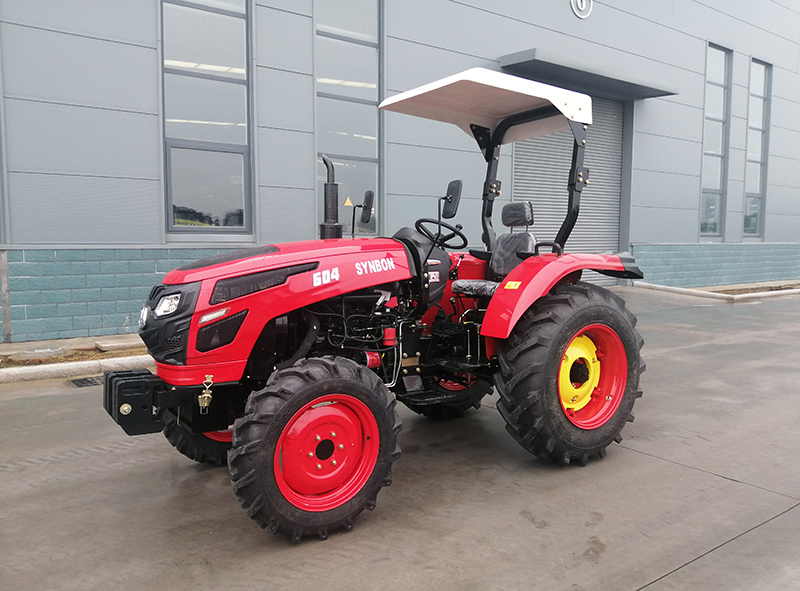

SYNBON 60HP Tractor SY604
Description
Model: SY604
Horsepower: 60HP/44.1KW
Length*Width*Height: 3300*1560*2000mm
Front / Rear Wheel Tire: 6.50-16/11.2-24
Condition:
generally applicable for the small and medium-sized farmlands and complex operations of individual farmers such as farmland, transportation, construction and etc.
Reinforced chassis, heavy weight, strong vehicle grip,higher efficiency.High performance, simple operation and wide application.
Features & Details
Packaging & Shipping
8unit in 1*20GP container , 16units in 1*40HQ container , Triangle wood and 10mm wire fixed.
8F+2R gearbox, double-acting clutch, hydraulic steering, two-speed PTO (540/720r/min), 1.3-meter track, strong pressure boost. Shock-absorbing seats, maintenance-free batteries, tires: 6.00-16 (2WD) 6.50-16 (4WD)/11.2-24, streamlined hood.
 |  |
 |  |
Specifications
Model | SY604 |
Horsepower(hp) | 60hp |
Type | 4×4 Wheeled tractor |
Overall dimension（mm） | |
length | 3300 |
width | 1560 |
Height | 2000 |
Tread（mm） | |
Brand | SYNBON |
Front Wheel | 1030 |
Rear Wheel | 1300 |
wheel base（mm） | 1800 |
Ground Clearance（mm） | 328 |
Structure weight（kgs） | 1520 |
Front Wheel ballast（kg） | 60 |
Rear Wheel ballast(kg) | 50 |

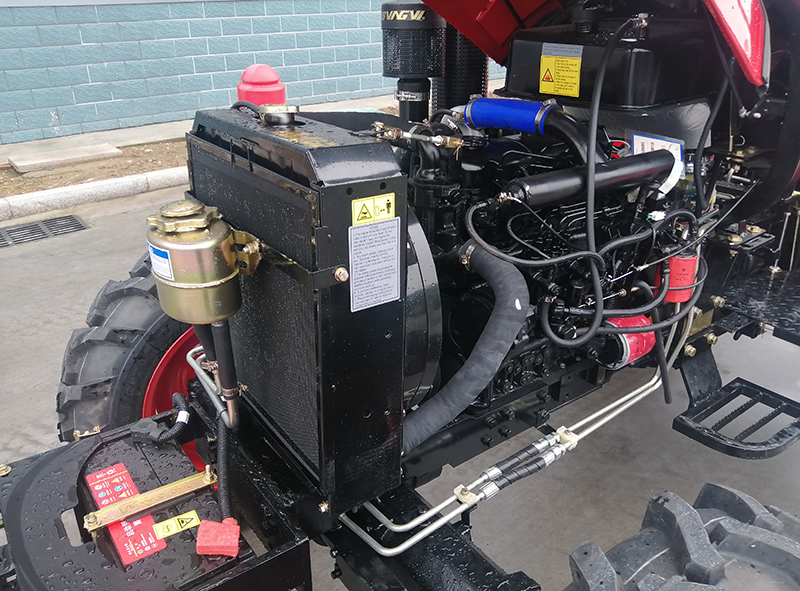

Engine | |
Type | vertical, water cooled, four cylinder,four stork |
Rated rev. (r/min) | 2300 |
Rated power (KW) | 44.1 |
clutch | Dry-friction,double stage |
Transmission system | |
gearbox | 8F+2R shuttle shifts |
central transmission | Gear sector |
Tractor brake | Dry brake,discs |
Tyre | |
front wheel | 6.50-16 |
Rear wheel | 11.2-24 |
PTO shaft rev. | 540r/min and 1000r/min |
