SYNBON 70HP Farm Tractor
Description

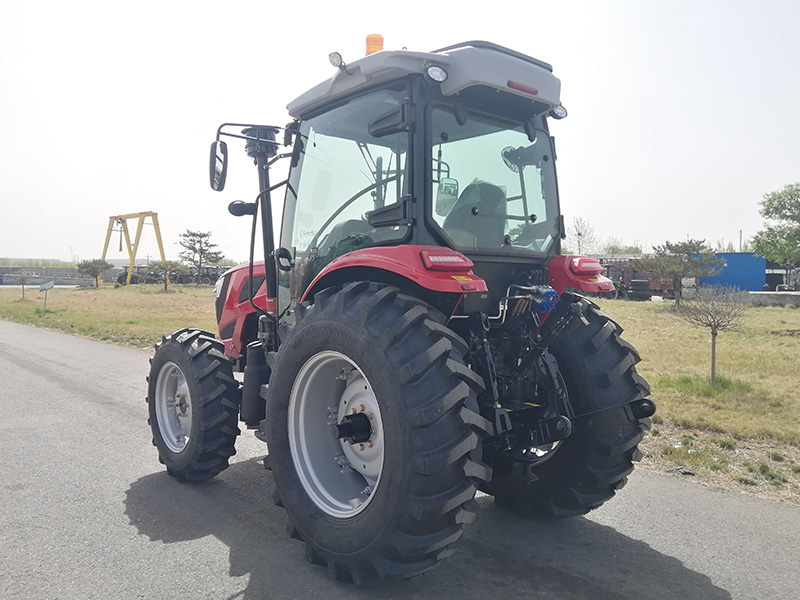

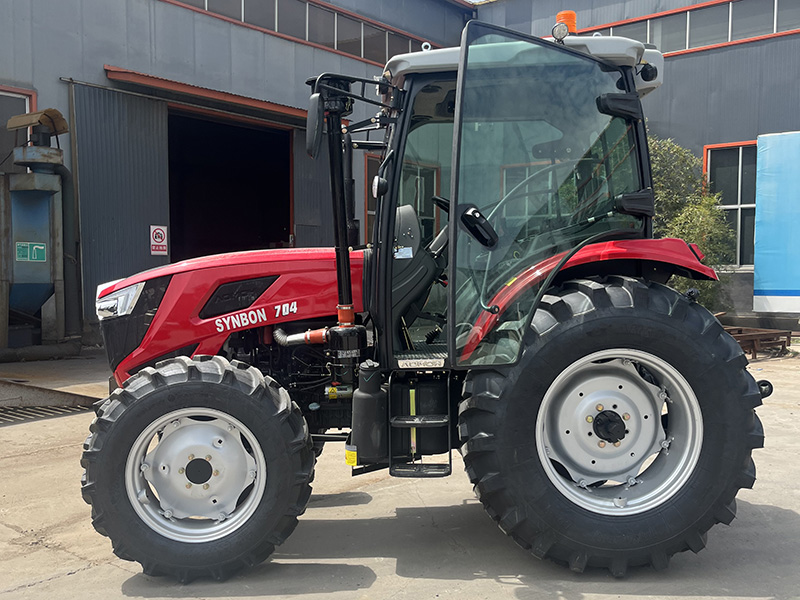

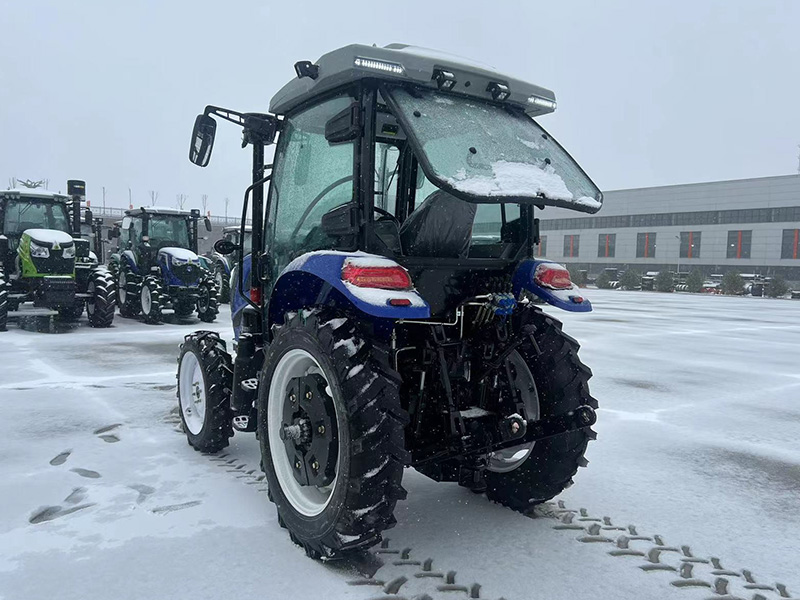

SYNBON 70HP farm tractor
4*4 ， 70hp，12F+12R Shifts,farm tractor
Description：
4WD
Power：70hp/51.5
Type: 8.3-24 /11.00-32
Weight: 2660kg
Overall size : 3500*1850*2700 mm
Features & Details
Application:
Widely used in farmland, orchards, pastures, farms, greenhouses and other places
Tools can be selected:
Front loader, backhoe, rotary tiller, plow, harrow, lawn mower, trailer, sprayer and other agricultural tools
Specifications
12F+12R gearbox, double-acting clutch, hydraulic steering, two-speed rear PTO (540/720r/min), 1.3 meters or 1.4 wheelbase, strong pressure increase. Side replacement, shock-absorbing seat, maintenance-free battery, tires: 8.30-24/11-32, flat floor, segmented rear power output shaft, streamlined hood.
Model | SY704 |
Horsepower(hp) | 70 hp |
Type | 4×4 Wheeled tractor |
Overall dimension（mm） | |
length | 3500 |
width | 1850 |
Height | 2700 |
Tread（mm） | |
Front Wheel | 1450 |
Rear Wheel | 1408 |
wheel base（mm） | 2020 |
Ground Clearance（mm） | 420 |
Structure weight（kgs） | 2660 |
Front Wheel ballast（kg） | 144 |
Rear Wheel ballast(kg) | 360 |
max. wheel track rear | 1.3 m |
max.wheel track front | 1.3 m |
Engine | |
Type | vertical, water cooled, four cylinder,four stork |
Rated rev. (r/min) | 2300 |
Rated power (KW) | 51.5 |
clutch | Dry-friction,double stage |
Transmission system | |
gearbox | 12F+12R shuttle shifts |
central transmission | Gear sector |
Tractor brake | Hydraulic brake,discs |
hydraulic output flow rate (L/min.) | 16L/min |
No. of hydraulic pumps | 1 |
hydraulic output valves | 2 |
lifting capacity | ≥12.5 kN |
min. turning radius | ≤4 M |
Tyre | |
front wheel | 8.3-24 |
Rear wheel | 11.00-32 |
PTO shaft rev. | 540r/min and 760r/min |
