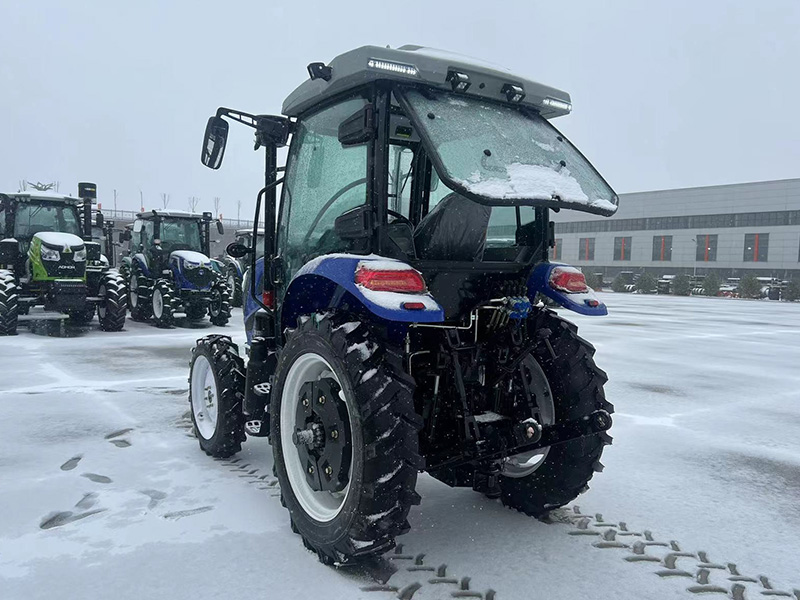

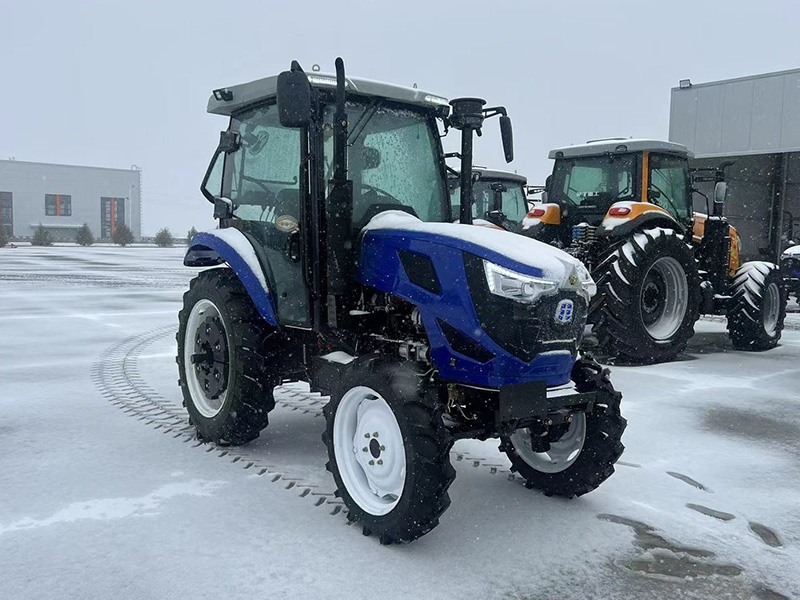

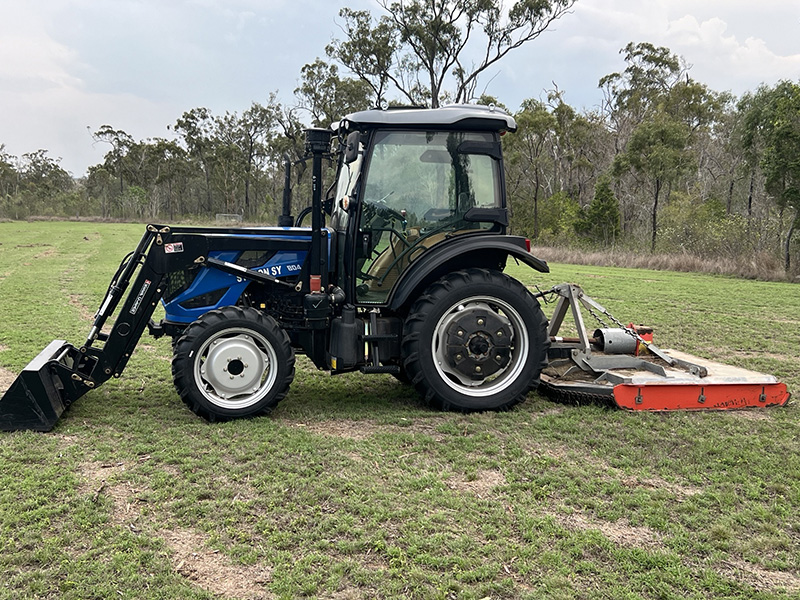

SYNBON 80HP Tractor SY804
Description
SYNBON 80HP farm tractor
4*4 ， 80hp，12F+12R Shifts,farm tractor
Description：
4WD
Power：80hp/58.8
Type: 8.3-24 /11.00-32
Weight: 3020kg
Overall size : 4050*1830*2850 mm
Features & Details
Application:
Widely used in farmland, orchards, pastures, farms, greenhouses and other places
Tools can be selected:
Front loader, backhoe, rotary tiller, plow, harrow, lawn mower, trailer, sprayer and other agricultural tools
Specifications
4 * 4, 12F+12R shuttle shift, dual acting clutch, dual speed rear PTO (540/760r/min), 1.3 meter wheelbase, hydraulic steering, side shift, shock absorber seat, maintenance free battery, multiple way valve (three in and three out), strong pressure booster, tires: 8.3-24 (4WD)/11-32 (12.4-32), flat floor, streamlined hood
Model | SY804 |
Horsepower(hp) | 80 |
Type | 4×4 Wheeled tractor |
Overall dimension（mm） | |
length | 4050 |
width | 1830 |
Height | 2850 |
Tread（mm） | |
Wheel tread(mm) | 1300-1400 |
wheel base（mm） | 2050 |
Ground Clearance（mm） | 420 |
Structure weight（kgs） | 3020 |
Front Wheel ballast（kg） | 144 |
Rear Wheel ballast(kg) | 380 |
Steering type | Hydraulic Power |
Engine | |
Type | vertical, water cooled, four cylinder,four stork |
Rated rev. (r/min) | 2400 |
Rated power (KW) | 58.8 |
Clutch | Dry-friction,double stage |
Clutch type | Double action |
Transmission system | |
Gearbox | 12F+12R shuttle shifts |
Central transmission | Gear sector |
Tractor brake | Hydraulic brake,discs |
Diver speed | 2.46-32.73 km/h |
Differential lock | Manual Differential Lock |
Electric voltage | 12v |
Tyre | |
front wheel | 8.3-24 |
Rear wheel | 11.00-32 |
PTO shaft rev. | 6 Splines,540r/min and 760r/min |
Three point hitch | Rear, ll Category |
