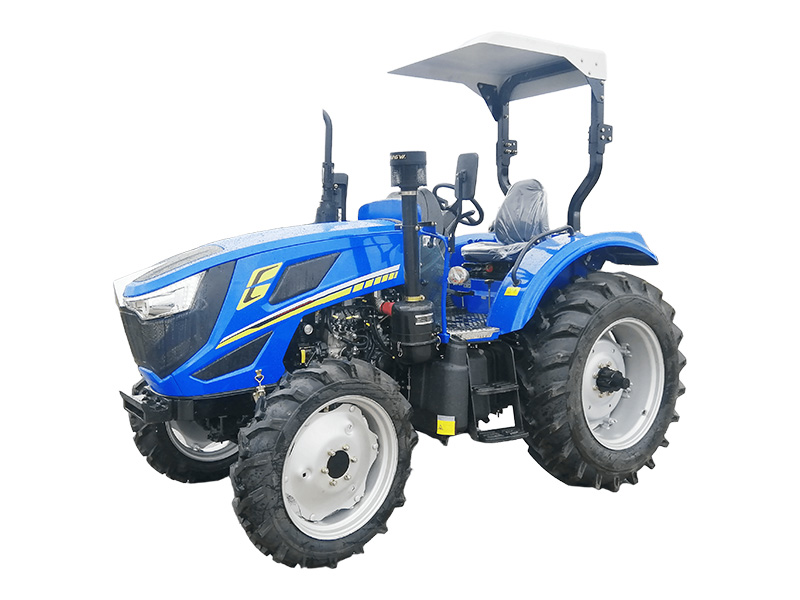

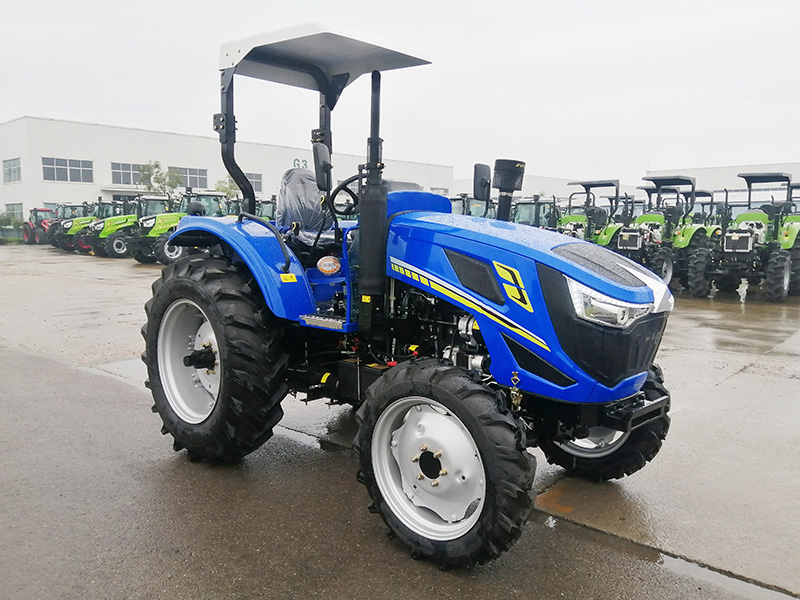

SYNBON 90HP Tractor SY904(B)
Description
SYNBON 90HP farm tractor
4*4 ， 90hp，12F+12R Shifts,farm tractor
Description：
4WD
Power：90hp/66.2
Type: 8.3-24 /11-32
Weight: 2790kg
Overall size : 3500*1850*2700 mm
Features & Details
Application:
Widely used in farmland, orchards, pastures, farms, greenhouses and other places
Tools can be selected:
Front loader, backhoe, rotary tiller, plow, harrow, lawn mower, trailer, sprayer and other agricultural tools
Specifications
SY904 TRACTOR: 90HP, 4WD,FOUR CYLINDER ,12F+12R SHUTTLE SHIFTS,POWER STEERING,DOUBLE STAGE CLUTCH,DOUBLE SPEED PTO:540/760RPM,NEW HOOD,TYRE:8.3-24/11.00-3.2.,HYDRAULIC OUTPOINT,
Model | SY904 |
Horsepower(hp) | 90 |
Type | 4×4 Wheeled tractor |
Overall dimension（mm） | |
length | 3500 |
width | 1850 |
Height | 2700 |
Tread（mm） | |
Front Wheel | 1450 |
Rear Wheel | 1408 |
wheel base（mm） | 2020 |
Ground Clearance（mm） | 420 |
Structure weight（kgs） | 2790 |
Front Wheel ballast（kg） | 144 |
Rear Wheel ballast(kg) | 360 |
Engine | |
Type | vertical, water cooled, four cylinder,four stork |
Rated rev. (r/min) | 2300 |
Rated power (KW) | 66.2 |
clutch | Dry-friction,double stage |
Transmission system | |
gearbox | 12F+12R shuttle shifts |
central transmission | Gear sector |
Tractor brake | Hydraulic brake,discs |
Tyre | |
front wheel | 8.3-24 |
Rear wheel | 11.00-32 |
PTO shaft rev. | 540r/min and 760r/min |
