SYNBON WHEEL TRACTOR SY1304
Description

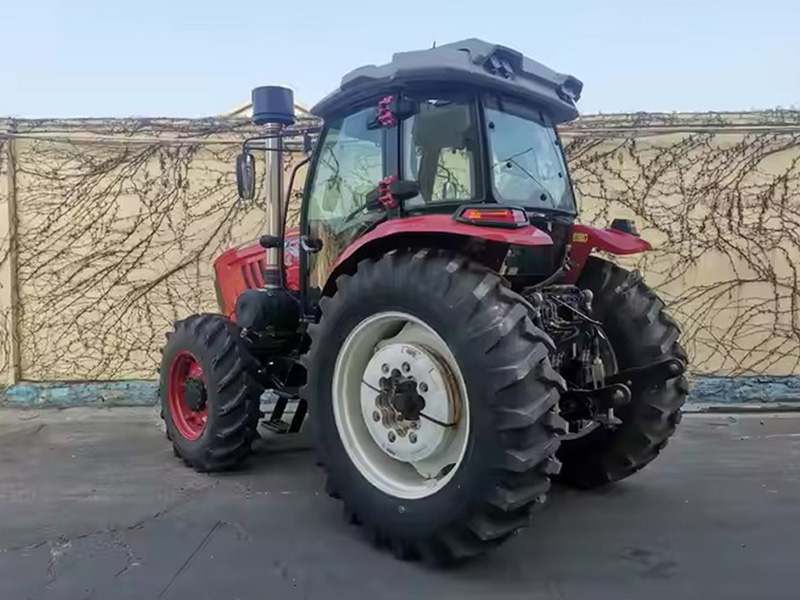

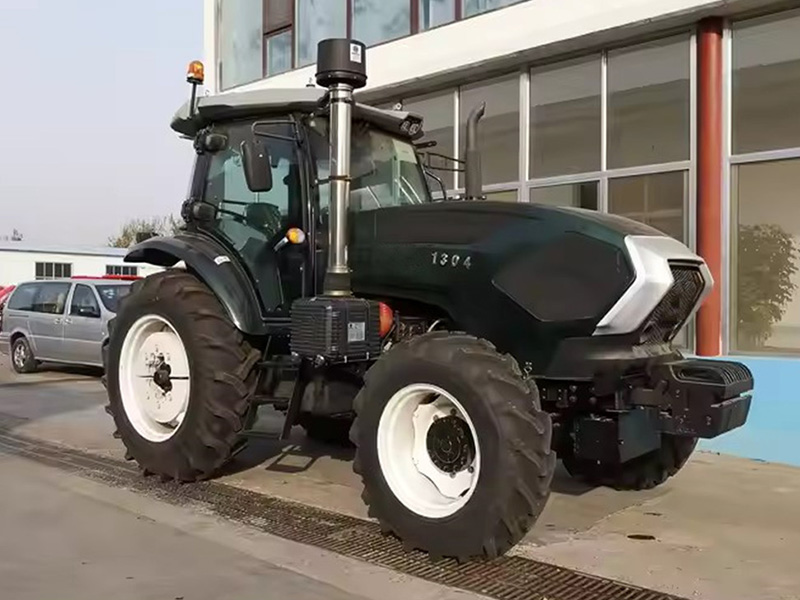

SYNBON 130HP farm tractor
4*4 ， 130hp，16F+8R Shifts,farm tractor
Description：
4WD
Power：130hp/97kw
Type: 13.6-24 /16.9-34
Weight: 4280kg
Overall size : 4925*2300*2850 mm
Features & Details
130HP 4WD,Six-cylinder weichai engine,16F+8R gearbox, Dula-stage clutch, hydraulic steering, front tire 13.6-24, rear tire 16.9-34, PTO speed 540 and 1000r/min, suspension attachment, front and rear ballast, lucury hot cabin,2 sets of hydraulic valves
Specifications
Model | SY304 |
Type | 4WD |
Size (mm) | |
Length(to front ballast) | 4925 |
Width | 2300 |
Height(to top point) | 2850 |
Wheel Tread | |
Front | 1650/1850/1950 Step adjustable |
Rear | 1700-2300 stepless adjustable |
Axle Base | 2660 |
Ground Clearance | 425 |
Structure weight (kg) | 4280 |
Engine | |
Model | Six-cylinder Weichai brand engine |
Type | 6-Cylinder,Water Cooled |
Rated Power(kw) | 95.6 |
Rated speed(r/min) | 2200 |
Fuel | Diesel |
Tire | |
Front Wheel | 13.6-24 |
Rear Wheel | 16.9-34 |
Clutch | 14'' clutch,Double-stage clutch |
Steering | Hydraulic steering |
Transmission Type | 16F+8R |
Hydraulic output | 2 sets of hydraulic output valves |
Suspension Type | 3-point links |
PTO | |
Type and speed | dual speed: 540rpm/1000rpm |
Spline Size | I35 Rectangle Spline with 6 teeth |
