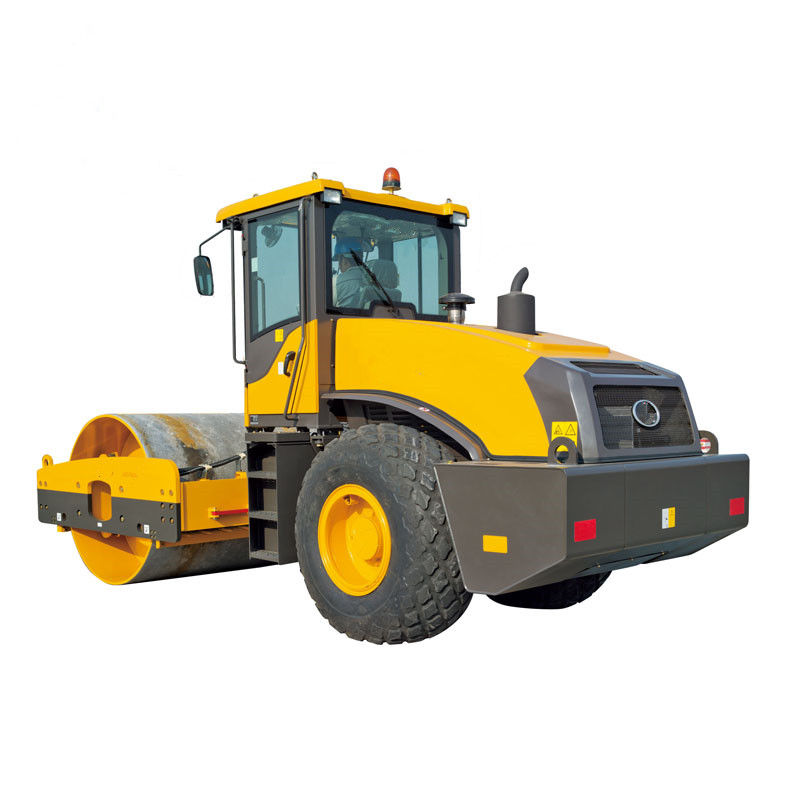

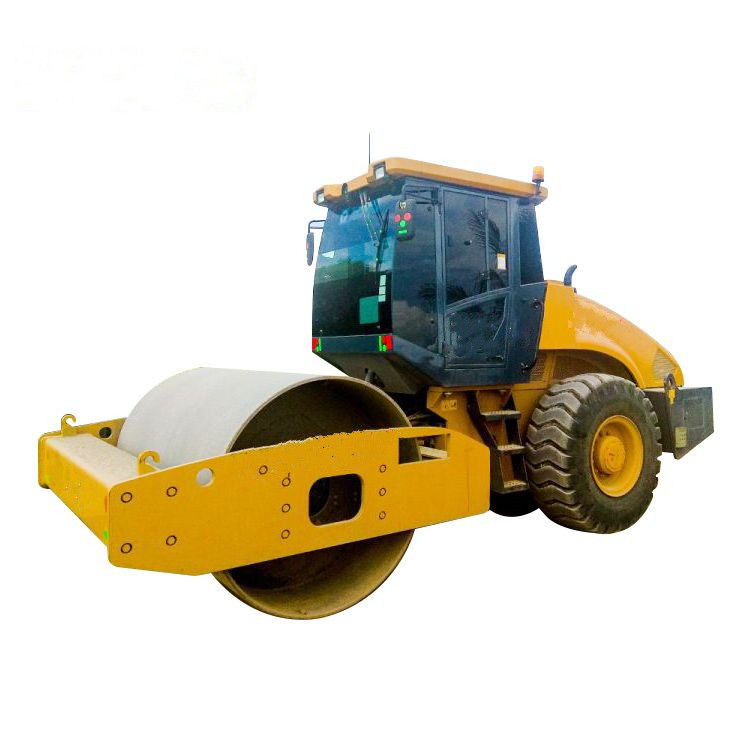

SYNBON Road roller SY122H
12ton single drum hydraulic vibratory Single drive SY122H
Description
Operating mass 12000 KG
Power 110KW
Overall size 5820*2278*2278 MM
Condition:
single drum vibratory roller is suitable for road and other large paving projects
Mechanical drive, hydraulic vibration, dual amplitude, hydraulic articulated steering
Features & Details
Benefits
Specifications
| Model | SY122H | |
| Drive | Single drive | |
| Operating mass | 12000 | Kg |
| Static linear load | 340 | N/cm |
| Vibration amplitude | 29 | Hz |
| Vibration frequency | 1.8 | mm |
| Centrifugal force | 260/1600 | KN |
| 1st gear | 2 | |
| 2nd gear | 4 | |
| 3rd gear | 10.5 | |
| Grade ability | 30 | % |
| Turning angle | 35 | |
| Ground clearance | 360 | mm |
| Electrical voltage | 24 | v |
| Turning radius | 7000 | mm |
| Vertical oscillation | 8 | |
| Type size | 17.5-25 | |
| Overall size | 5820*2278*2278 | mm |
| Vibration round width | 2100 | mm |
| Drum diameter | 1400 | mm |
| Drum rim thickness | 24 | mm |
| Wheelbase | 3160 | mm |
| Diesel model | CUMMINS6BT5.9 | |
| Diesel power | 110 | KW |
| Diesel speed | 2000 | r/min |
| Fuel tank capacity | 220 | L |
| Hydraulic tank capacity | 160 | L |
