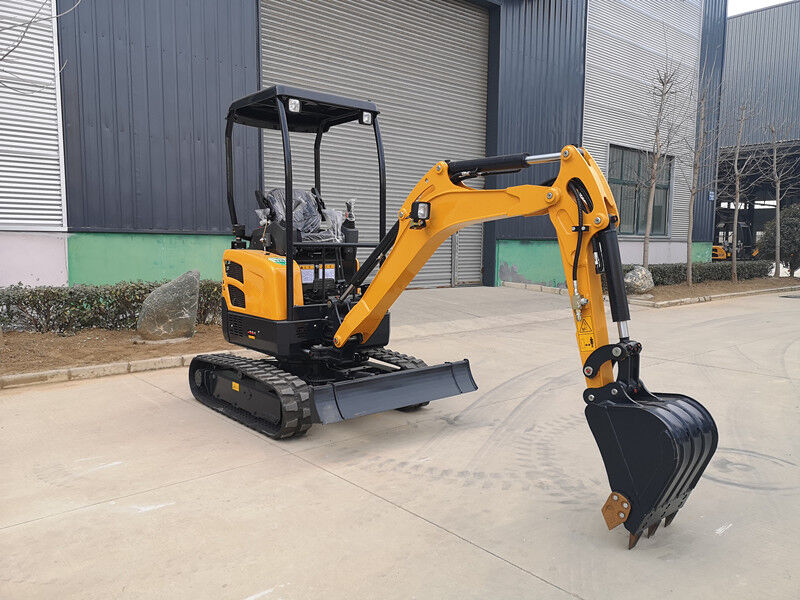

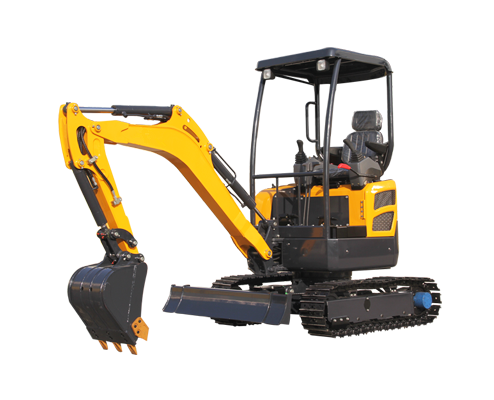

SYNBON Mini Crawler Excavator SY602.0
Description
Operating weight 200kg
Bucket Capacity 0.07m3
Power 14.2kW
Overall size 3550x990x2290 mm
Condition:
With multiple functions of digging, grabbing, drilling, bull-dozing, ditch-cleaning and rock-breaking, this excavator can be widely used in various construction projects such as water supply, power supply, gas supply, telecommunication network, farmland and garden works etc.
Optional attachments:Auger,Grapper,Ripper, Rake,Hammer, 200mm Bucket,800mm Bucket, Plain Bucket ,Quick change,Packaging
Features & Details
Benefits and Features
1 Famous brand engine features strong power and low fuel consumption.
2 Imported hydraulic system features high working efficiency.
3 Professional structural parts and working mechanism features reliability and durability.
4 Breaking pipeline equipped improves the working performance.
5 Humanized design features comfortable operation and convenient maintenance.
|
|
|
|
Specifications
| Bucket capacity | 0.07m³ |
| swing speed | 0~9rpm |
| Max.gradeability | 35° |
| Max.digging force of grab | 18KN |
| Max.digging force of arm | 11KN |
| Engine model | KUBOTA D1105 |
| Engine power | 14.1kw/2000rpm |
| Tack width | 230mm |
| System pressure | 21.5Mpa |
| Description | Unit-Metric |
| Overall length | 3555mm |
| Overall width(Shipping/Working) | 990mm/1300mm |
| Overall height | 2290mm |
| Cabin height | 2290mm |
| Track length on ground | 1230mm |
| Track gauge | 760mm |
| Min.ground clearance | 150mm |
| Swing radius at tail | 650mm |
| Max.digging height | 3700mm |
| Max.dumping height | 2440mm |
| Max.digging depth | 2400mm |
| Max.vertical digging depth | 2025mm |
| Max.digging radius | 4040mm |
| Min.swing radius | 1610mm |
| Max.lifting distance of dozer blade | 240mm |
| Max.cutting depth of dozer blade | 270mm |
| Boom swing angle(Left) | 75° |
| Boom swing angle(Right) | 45° |
