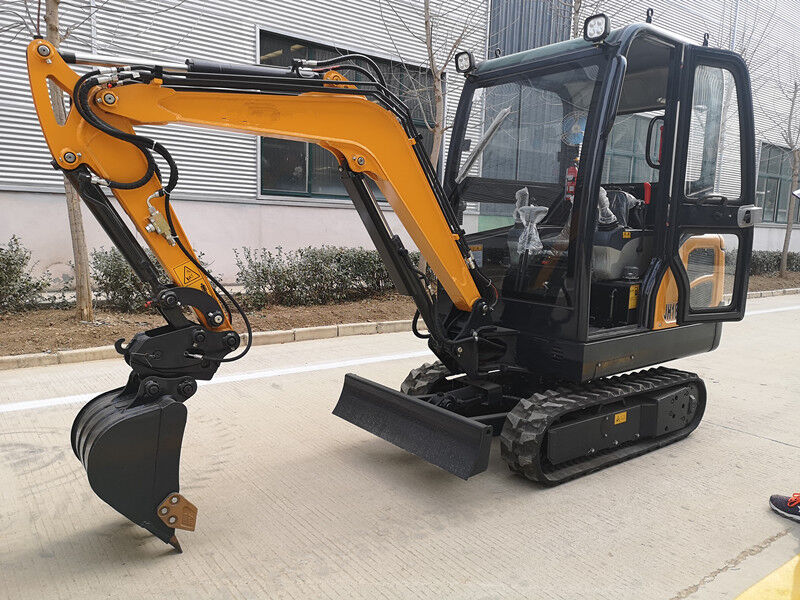

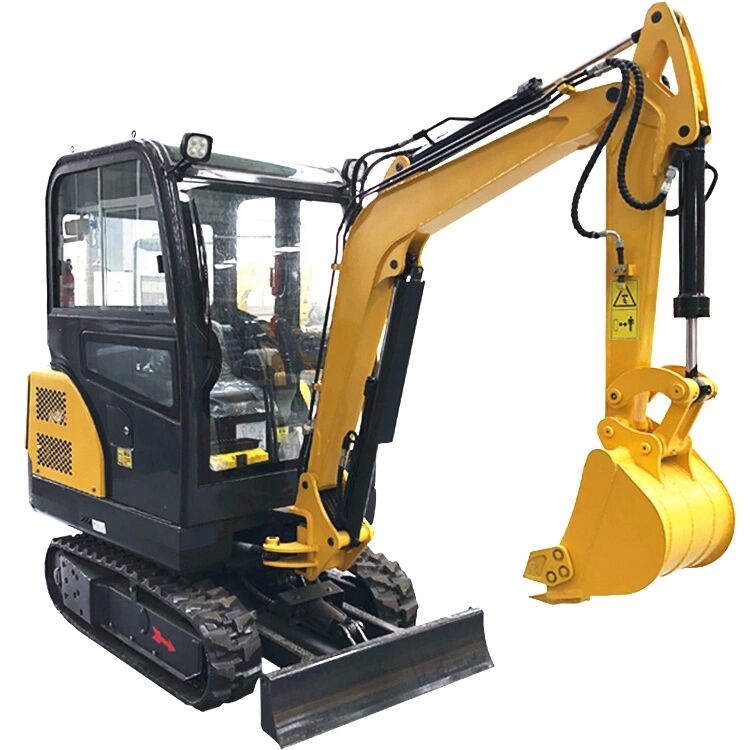

SYNBON Mini Crawler Excavator SY601.8
Description
Operating weight 1800kg
Bucket Capacity 0.1m3
Power 18.4kW
Overall size 3800x1050x2280 mm
Condition:
With multiple functions of digging, grabbing, drilling, bull-dozing, ditch-cleaning and rock-breaking, this excavator can be widely used in various construction projects such as water supply, power supply, gas supply, telecommunication network, farmland and garden works etc.
Optional attachments:Auger,Grapper,Ripper, Rake,Hammer, 200mm Bucket,800mm Bucket, Plain Bucket ,Quick change,Packaging
Features & Details
Benefits and Features
1 Famous brand engine features strong power and low fuel consumption.
2 Imported hydraulic system features high working efficiency.
3 Professional structural parts and working mechanism features reliability and durability.
4 Breaking pipeline equipped improves the working performance.
5 Humanized design features comfortable operation and convenient maintenance.
|
| |
|
|
Specifications
| Model | SY601.8 |
| Operate weight | 1.8 Ton |
| Bucket capacity | 0.06CBM |
| Engine Model | Laidong KM385B |
| Engine Power | 18.4Kw/2200rpm |
| Fuel Tank Capacity | 18L |
| Travel Speed | 2.8/3.0 Km/h |
| Gradeability | 70% (35°) |
| Boom Swing Angle | 75°(right)/45°(left) |
| System Pressure | 16MPa |
| Arm digging force | 11.5kN |
| Max. Digging Radius | 3860mm |
| Max. Digging Depth | 2050mm |
| Max. Digging Height | 3370mm |
| Max. Dumping Height | 2390mm |
| Min. Swing Radius | 1125mm |
| Overall Length | 3800mm |
| Overall Width | 1050mm |
| Overall Height | 2280mm |
| MAX Dozer Cutting | 270mm |
| MAX Dozer Lifting | 235mm |
