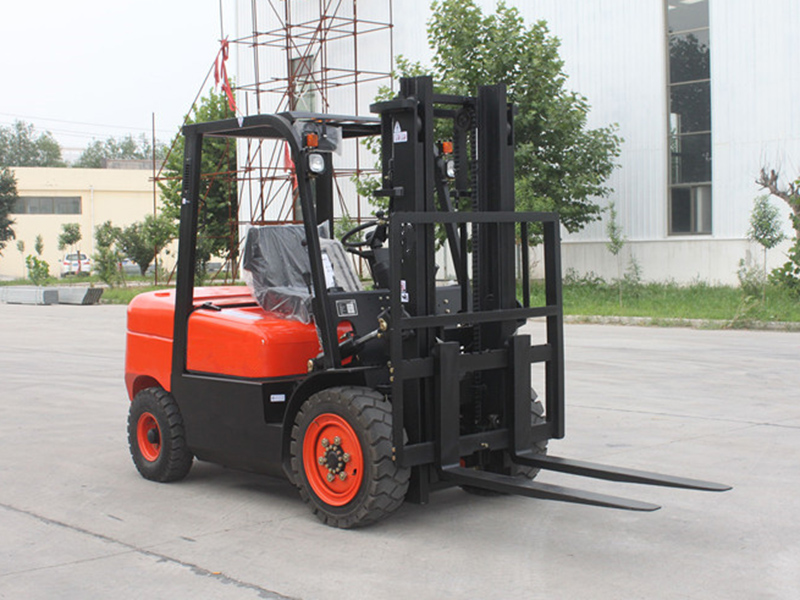

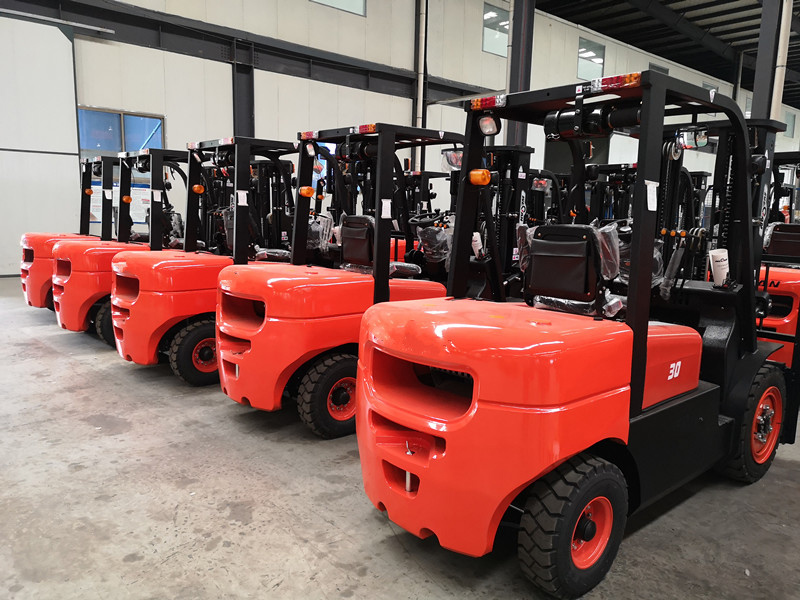

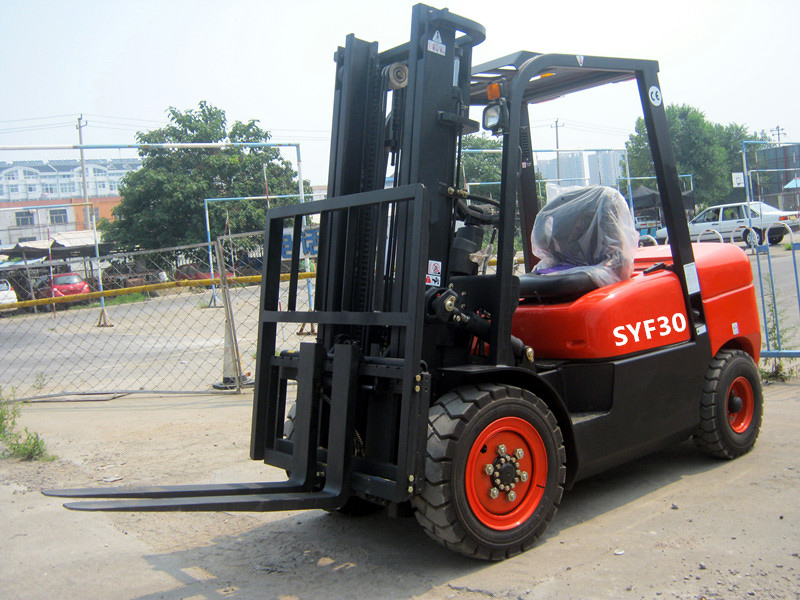

SYNBON 3.0 tons diesel forklift truck SYF30
Description
Operate weight：3.0 Ton
Lifting height：3000mm
Service weight: 4300kg
Overall size : 3800*1230*2110 mm
Features & Details
Application industries: warehousing, manufacturing, post offices, libraries, ports, terminals and airports, tobacco, medicine, food, chemicals, hazardous locations and special industries
Specifications
Main specification: | CHINA QUANCHAI/xinchai 490 ENGINE;AUTOMATIC TRANSMISSION;1220MM fork;3-stage 3000MM mast;PNEUMATIC tire;WARNING AND REAR LIGHT. | ||
Model | SYF30 | ||
Rated capacity | 3000 | kg | |
Load center | 500 | mm | |
Power type | Diesel | ||
Transmission | Automatic | ||
Dimensions | Lifting height | 3000 | mm |
Free lifting height | 80 | mm | |
Turning radius | 2500 | mm | |
Overall length | 3800 | mm | |
Overall width | 1230 | mm | |
Overall height (mast lowered) | 2110 | mm | |
Overall height (mast raised) | 4270 | mm | |
Overall height (overhead guard) | 2110 | mm | |
Fork length | 1370 | mm | |
Fork width | 150 | mm | |
Fork thickness | 50 | mm | |
Performance | Max. driving speed(with/without load) | 18/20 | km/h |
Max. lifting speed(with load) | 400 | mm/s | |
Max. traction(with/without load) | 15.5/10.5 | kn | |
Gradeability(with/without load) | 15/20 | % | |
Tilting angles (forward/backward) | 6/12 | ° | |
Service weight | 4320 | kg | |
Engine | Engine model | China 490 engine | |
Power | 39/40 | kw | |
Rated speed | 2650 | rpm | |
Displacement | 2.67 | L | |
No. of cylinder | 4 | ||
Wheel | Front overhang | 465 | mm |
Wheel base | 1700 | mm | |
Front tread | 1000 | mm | |
Rear tread | 970 | mm | |
Front tire | 28x9-15 | ||
Rear tire | 6.50-10 | ||
