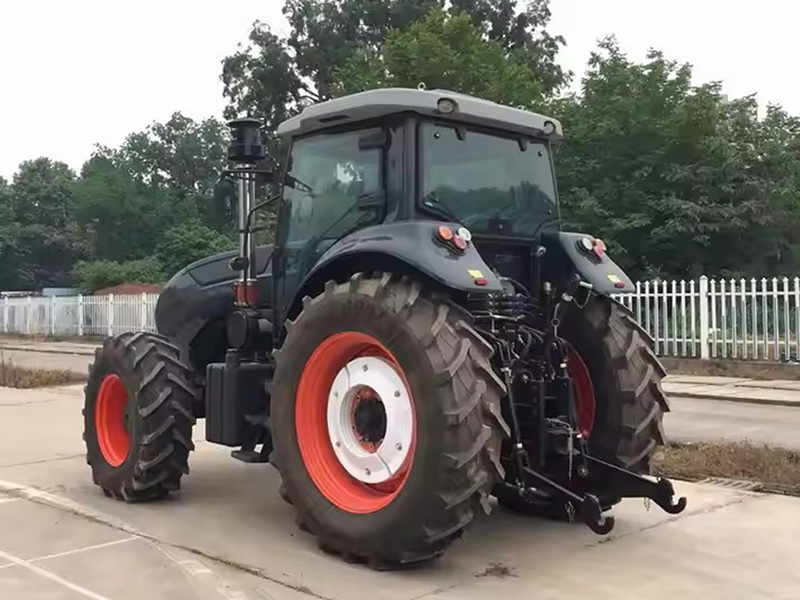

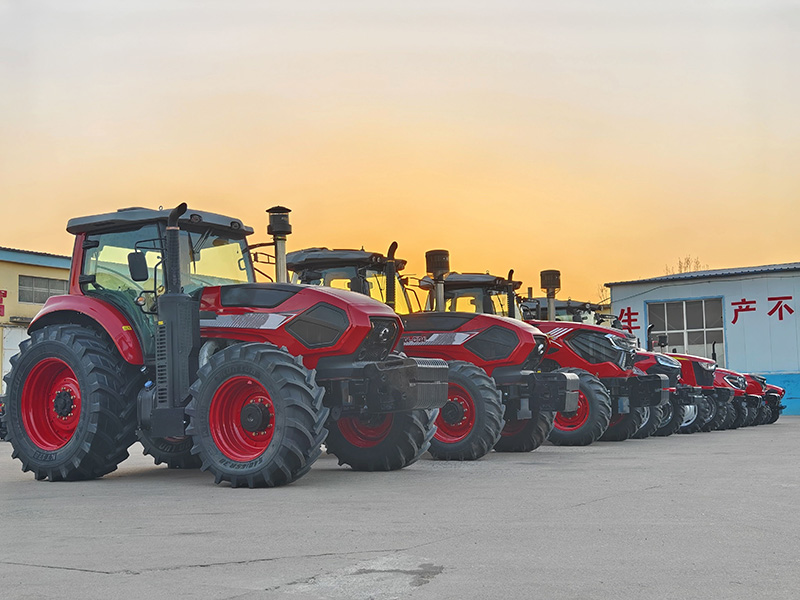

SYNBON 220HP TRACTOR SY2404
Description
SYNBON 150HP farm tractor
4*4 ， 150hp，16F+8R Shifts,farm tractor
Description：
4WD
Power：150hp/111.9kw
Type: 13.6-24 /16.9-34
Weight: 4280kg
Overall size : 4925*2300*2850 mm
Features & Details
150HP 4WD,Weichai Six-cylinder engine,16+8 gearbox, 14'' clutch,Dry type double action constantly connecting, Cycloid Rotary Valve Full Hydraulic Steering, front tire 13.6-24 rear tire 16.9-34, PTO speed 540/1000rpm,front and rear ballast.luxury hot cab.Two sets of hydraulic outputs.
Specifications
Model | SY1504 | |||
Type | 150HP 4WD | |||
Size (mm) | Length | 4925 | ||
Width | 2300 | |||
Height | 2850 | |||
Wheel Tread | Front Wheel | 1650/1850/1950(step adjustable) | ||
Rear Wheel | 1700-2300(stepless adjustable) | |||
Wheel Tread | 2660 | |||
Ground Clearance | 425mm | |||
Structure weight (kg) | 4280 | |||
Engine | Model | Weichai engine WP6G140E311 | ||
Type | In-line, Water-cooled, Four Strokes | |||
Rated Power(kw) | 103kw | |||
Rated speed(r/min) | 2200 | |||
Fuel | Diesel | |||
Tire | Front Wheel | 13.6-24 | ||
Rear Wheel | 16.9-34 | |||
Clutch | 14'' clutch,Dry type double action constantly connecting | |||
Steering | Cycloid Rotary Valve Full Hydraulic Steering | |||
Transmission Type | 16F+8R | |||
Suspension Type | 3-point links | |||
PTO | Type and speed | 540/1000rpm,760/850rpm,760/1000rpm | ||
Spline Size | 35 Spline 6 teeth | |||
